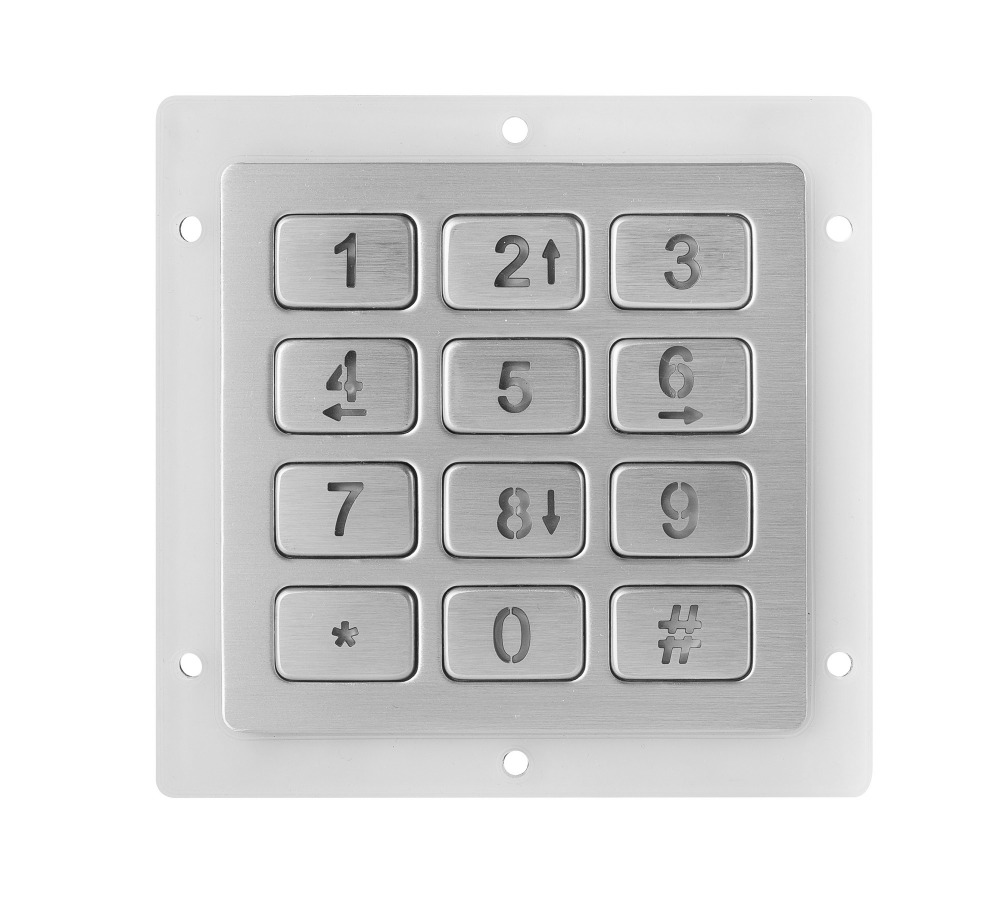

12 keys IP67 vandal proof metal mini numeric backlighting keypad

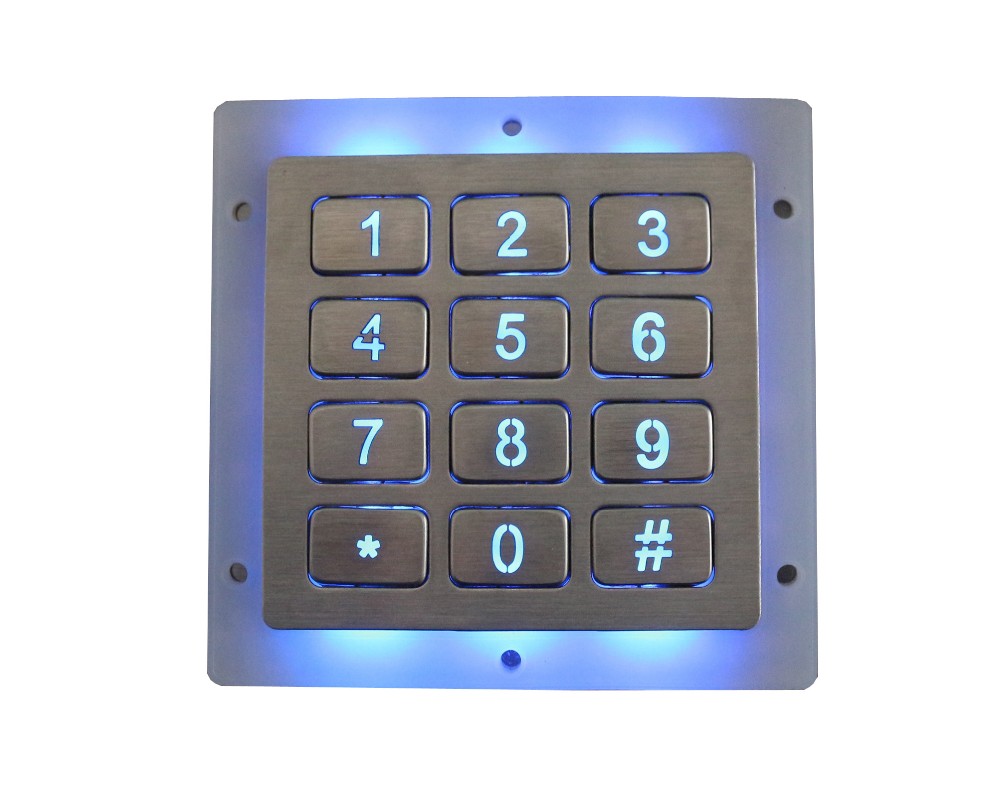

12 keys compact format IP67 dynamic water proof and vandal proof and Stainless Steel industrial keypad with industrial metal dome PCB electronics controller shieded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel.Industrial Backlight (red/blue/white/green optional) included.
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
MECHANICAL DATA
Actuator/keys: 12 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 21.0mm for normal keys
Key travel: 0.45mm
Actuation Force: 2.0N+/-0.1N for key 14.0mm x 21.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel

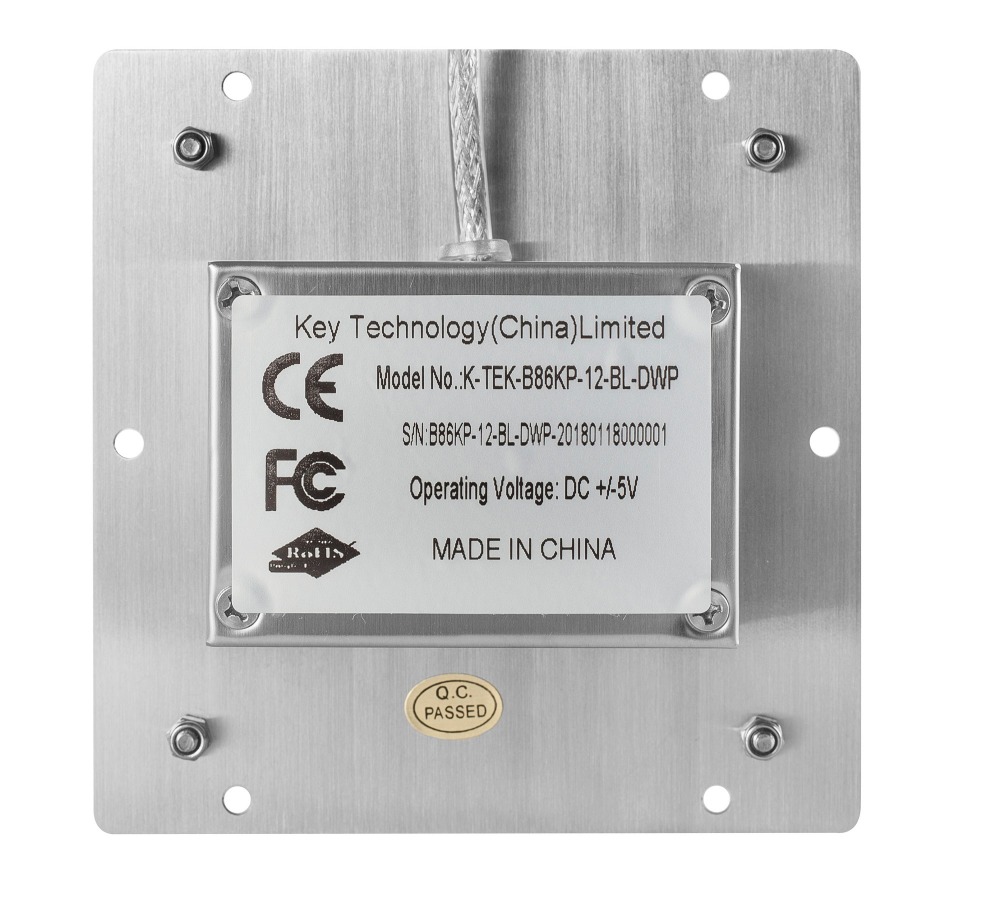

Back Stainless steel housing: 1.0mm thickness super quality stainless steel
G.W.: 0.60KGs
Dimensions: 86.0mm x 89.0mm (L x W )
