38mm IP65 mechanical stainless steel trackball module
K-TEK-38-MTB
minimum order
1 set
Supply Ability
3000.0set / Month
Country of Origin
Shen Zhen and HK
Quantity

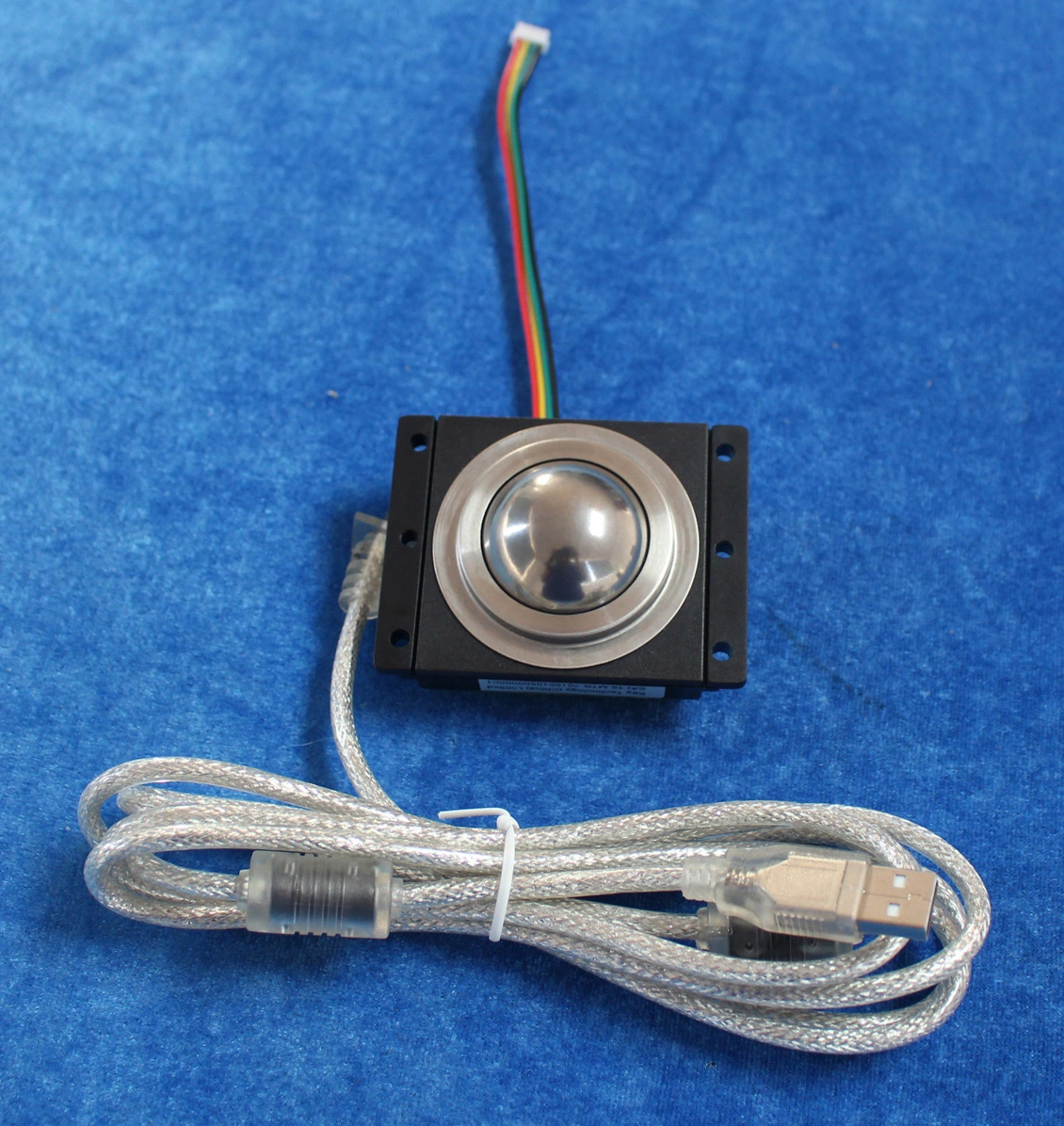

38.0mm (1.5‘) vandal proof IP65 (static) mechanical trackball module,with stainless steel back panel, harden resin ball also available.
MAIN FEATURE
- Stainless steel back panel for the module that can get more vandal-proofperformance
- Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
- Available 40mm, 38mm, 25mm, 22mm, 19mm and 16mm diameter stainless steel or hard phenolic resin ball for smooth, durable operation and precise cursor positioning.
- Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly. .
TECHNICAL SPECIFICATION
| ITEM | SPECIFICATION | |
| Mechanical Data | Ball diameter | 38mm/1.50' (19mm, 25mm, 36mm 40mm also available) |
| Track ball lifespan | > 5 Mio revolutions | |
| Actuation Force | 1.0N to 3.0N | |
| Dimension | 38 .1 mm diameter for ball, 57.0mm x 74.0mm (front panel) | |
| Interface | PS2, USB are available, Y type cable with ports of PS2 and USB | |
| Electrical | Power supply | 5V DC+10% |
| Protection level | IP65 (static), NEMA3 | |
| EMC Standard | EN55022(B) | |
| Power consuming | ≤1.00W(dynamic) | |
| ≤0.2W(static) | ||
| Environmental | Operating temperature | -20ºC~+ 60º C |
| Storage temperature | - 30ºC~+ 70ºC | |
| Operating RH | 30~90% | |
| Atmospheric pressure | 60~106Kpa. | |
| Reliable | Certificates | RoHS compliant, CE and FCC certified. |
| MTBF | >20000h | |
| MTTR | < 30min | |
| OS | DOS/Windows95/98/NT/ME/2000/2003/XP/Vista/WIN7, Linux, Unix, Mac OSX | |
| Packing Details | Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton. | |
