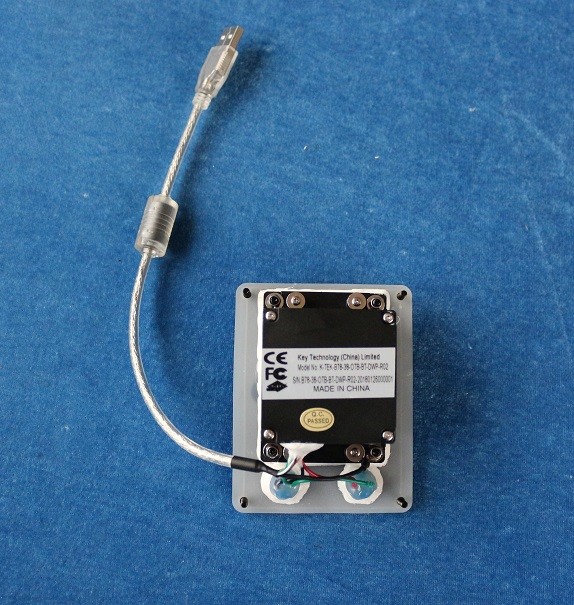

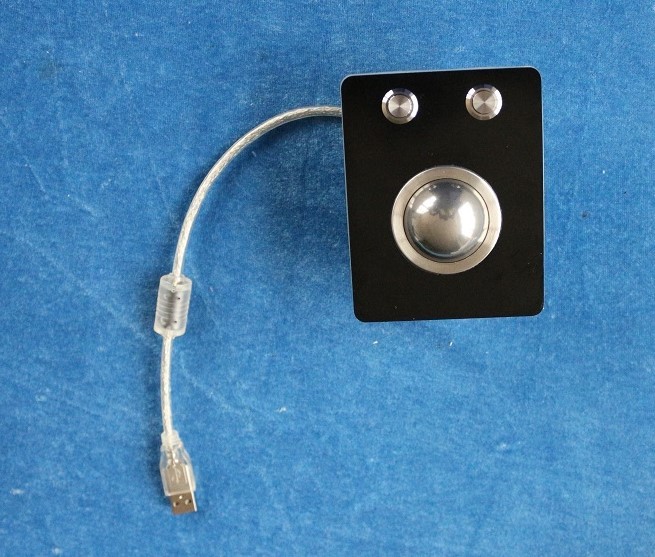

38mm IP67 black titanium vandal proof Industrial optical waterproof trackball mouse
DESCRIPTION: IP67 dynamic rated compact format vandal proof stainless steel optical trackball with IP67 dynamic sealed & ruggedized stainless mouse buttons and IP68 dynamic rated washable 38.0mm hardened resin optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, stainless steel trackball optional, with rubber sealing gasket under top stainless steel plate for easy sealing and tightly mounting with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution. High quality durable black titanium electroplated on the top stainless steel plate with threaded bolts for top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 78.0mm x 100.0mm (top panel)
Product Name | IP67 black titanium vandal proof optical inut devices trackball mouse |
Certificates | RoHS compliant, CE and FCC certified. |
Dimension | Dimensions with 38mm track ball, Front plate (W x H): 83.0 x 110.0mm, Back panel (W x H ): 107.0 x 134.0mm |
Layout | US Standard or Other customized layout |
Trackball lifespan | more than 5 million actuations |
Front Plate | Quality brushed stainless steel |
Key Top Style | protuberant rectangular keys, with laser engraved and etched legends and raised dots available. |
Operation Temperature | -20ºC~+ 60º C |
MAIN FEATURE
The trackball module can be dynamic washable with water and other liquids, it can work well even under water with 2.0mm depth after 8 hours dynamic water proof testing.
Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
All Metal Mechanicals provide for rugged, smooth, long lasting and no noisy operation.
Available 38mm diameter Stainless steel optical Trackball for smooth, quick and durable operation and precise cursor positioning without any noise.
Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
Can be mounted horizontally, and vertically.
No metal bearings inside, operation is very smooth, and easy without any noise.
MECHANICAL DATA
Key: 2 keys, IP67 dynamic quality stainless steel button
Key top style: sealed round stainless steel buttons with tactile feeling
Front Plate: Quality brushed black titanium electroplated stainless steel
Key Travel: 1.00 mm
Ball diameter: 38.1mm/1.50"(19mm, 25mm, 36mm 40mm also available)
Key switch lifespan: more than 5 Mio actuations
Track ball lifespan: > 5 Mio revolutions
Actuation Force: 1.0N to 3.0
Mounting Rack: top stainless steel plate with mounting screw bolts
Dimensions: with 38mm trackball
Front plate(W x H): 78.0mm x 100.0mm
