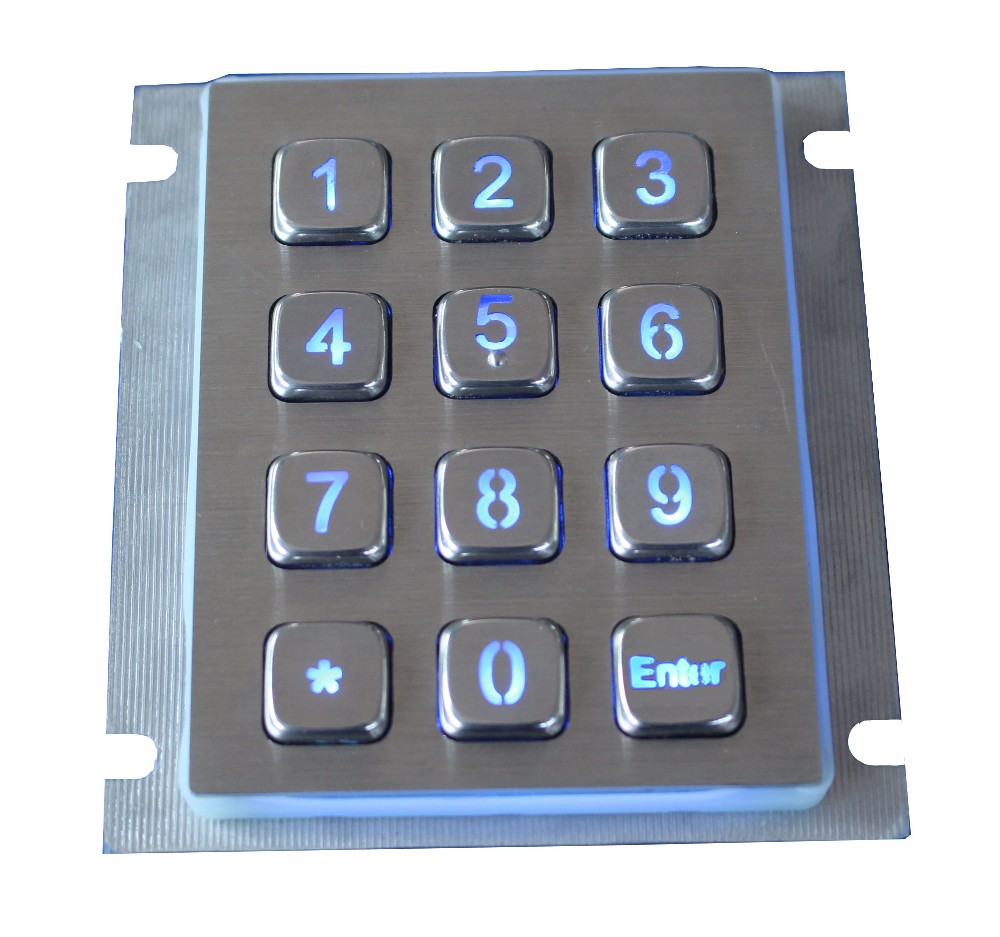

4x3 industrial illuminated usb backlit programmable keypad
K-TEK-A68KP-BL-DWP
minimum order
1 piece
Supply Ability
3000.0piece / Month
Country of Origin
Shenzhen Port
Quantity
Product Description
12 keys compact format IP67 dynamic water proof and vandal proof stainless steel industrial keypad with fully sealed industrial PCB with industrial electronics controller shielded & protected by stainless steel housing, with industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel.Industrial Backlight (red/blue/white/green) included.
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
Product Name | 4x3 industrial illuminated usb backlit programmable keypad |
Material | stainless steel |
Key Size | 14.0mm x 14.0mm for normal keys |
Layout | US Standard or Other customized layout |
Switch Life | more than 5 million of operations |
Key Travel | 0.45mm |
Key Top Style | Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Used | industry, military, marine, and etc. |
Products Show
Data and Advantage
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
COMMUNICATION PARAMETER
PS2/USB:
Standard PS2/USB keyboard interface.
12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code
Any customized layout/codes are available upon customers' requirements
RS232:
Standard RS232 serial interface.
Communication velocity: 9600bps.
Data format: N, 8, 1.
12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code, 3 x 4 scanning code.
Any customized layout/codes are available upon customers' requirements
Standard PS2/USB keyboard interface.
12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code
Any customized layout/codes are available upon customers' requirements
RS232:
Standard RS232 serial interface.
Communication velocity: 9600bps.
Data format: N, 8, 1.
12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code, 3 x 4 scanning code.
Any customized layout/codes are available upon customers' requirements
