4x3 waterproof stainless steel keyboard numeric keypad

K-TEK-A68KP-DWP

minimum order

1 piece

Supply Ability

3000.0piece / Month

Country of Origin

Shenzhen Port

Quantity

Contact Now

add to cart

Product Description

12 keys compact format IP67 dynamic waterproof and vandal proof stainless steel industrial keypad with fully sealed industrial PCB with industrial electronics controller shielded & protected by stainless steel housing, with industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear stainless steel plate with mounting holes and water-tight gasket for easy mounting and tightening to enclosure or panel. Industrial Backlight (red/blue/white/green) optional.

Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion

Product Name	4x3 waterproof stainless steel keyboard numeric keypad
Front Plate	1.5mm thickness super quality brushed stainless steel
Key Size	14.0mm x 14.0mm for normal keys
Layout	Customized layout is acceptable
Switch Life	more than 5 million of operations
Key Travel	2.0mm
Key Top Style	protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
Gross Weight	0.6 kg

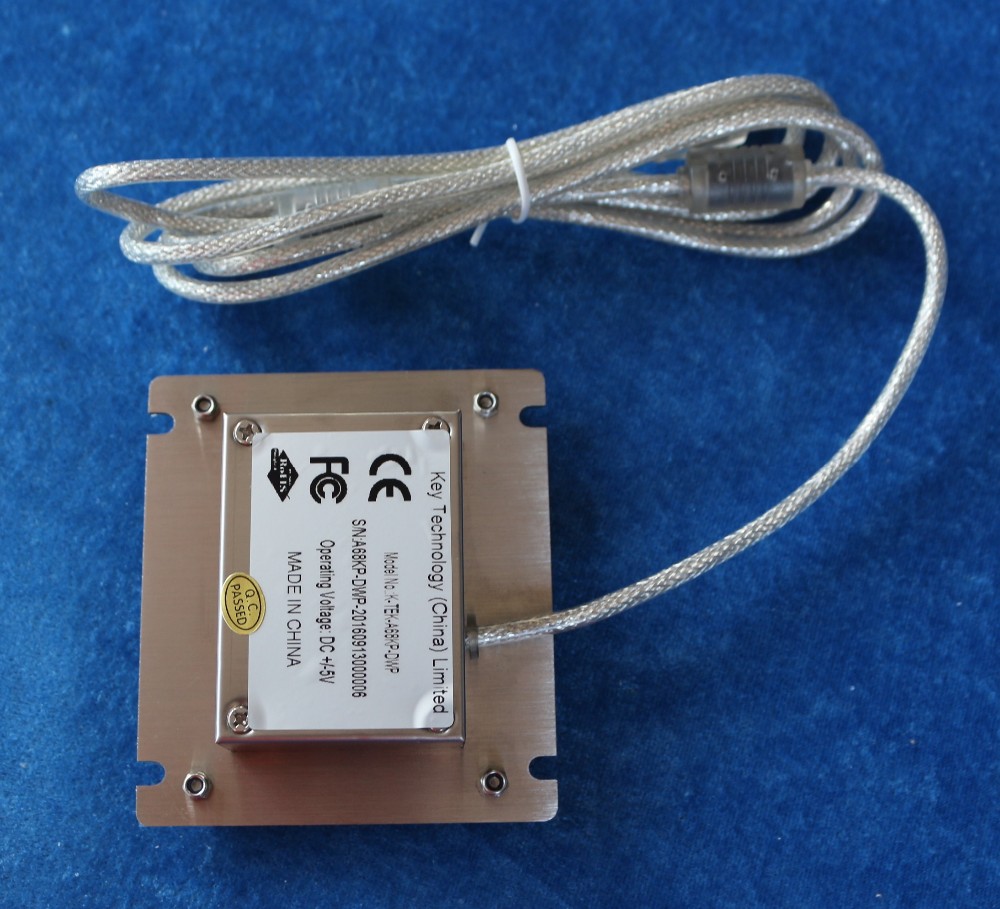

Products Show

Data and Advantage

COMMUNICATION PARAMETER

PS2/USB:
Standard PS2/USB keyboard interface.
12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code
Any customized layout/codes are available upon customers' requirements

RS232:
Standard RS232 serial interface.
Communication velocity: 9600bps.
Data format: N, 8, 1.
12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code, 3 x 4 scanning code.
Any customized layout/codes are available upon customers' requirements

MECHANICAL DATA

Actuator/keys: 12 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style: protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys
Key travel: 2.0 mm
Actuation Force: Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point),
Switch life: more than 5 million of operations.

Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Stainless steel housing: 1.0mm thickness super quality stainless steel
G.W.: 0.60KGs
Dimensions: 68.0mm x 90.0mm (L x W)
