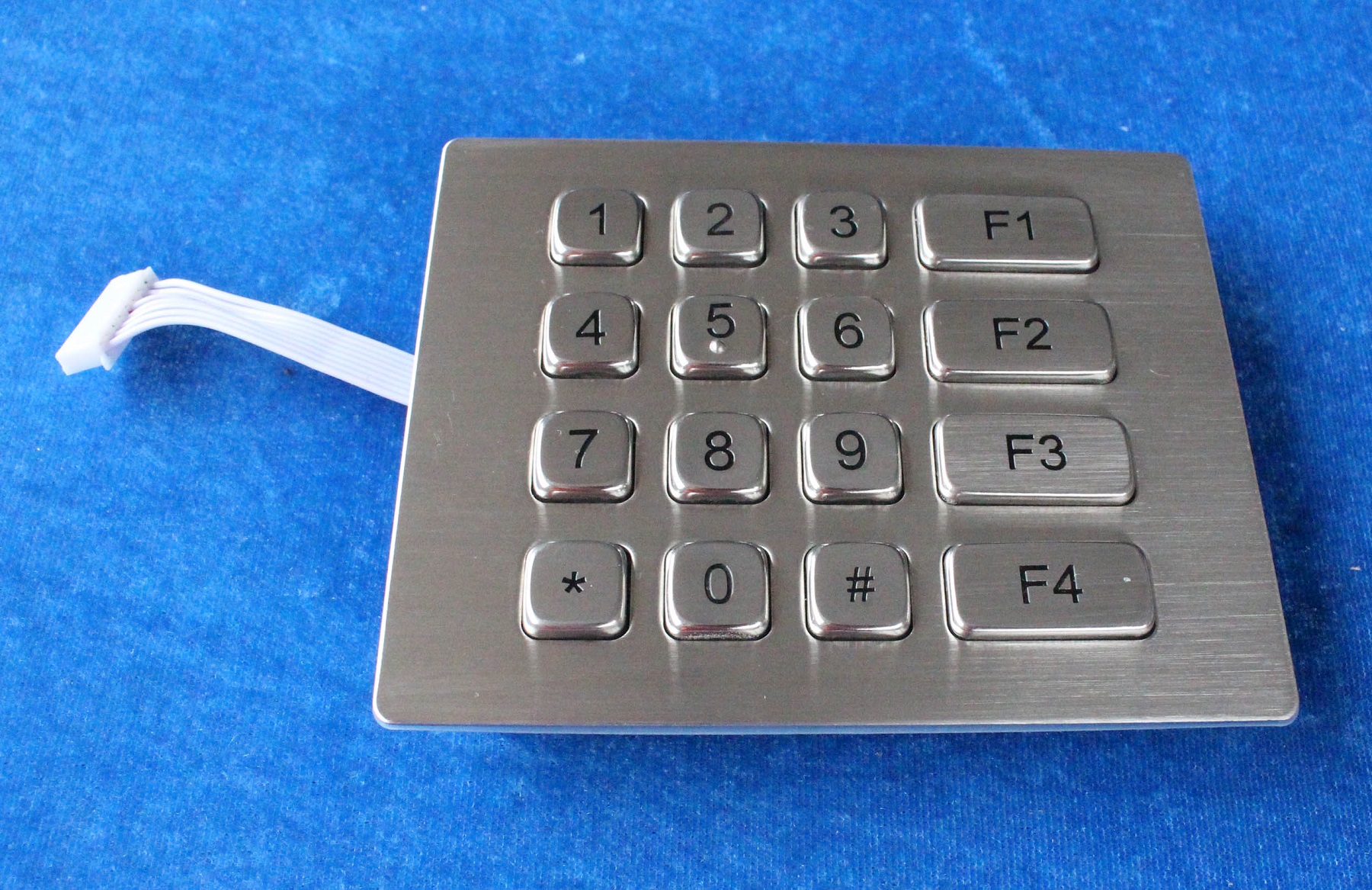

4x4 16keys mini kiosk metal outdoor vandal proof numeric keypad

K-TEK-A120KP-AC-DWP

minimum order

1 piece

Supply Ability

3000.0piece / Month

Country of Origin

Shenzhen Port

Quantity

Contact Now

add to cart

Product Description

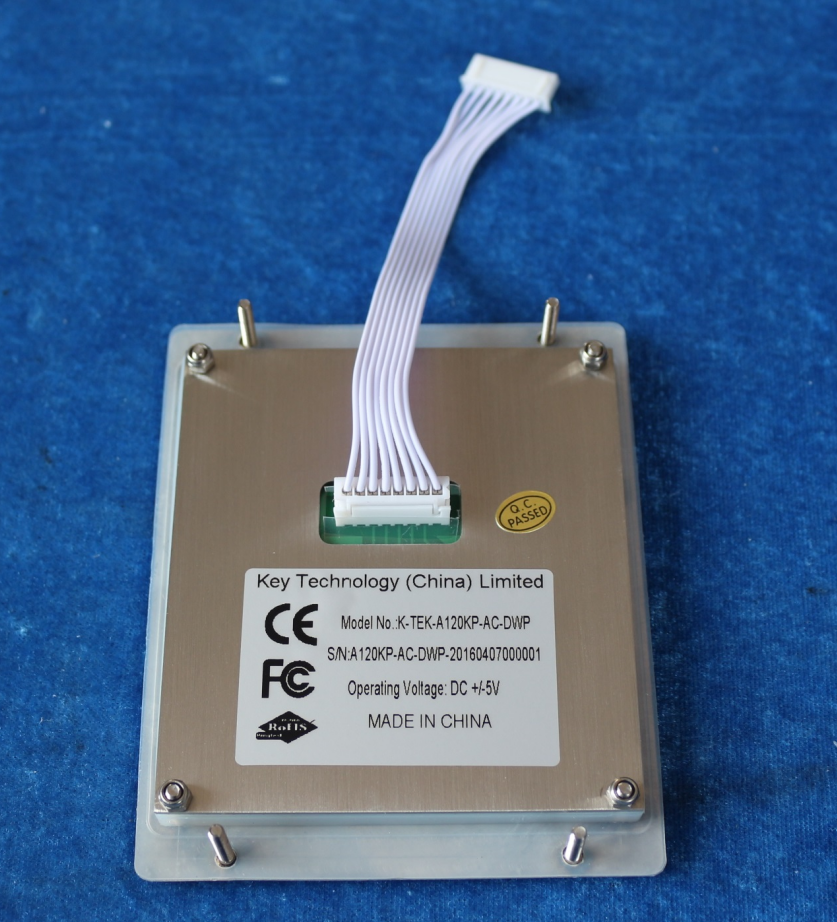

DESCRIPTION: 16 keys compact format IP67 dynamic waterproof vandal proof Stainless Steel industrial matrix keypad with industrial PCB with socket on the back panel for connecting electronics controller, with industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, top stainless steel plate with welded studs for top panel mounted, with sealing gasket for easy and tight sealing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc.

DIMENSIONS: 120.0mm x 98.0mm (top panel)

APPLICATION
This Keyboard is mainly targeted for use for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc. positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

Product Name	4x4 16keys mini kiosk metal outdoor vandal proof numeric keypad
Front Plate	Super quality SUS304 brushed stainless steel
Key Size	14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys
Layout	US Standard or Other customized layout
Switch Life	more than 5 million of operations
Key Travel	2.0mm
Key Top Style	protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
Used	industry, manufacturing factories and etc.

Products Show

CUSTOMIZED LAYOUT

Data and Advantage

MECHANICAL DATA
Front plate: Super quality SUS304 brushed stainless steel

Back plate: Super quality SUS304 stainless steel

Actuator/Key: 16 keys, super quality SUS304 brushed stainless steel

Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available.

Key size: 14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys

Switching material: Carbon-on-Gold.

Actuation Force: 0.6N +/-0.1N (pressure point), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Key Travel: 2.0mm.

Key life: 5 million of operation

Dimensions: 120.0mm x 98.0mm.

G.W. 0.50KGs.

ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%

Current Rating: appr. 30mA

Lifespan > 5 years

Switch Contact Material: Carbon-on-Gold key switch technology PCB.

OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC

Storage temperature: -30oC to +70oC

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40oC: 21 days, IEC 60512-6

Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY
RoHS Compliant, CE and FCC, ESD

Protection Level: IP67(front panel)

Vandal resistant IK08

Key Lifespan >5 million actuations

MTBF >20000H

MTTR<30min
