Black Metal Industrial Touchpad Panel Mount for Public Access Kioisk
Black Metal Industrial Touchpad Panel Mount for Public Access Kioisk
MODEL NO.:K-TEK-B107TP-BT
DESCRIPTION:IP65 dynamic Sealed and Ruggedized Tough Touchpad for fast and accurate
cursor position, with 2 raised IP65 dynamic sealed stainless steel mouse buttons under touchpad,the electronics controller module shielded and protected with stainless steel housing,high quality durable black titanium electroplated on the top stainless steel plate,stainless steel top plate with threaded bolts for top panel mounting solution.
DIMENSIONS: 107.0mm x 120.0mm (top panel)
Specifications:
ITEM | SPECIFICATION | ||
Mechanical | Front Plate | Quality brushed black stainless steel | |
Touchpad thickness | 1.3 mm PCB thickness inclusive of mylar layer | ||
Validated touch width | 46.50mm (max) | ||
Validated touch length | 62.50mm (max) | ||
Mounting Rack | Aluminum alloy | ||
Back Metal Cover | Rear side integrated electronics protected by a metal cover | ||
Touchpad lifespan | > 5 Mio times | ||
Dimensions | Touchpad: 65.0mm x 49.0mm; | ||
Interface | PS2 and USB both available | ||
Electrical | Power supply | 5V DC+10%, | |
Work current | 4.0 mA (normal) | ||
X/Y position sensing resolution | 1000 points/inch (40 points/mm) | ||
X/Y position reporting: | Relative | ||
Tracking speed: | Maximum 1,016 m/sec | ||
Protection level: | IP65 (front panel) | ||
Static Release: | 15 KV (front panel) | ||
EMC Standard: | EN55022(B) | ||
Environmental | Operating temperature: | -20°C to +60°C | |
Storage temperature: | - 30°C to + 70°C | ||
Operating RH: | 10%-90% | ||
Atmospheric pressure: | 60-106Kpa | ||
Reliability | MTBF | >20000h | |
MTTR | < 30min | ||
Touchpad Lifespan | >10 million actuations | ||
OS | OS is under All windows, Linux, Unix, Mac OS9 / OSX | ||
Packing Details | Each unit to a suitable inner box, suitable brown inner boxes to a standard export carton. | ||

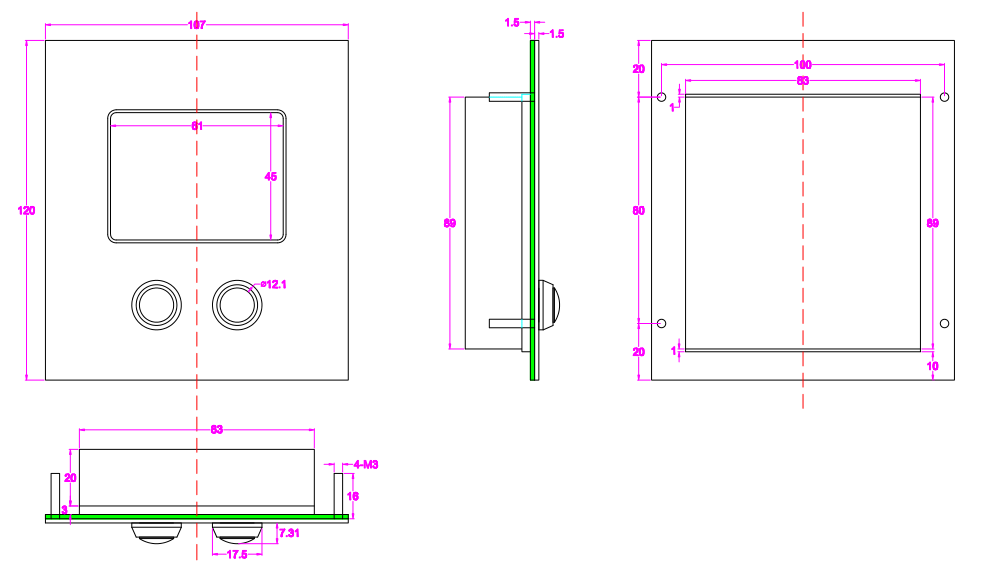

Mechanical Drawing:
