Dusty proof stainless steel metal keyboard with numeric keys and FN keys
K-TEK-B340KP-FN-DWP
minimum order
1 piece
Supply Ability
3000.0piece / Month
Country of Origin
Shenzhen Port
Quantity
Product Description
96 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial metal dome PCB with gold-on-gold key switch technology with short stroke with 12 function keys(F1, F2..F10, F11, F12) on the top panel for easy operation,0.45mm with excellent tactile feeling for stable and accurate data input, with integrated numeric keypad, and stainless steel top plate with threaded bolts and water-tight gasket for easy & tightened sealing, with top panel mounting solution.Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 340.0mm x 145.0mm ( Front panel)

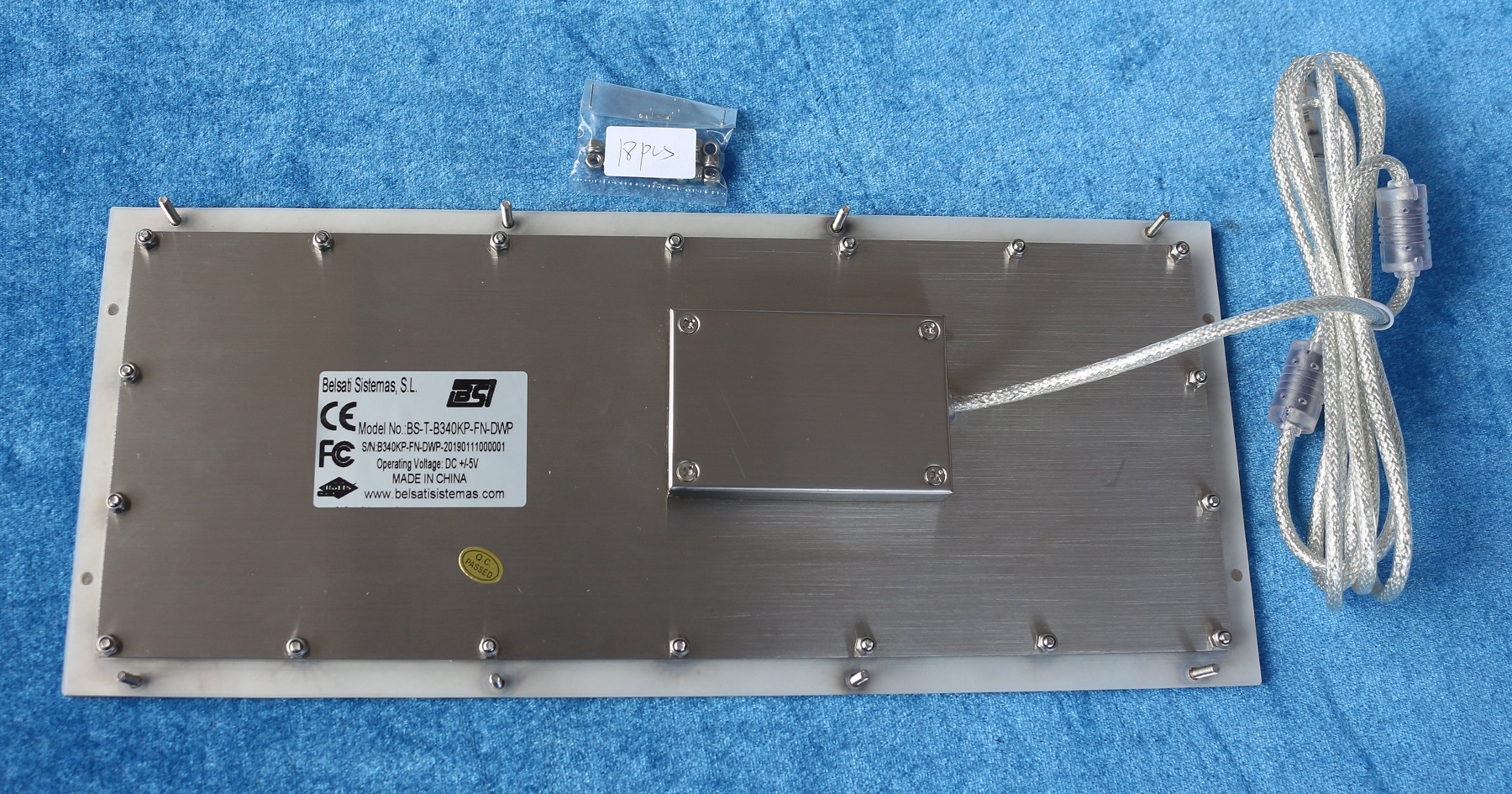

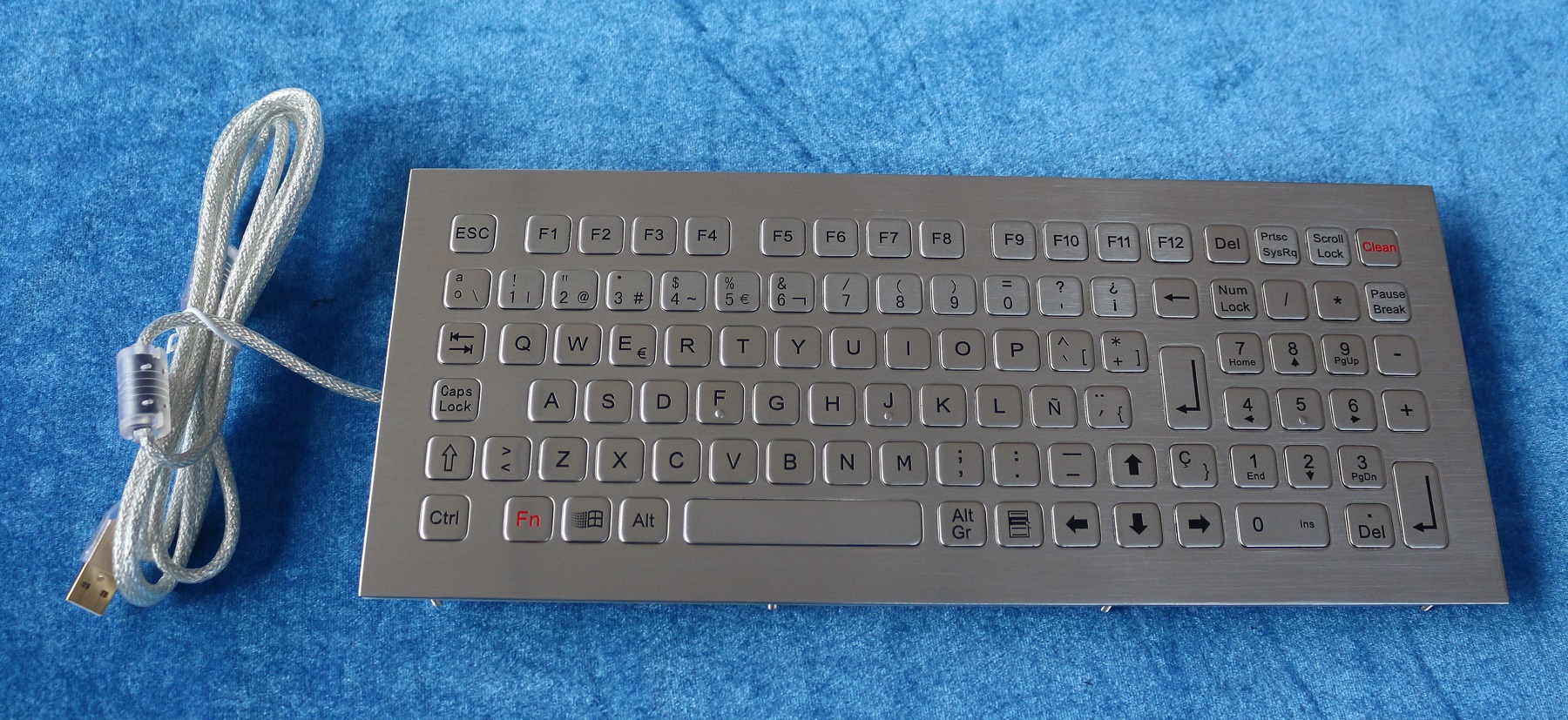

Products Show
MECHANICAL DATA
* Actuator/keys: 96keys, 5mm thickness super quality SUS304 brushed stainless steel flat key.
* Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
* Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70mm for space bar.
* Key travel: 0.45mm
* Actuation Force: 2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) , 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
* Switch life: more than 1million of operations.
* Front Plate: 1.5mm thickness super quality brushed stainless steel
* Back Plate：0mm thickness super quality brushed stainless steel
* W.: 1.40KGs
* Dimensions: 340.0mm x 140mm (Front panel)
ELECTRICAL DATA
* Supply Voltage: +5V DC +/-5%
* Current Rating: appr. 30mA
* EMC Standard: EN 55032:2015, EN 55035:2017
* Lifespan > 5 years
* Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
* Interface: PS2, USB available
* OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
* Operating temperature:-20oC to +60oC
* Storage temperature: -30oC to +70oC
* Operating RH: 30-90%
* Atmospheric pressure: 60-106Kpa.
* Saline mist: 96 hours, IEC 60512-6
* Damp heat test at + 40oC: 21 days, IEC 60512-6
* Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
* RoHS Compliant, CE and FCC, ESD
* Protection Level: IP67
* Vandal resistant IK09
* Key Lifespan >1million actuations
* MTBF >20000H
* MTTR <30min
* Actuator/keys: 96keys, 5mm thickness super quality SUS304 brushed stainless steel flat key.
* Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
* Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70mm for space bar.
* Key travel: 0.45mm
* Actuation Force: 2N+/-0.1N for key 14.0mm x 14.0mm (pressure point) , 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
* Switch life: more than 1million of operations.
* Front Plate: 1.5mm thickness super quality brushed stainless steel
* Back Plate：0mm thickness super quality brushed stainless steel
* W.: 1.40KGs
* Dimensions: 340.0mm x 140mm (Front panel)
ELECTRICAL DATA
* Supply Voltage: +5V DC +/-5%
* Current Rating: appr. 30mA
* EMC Standard: EN 55032:2015, EN 55035:2017
* Lifespan > 5 years
* Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
* Interface: PS2, USB available
* OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
* Operating temperature:-20oC to +60oC
* Storage temperature: -30oC to +70oC
* Operating RH: 30-90%
* Atmospheric pressure: 60-106Kpa.
* Saline mist: 96 hours, IEC 60512-6
* Damp heat test at + 40oC: 21 days, IEC 60512-6
* Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
* RoHS Compliant, CE and FCC, ESD
* Protection Level: IP67
* Vandal resistant IK09
* Key Lifespan >1million actuations
* MTBF >20000H
* MTTR <30min
