FCC/CE/ROHS/IP68 special keyboard custom industrial backlight desktop silicone rubber keyboard

custom layout backlight ip68 washable trackball silicone keyboard

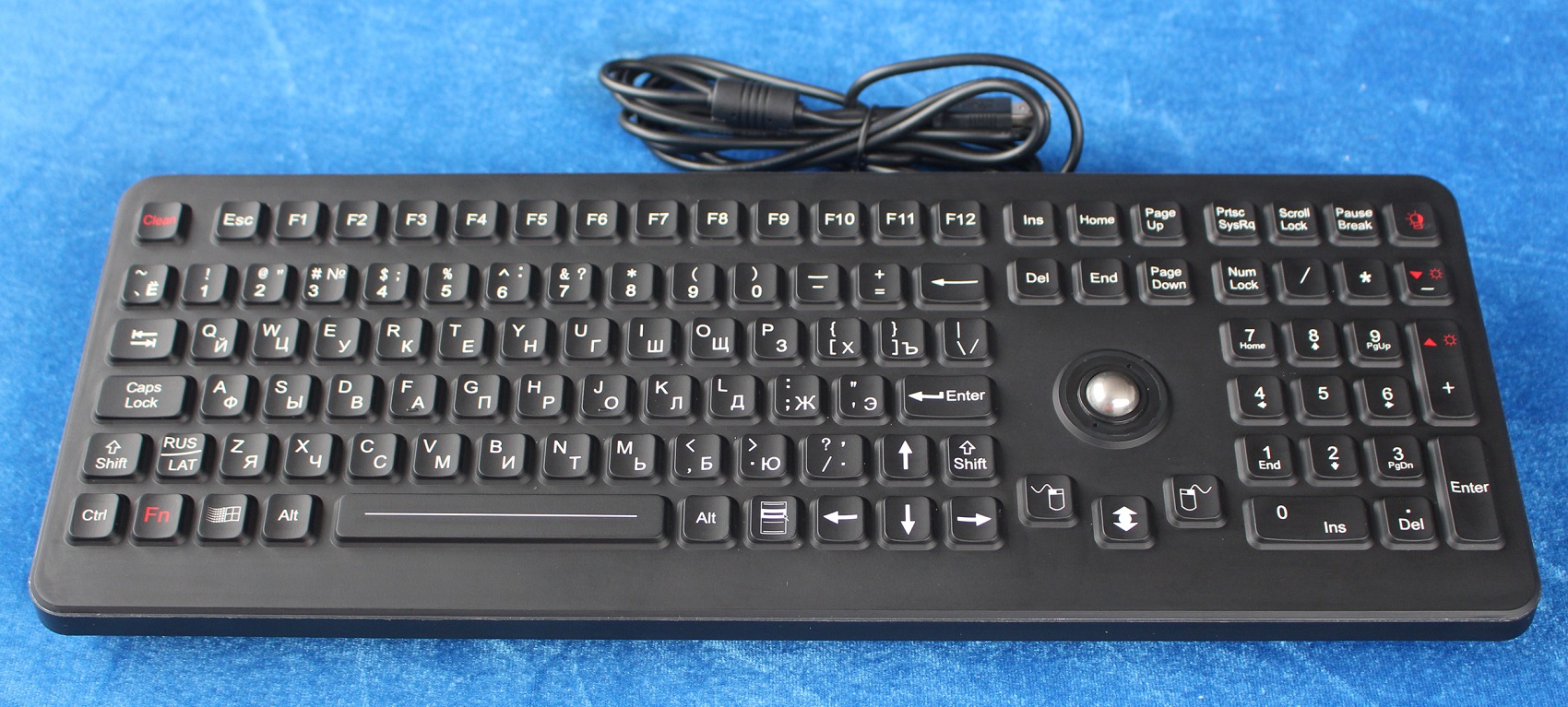

Description: 108 keys IP68 dynamic sealed & ruggedized silicone rubber industrial keyboard with full keyboard functionalities function keys, integrated numeric keypad, IP68 dynamic rated 16.0mm optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation, industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN combination key for easy cleaning via lock/disable the keyboard without needing to take away the keyboard from PC, VESA mountable desk top version with robust polycarbonate case, adjustable industrial backlight included.

APPLICATIONS:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
OTHER INDUSTRIES

MAIN FEATURE:
keyboard has NVIS-compliant red adjustable backlighting, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
The trackball pointing device is a completely sealed 38-mm laser unit, featuring a removable ball for convenient cleaning, as well as an adjustable tension ring. The trackball is operated using sealed switches with left and right click functions.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special dura-coating for excellent mechanical and chemical resistance
With firm tactile key feel, key travel 1.2mm.
Integrated numeric keypad.
Optical IP68 mouse available
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone

MECHANICAL DATA:
Key: 108 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Key Size: 12.0mm x 13.0mm for normal keys, 23.4.0mm x 13.0mm for enter key and space bar key.
Switch life: more than 5 million of operations.
Tracker ball: 38mm 1.5’ diameter.
Actuation Force: 0.8 N+/-0.1N for normal key with 12.0mm x 13.0mm(pressure point), 1.6 N+/-0.1N for key 23.4.0mm x 13.0mm (pressure point)
Cable Length: 2.5m
G.W.: 1.5KGs
Dimensions: 396.0mm x 150.0mm x 23.0mm (L x W x H)

ELECTRICAL DATA:
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY:
Operating temperature:-20oC to +60oC
Storage temperature: :-30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa
Saline mist: 96 hours, IEC 60512-6
Damp heat test at +40oC: 21 days, IEC 60512-6
Dry heat test at +85oC: 10 days, IEC 60512-6

RELIABILITY:
RoHS Compliant, CE and FCC
Protection Level: IP68
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
