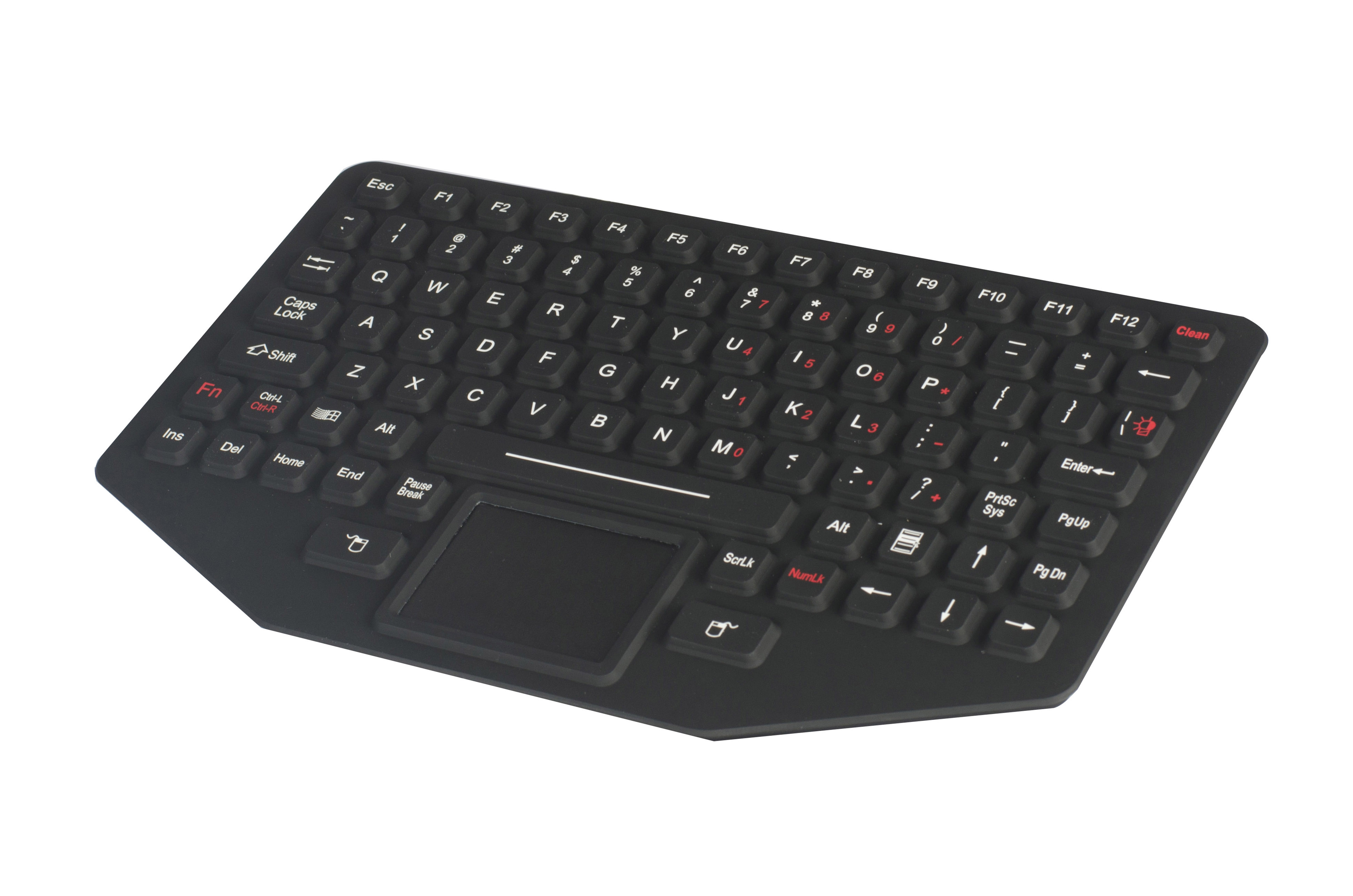

Industrial Backlit Silicone Rubber Laptop Keyboard with integrated touchpad
Model NO:K-TEK-M275TP-FN-OEM-BL-IL
DIMENSIONS: 283.00mm x 177.7.00mm (L x W )
DESCRIPTION:89 keys IP67 dynamic sealed and ruggedized silicone rubber Hygienic industrial keyboard with full keyboard functionalities with sealed & ruggedized tough touchpad for fast and accurate cursor position, 12 FN keys (F1, F2...F11, F12) are on top line for easy operation, with industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, FN + CLEAN key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, industrial PCB sealed and ruggedized with top rubber for top panel mounting, industrial level with adjustable backlight included. With optional stainless steel back plate sealed and ruggedized with top industrial silicone cover & industrial PCB for ruggedized structure and easy mounting and sealing, stainless steel housing protects the electronics controller.
Product Name | Industrial Backlit Silicone Rubber Vehicle Keyboards with integrated touchpad |
Material | silicone rubber |
Key size | 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key. |
Layout | US Standard layout or other customized layout |
Switch Life | more than 5 million of operations |
Key Top Style | Protuberant rectangular keys with tactile feeling |
Used | industry, military, vehicle, and etc. |

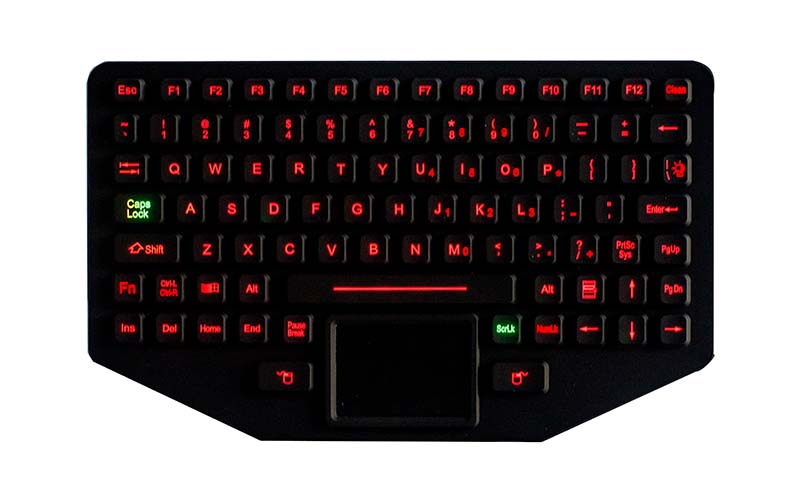

Standard US Layout Red Backlit
APPLICATIONS:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
MAIN FEATURES:
Keyboard with NVIS-compliant red adjustable backlighting, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality.
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
FN + Clean combination key-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime-User is notified of 'lock down mode' by brightly lit CLEAN KEY.
Special durable-coating for excellent mechanical and chemical resistance.
With firm tactile key feel, key travel 1.50mm key travel.
Integrated sealed and ruggedized tough touchpad.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Enclosure: industrial silicone and optional stainless steel back plate. Low-profile keys for easy cleaning
Key life: 5 millions
MECHANICAL DATA
Key: 89 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Touchpad cover: Composite
More than Lifetime 5 million strokes
Mutual Capacitance sensing
X/Y position sensing resolution: 40 counts/mm
X/Y position reporting: Relative
Output (self-detectable depending on cable): PS2 or USB
Tracking speed: Maximum 1,016 m/sec
Power supply voltage: 5 VDC ± 0.25V
Current rating (active mode): 17 mA
Key Size: 12.0mm x 13.0mm for normal keys, 23.4mm x 13.0mm for enter key, 68.0mm x 13.0mm for space bar key.
Cable Length: 2.50m
G.W.: 0.8KGs
Dimensions: 283.00mm x 177.7.00mm (L x W )
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA (non-backlight) , 150mA (with backlight on)
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan> 5 years

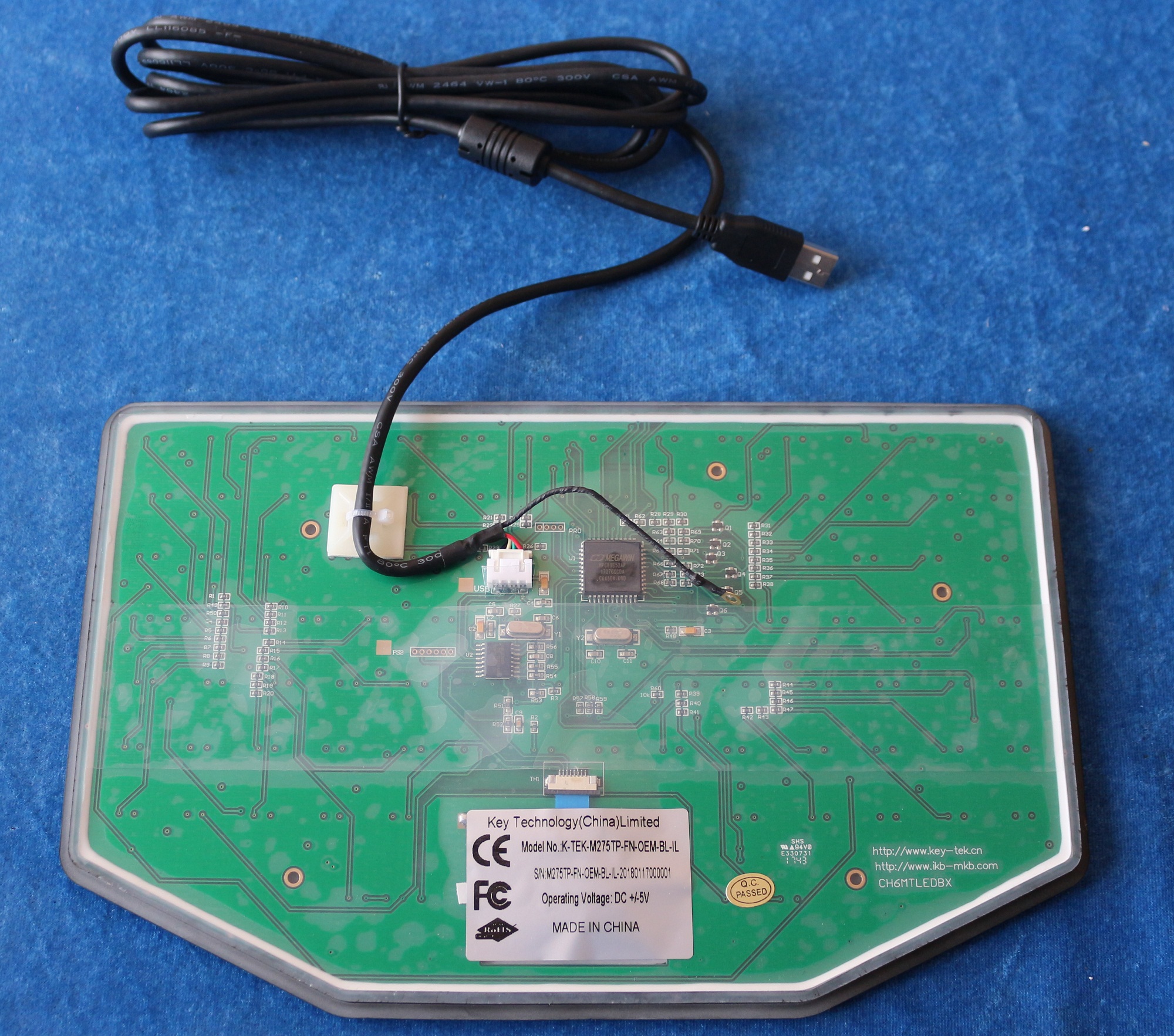

Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V
RELIABILITY
RoHS , CE, FCC, ESD
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
