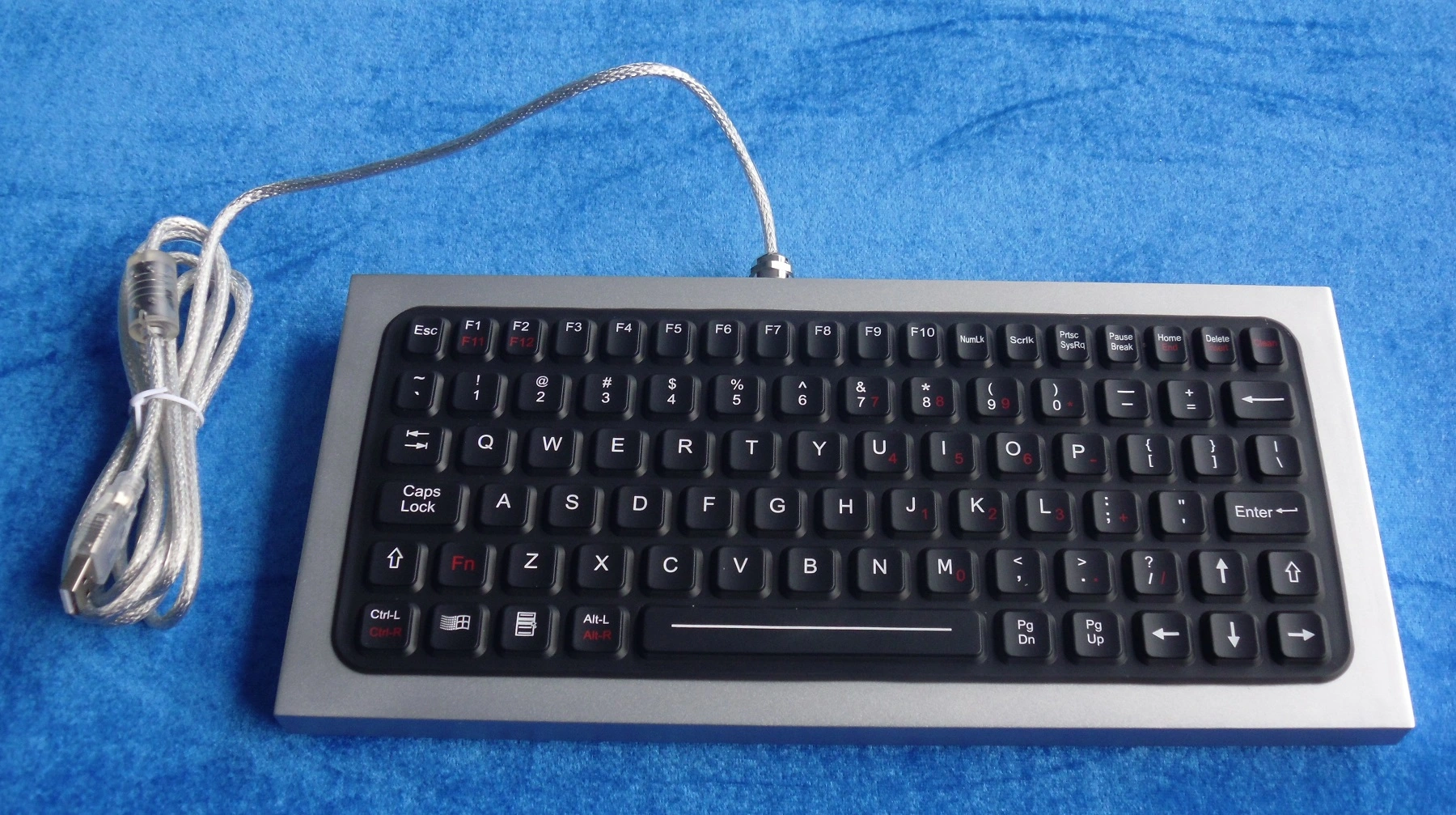

Industrial desktop silicone rubber keyboard with full keyboard and function keys
Industrial desktop silicone rubber keyboard with full keyboard and function keys
Model NO:K-TEK-M270-FN-IL-DT
Dimension:300.0mm x 142.9mm x 22.9mm (L x W x H)
Description:83 keys IP68 dynamic sealed & ruggedized industrial silicone rubber Industrial keyboard, 12 function keys and industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, with durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, Clean key for easy cleaning via lock/disable whole keyboard without needing to take keyboard from PC, stand alone desk top version with sealed aluminum metal housing with sand blasting & oxygenation surface treatment, adjustable industrial backlight optional. Military level optional.
APPLICATIONS:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
OTHER INDUSTRIES
MAIN FEATURES:
keyboard has NVIS-compliant red adjustable backlighting, while NVIS backlighting makes this keyboard ideal for aviation or vehicle applications where night vision goggles are necessary.
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquids to NEMA 4X, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special dura-coating for excellent mechanical and chemical resistance
Clean key
-Prevents data from being sent while the keyboard is wiped down, allowing user to clean at any interval with minimal downtime
-User is notified of ‘lock down mode’ by brightly lit CLEAN KEY
With firm tactile key feel, key travel 1.5mm.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.

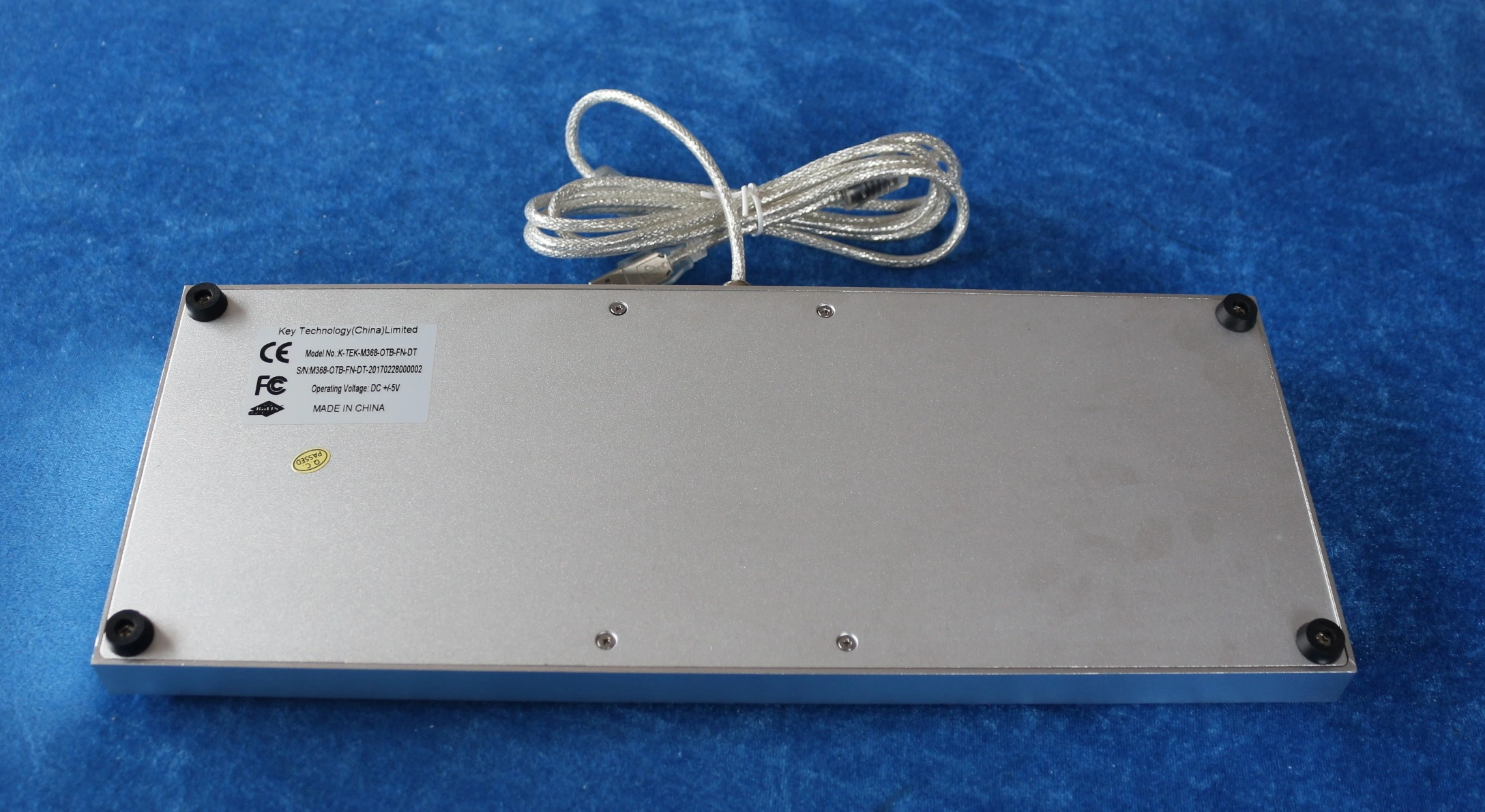

Enclosure: industrial silicone, Aluminum (rear side)
MECHANICAL DATA
Key: 83keys
Key top style: Protuberant rectangular keys with tactile feeling.
Key Size: 12.0mm x 13.0mm for normal keys, 23.40mm x 13.0mm for enter key and space bar key 82.0mm x 12.5mm
Switch life: more than 5 million of operations.
Cable Length: 2.5m
G.W.: 1.2KGs
Dimensions: 300.0mm x 142.9mm x 22.9mm (L x W x H)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 20mA (non-backlight), 140mA (with backlight on)
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: PS2, USB available.
OS: All windows, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: :-30oC to +70oC
Humidity: 100%
Atmospheric pressure: 60-106Kpa
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER
AXIS: 3 hours
Flammability
PRINTED CIRCUIT BOARD: 94 VOSILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 V
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP68, NEMA 6P
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
