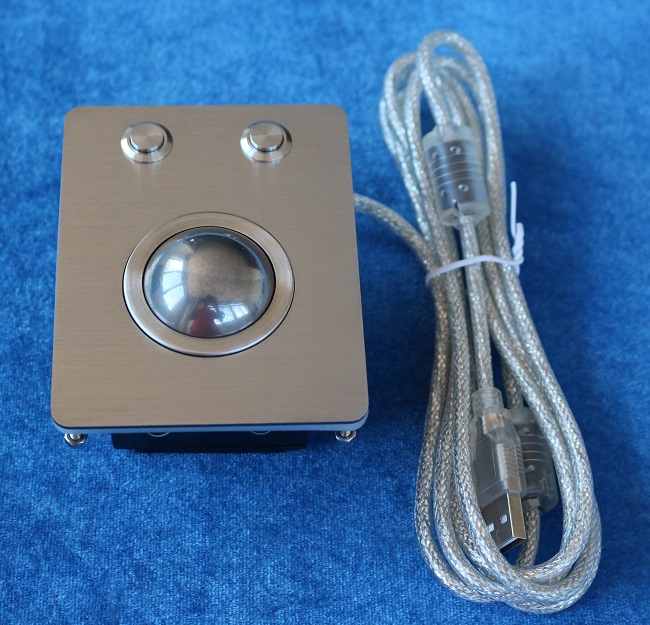

industrial IP67 ruggedized stainless steel ps2 optical wired trackballs mouse
IP67 washable waterproof vandal proof Stainless Steel industrial Trackball with IP68static 38mm stainless steel mechanical trackball module with 800 DPI resolutions, trackball module protected and shielded by stainless steel housing, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, top panel mounted with mounting studs.
Product Name | industrial IP67 ruggedized stainless steel ps2 optical wired trackballs mouse |
Certificates | RoHS compliant, CE and FCC certified. |
Dimension | Dimensions with 38mm track ball, Front plate (W x H): 83.0 x 110.0mm, Back panel (W x H ): 107.0 x 134.0mm |
Layout | US Standard or Other customized layout |
Trackball lifespan | more than 5 million actuations |
Front Plate | Quality brushed stainless steel |
Key Top Style | protuberant rectangular keys, with laser engraved and etched legends and raised dots available. |
Operation Temperature | -20ºC~+ 60º C |
ITEM SPECIFICATION
Key :2 keys, IP67 dynamic quality stainless steel button
Key top style: sealed round stainless steel buttons with tactile feeling
Front Plate:Quality brushed stainless steel
Key Travel: 1.00 mm
Ball diameter: 38.1mm/1.50"(19mm, 25mm, 36mm 40mm also available)
Key switch lifespan: more than 1 Mio actuations
Track ball lifespan: > 5 Mio revolutions
Actuation Force: 1.0N to 3.0
Mounting Rack :top stainless steel plate with mounting screw bolts
Interface :PS2, USB are available, Y type cable with ports of PS2 and USB
Electrical: Power supply :5V DC+ 10%, mouse interface
Protection level: IP67 dynamic (front panel), IK09
EMC Standard: EN 55032:2015 , EN 55035:2017
Contact Material: sealed stainless steel buttons
Operating temperature: -20ºC~+ 60º C
Storage temperature :- 30ºC~+ 70ºC
Operating RH: 30~90%
Atmospheric pressure : 60~106Kpa.
Reliable Certificates: RoHS compliant, CE and FCC certified, ESD
MTBF >20000H
MTTR< 30min
OS :All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details: Each unit to a suitable brown box, suitable brown boxes to a standard export carton.
