industrial rugged metallic vandal proof dot matrix keypad 3x4

K-TEK-B88KP-AC-DWP

minimum order

1 piece

Supply Ability

3000.0piece / Month

Country of Origin

Shenzhen Port

Quantity

Contact Now

add to cart

Product Description

12 keys compact format IP67 dynamic water proof and vandal proof and Stainless Steel industrial keypad with industrial metal dome PCB electronics controller shieded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with top stainless steel plate with threaded bolt and sealing gasket for easy tightly mounting to enclosure or panel.Industrial Backlight (red/blue/white/green) optional.

Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

Product Name	industrial rugged metallic vandal proof dot matrix keypad 3x4
Front Plate	1.5mm thickness super quality brushed stainless steel
Key Size	14.0mm x 14.0mm for normal keys
Layout	US Standard or Other customized layout
Switch Life	more than 5 million of operations
Key Travel	0.45mm
Key Top Style	Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Used	industry, military, marine, and etc.

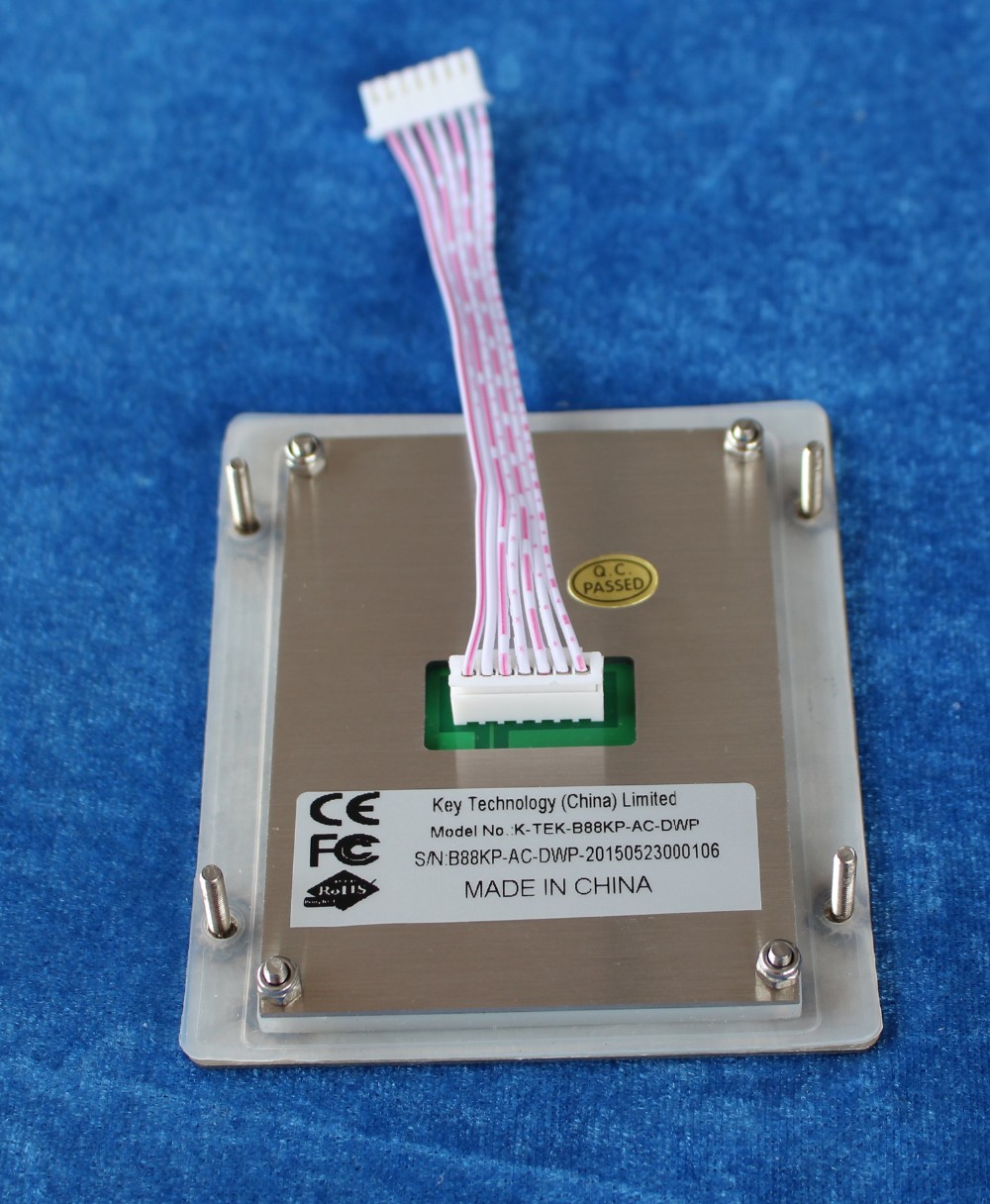

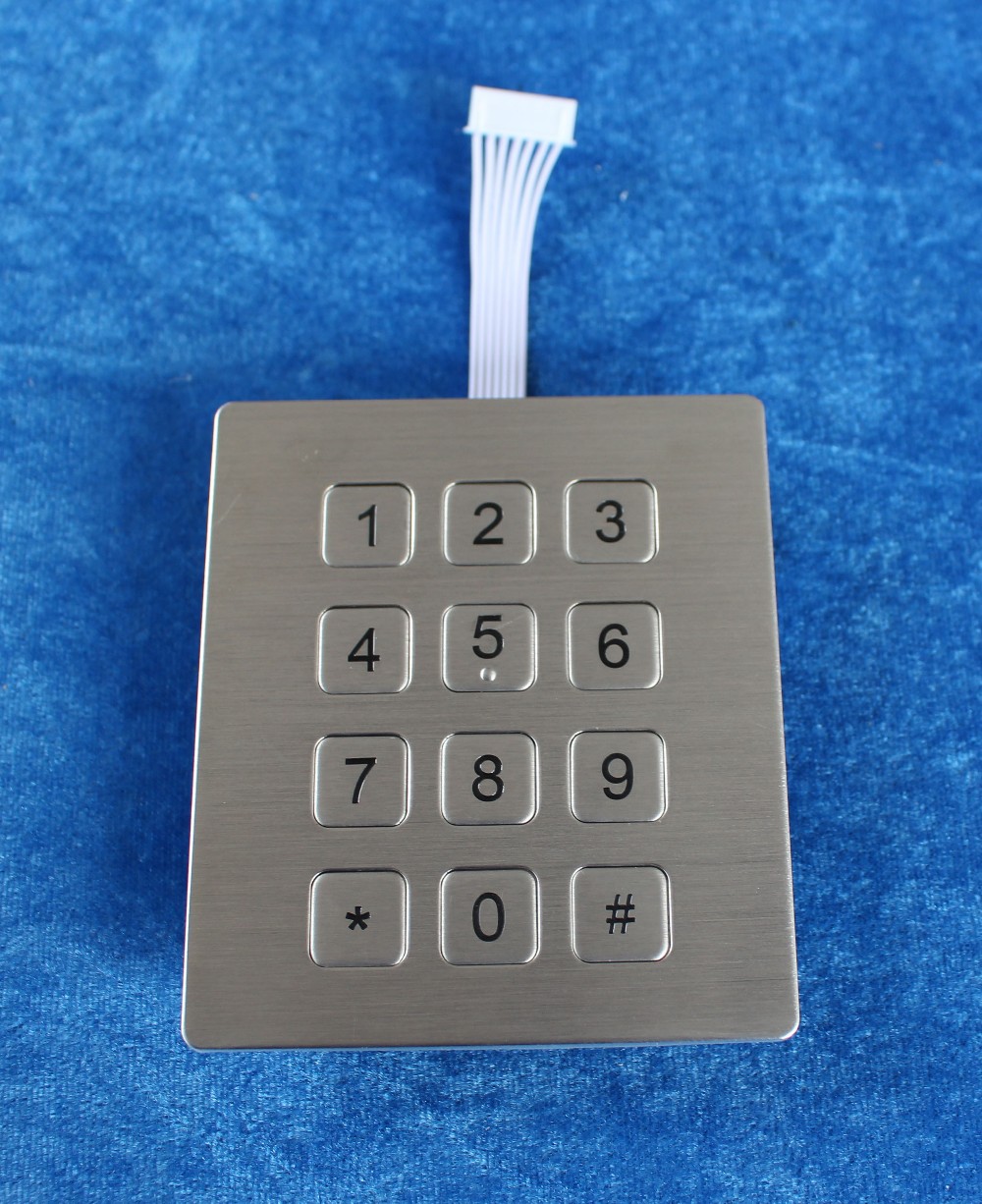

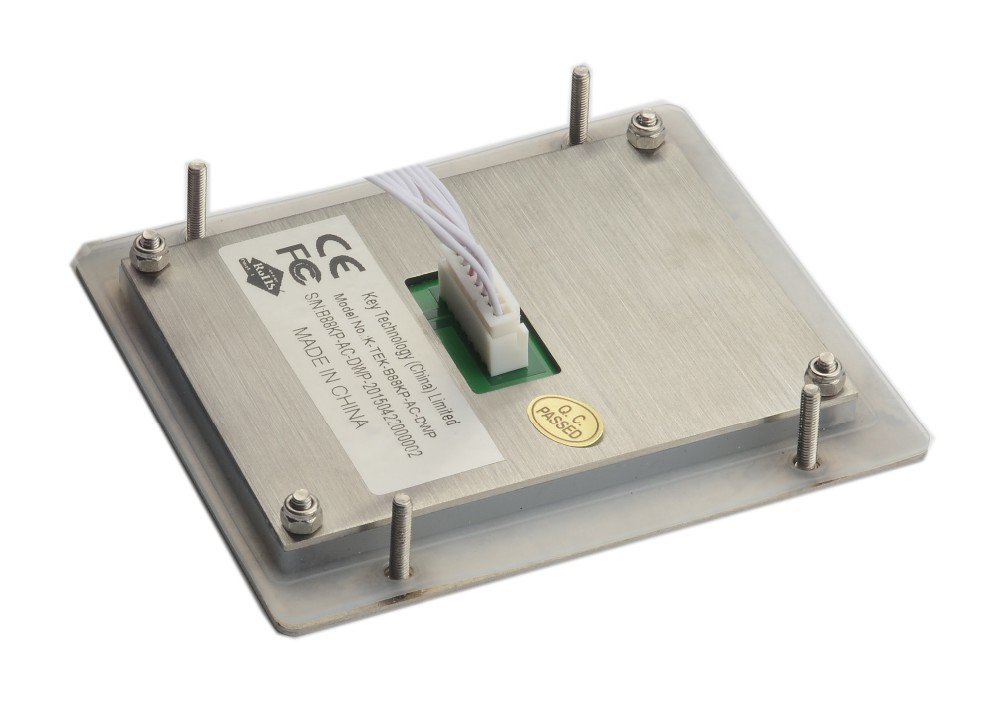

Products Show

Data and Advantage

MECHANICAL DATA

•Actuator/keys: 12 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
•Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
•Key Size: 14.0mm x 14.0mm for normal keys
•Key travel: 0.45mm
•Actuation Force: 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
•Switch life: more than 5 million of operations.
•Front Plate: 1.5mm thickness super quality brushed stainless steel
•Back Stainless steel housing: 1.0mm thickness super quality stainless steel
•G.W.: 0.60KGs
•Dimensions: 88.0mm x 102.0mm (L x W )

ELECTRICAL DATA

•Supply Voltage: +5V DC +/-5%
•Current Rating: appr. 20mA
•EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
•EMI: EN 55022: 2010
•EMS: EN 55024:2010
•Lifespan > 5 years
•Switch Contact Material: Gold-on-Gold key switch technology PCB.
•Interface: PS2, USB, RS232, RS485 available
•OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

RS232

•Standard RS232 serial interface.
•Communication velocity: 9600bps.
•Data format: N, 8, 1.
•12 actuators: 0, 1, 2, 3, 4, 5, 6, 7, 8, 9,*, #. 3 x 4 scanning code, 3 x 4 scanning code.
•Any customized layout/codes are available upon customers' requirements

OUR ADVANTAGES

Key Technology China Limitedserves distributors and end users in several different industries and is constantly developing cutting-edge professional products. In addition, Key Technology China Limited can provide ideal solutions for original equipment manufacturers and can customize any of its products to meet its customers' specific needs. The Indestructible Industrial Metal Keyboards and Pointing Devices are long lasting and stand up in environments where your typical office grade peripherals will not survive.

Advantages Include:
Super quality, Reasonable price, Quick delivery, Comfortable professional daily customer service, reliable and professional technical support and after service etc.
Industrial durability ratings ranging from NEMA 12 to NEMA 4X, which allow for use in extremely dirty, dusty and greasy environments.
