industrial ruggedized best usd wired keyboard and tonchpad mouse

MODEL NO.:K-TEK-B85TP-DT-DWP

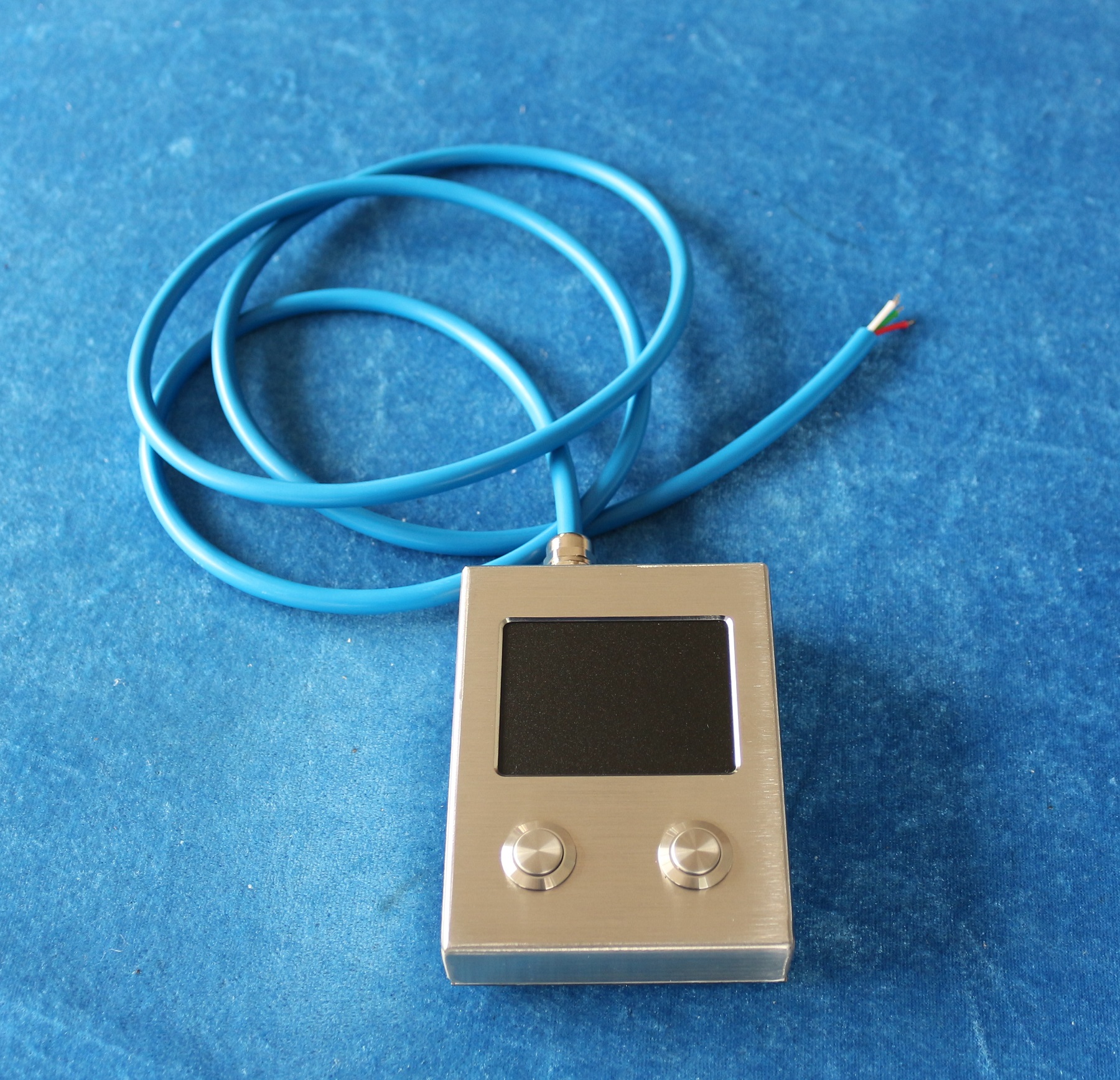

DESCRIPTION: IP68 dynamic sealed and stainless steel ruggedized tough touchpad with IP67 dynamic sealed stainless steel mouse buttons, with movable stand alone desktop version. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

DIMENSIONS: 85.0mm x 110.0mm (L x W)

SPECIFICATION

Mechanical Front Plate: Quality brushed stainless steel

Touchpad thickness: 1.2 mm PCB thickness inclusive of mylar layer

Validated touch width: 45.0mm (max)

Validated touch length: 60.0mm (max)

Mounting Rack: Movable stand alone desktop version

Back Metal Cover: Rear side integrated electronics protected by a metal cover

Touchpad lifespan > 5 years

Dimensions Touchpad: 60.0mm x 45.0mm; Front Mounting Panel: 85.0mm x 110.0mm (front panel)

Interface: PS2 and USB both available

Power supply:  5 VDC ± 0.25V

Work current: 17 mA (normal)

X/Y position sensing resolution: 1000 points/inch (40 points/mm)

X/Y position reporting: Relative

Tracking speed: Maximum 1,016 m/sec

Protection level: IP68 dynamic (front panel)

Static Release: 15 KV (front panel)

EMC Standard: EN 55032:2015, EN 55035:2017

Environmental Operating temperature: -20°C to +60°C

Storage temperature: - 30°C to + 70°C

Operating RH: 10%-95%

Atmospheric pressure: 60-106Kpa

Reliability MTBF >20000H

MTTR< 30min

Key Switch Lifespan:  >1 million

OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

Packing Details: Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
