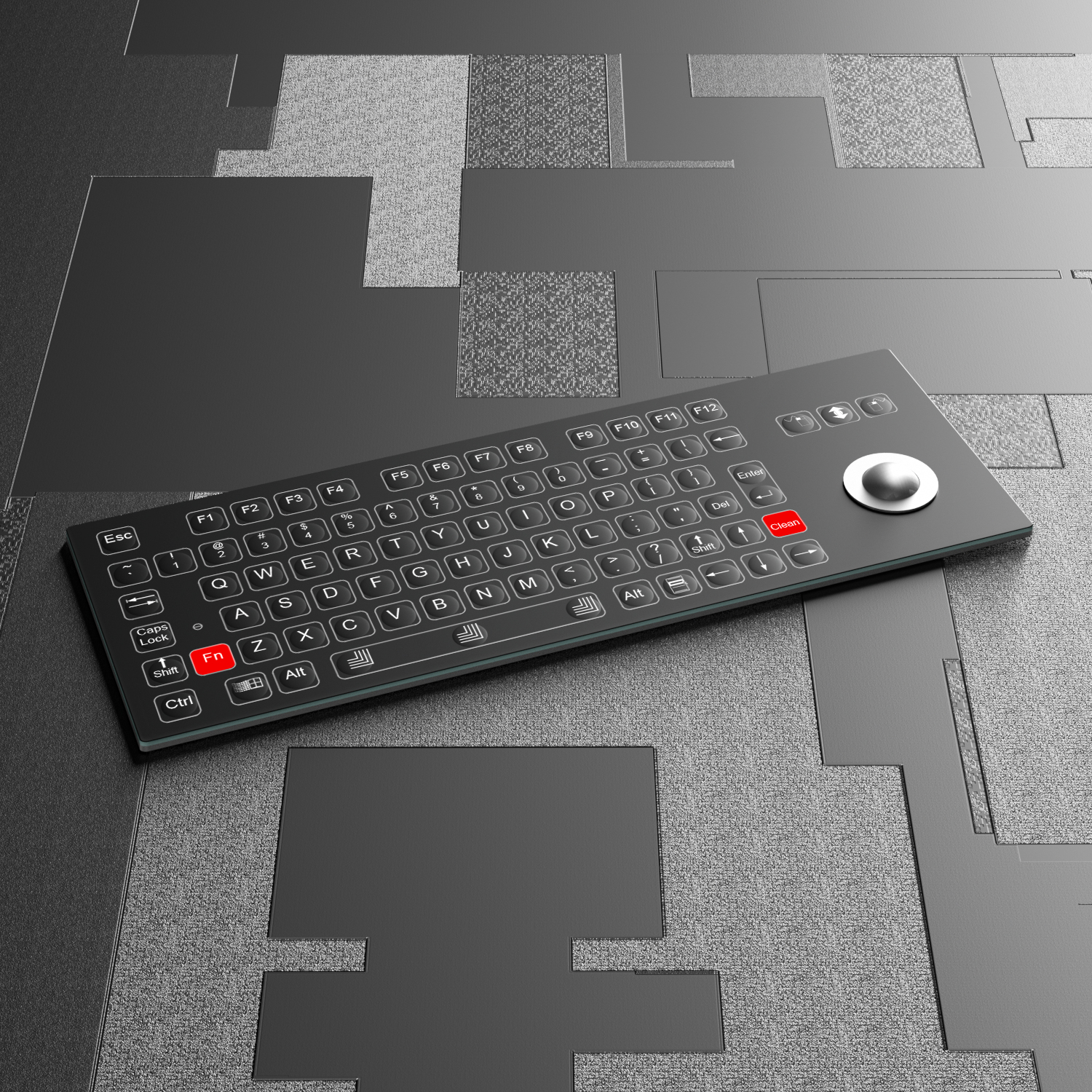

IP65 dynamic rated membrane industrial keyboard with 25mm trackball
DESCRIPTION:82 keys compact format IP65 dynamic rated membrane industrial keyboard with full keyboard functionalities, with
function keys on the upper line, IP68 dynamic rated washable 25.0mm optical hardened resin trackball module with 800 DPI resolutions
for fast and accurate cursor position, industrial metal dome PCB with gold-on-gold metal dome key switch technology with short
stroke 0.45mm with extremely good tactile feeling for reliable data input, with FN+CLEAN key for easy cleaning via lock/disable the
entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable
and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, with ruggedized stainless steel
plate with brushed treatment and threaded bolts, top panel mounted solution.
DIMENSIONS:343.0mm x 125.0mm (top panel)
MECHANICAL DATA | |
Number of Keys | 82 keys (including 3 mouse buttons) |
Key switch Technology | metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys |
Actuation Force | 3.5N±0.2N (press point) |
Key Travel | 0.45mm |
Key switch Lifetime | 1 mil. operations |
Mounting Type | Top panel mounted solution |
Colors | 2 (white, black) |
G.W. | 1.30KGs |
Key Dimensions (print area) | 14.0mm x 14.0mm |
Trackball | IP68 washable 25mm stainless steel optical ball or silver hardened resin ball module |
Trackball resolutions | 800DPI |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 100mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS, CE, FCC | |
Protection Level | IP65 dynamic |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
