IP65 dynamic vandal proof military keyboard with 38mm trackball for boating or navy
71 keys vandal proof IP65 backlit terminal industrial & military keyboard with trackball

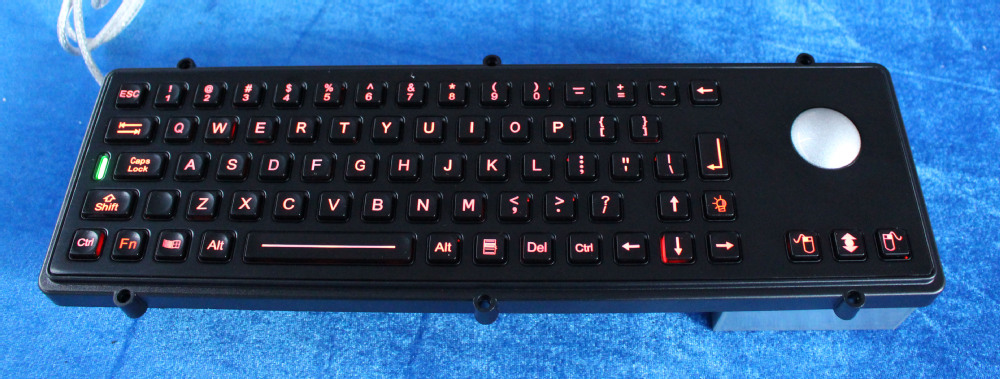

Model NO:K-TEK-M380-OTB-BL-BT
DIMENSIONS: 380.0mm x 108.0mm (top panel)
DESCRIPTION: 71 keys vandal proof IP65 industrial keyboard with adjustable industrial backlight and 38.0mm IP65 static mechanical trackball with 400 DPI resolutions, with carbon-on-gold key switch technology with stroke 1.50mm,high quality durable black titanium electroplated on the top stainless steel plate,rear panel mounted. Military level optional.
Product Classifications and Descriptions | IP Rated TB | ||
K-TEK-M380-MTB | Keyboard; 400 DPI Mechanical Trackball module (2-in-1) | PS2/USB | IP65 Static |
K-TEK-M380-CTB | Keyboard; 400 DPI Chameleon Trackball module; (Adjustable seven colors backlight); Adjustable Backlight is optional (2-in-1) | PS2/USB | IP65 Static |
K-TEK-M380-OTB | Keyboard; 800 DPI Optical Trackball module; Adjustable Backlight is optional (2-in-1) | PS2/USB | IP68 Dynamic |
K-TEK-M380-LTB | Keyboard; 1200 DPI Laser Trackball module; Adjustable Backlight is optional (2-in-1) | PS2/USB | IP68 Dynamic |
Other Language versions/interfaces/configuration available on request | |||
APPLICATION
This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.
MECHANICAL DATA
Key: 71 keys
Key top style: Protuberant rectangular keys.
Actuator/keys materials: polymer
Top SS plate: 1.5mm stainless steel plate with super quality durable Black Titanium Electroplated (optional)
Back SS plate: 1.5mm stainless steel plate
Robust polycarbonate frame: Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.
Key Size: 11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
Key travel: 1.50mm
Tracker ball: 38mm (1.5') diameter:
IP65 Mechanical trackball /IP65 chameleon backlight trackball, IP68 optical washable trackball are available.
Switch life: more than 5 million of operations.
Lettering: laser-etched or high quality ink print.
G.W.: 2.00KGs
Dimensions: 380.0mm x 108.0mm ( L x W )
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating:
30.0mA for keyboard and trackball without backlight.
230.0mA for keyboard and trackball with backlight on.
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan>5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All windows, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 100%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS, CE and FCC, ESD
Protection Level: IP65 (front panel)
Vandal resistant IK09
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
