IP65 washable medical keyboard industrial membrane OMRON switch technology
K-TEK-D349KP-FN-SW
-WITH OMRON SWITCH TECHNOLOGY
-TOP PANEL MOUNTED SOLUTION
-WITHE COLOR, BLACK COLOR OPTIONAL
-WASHABLE FOR EASY CLEANING
-TOP PANEL MOUNTED SOLUTION
-WITHE COLOR, BLACK COLOR OPTIONAL
-WASHABLE FOR EASY CLEANING
Delivery
EXW
minimum order
1 piece
Supply Ability
3000piece / Month
Country of Origin
China
Stock Time
7-15Day
Quantity

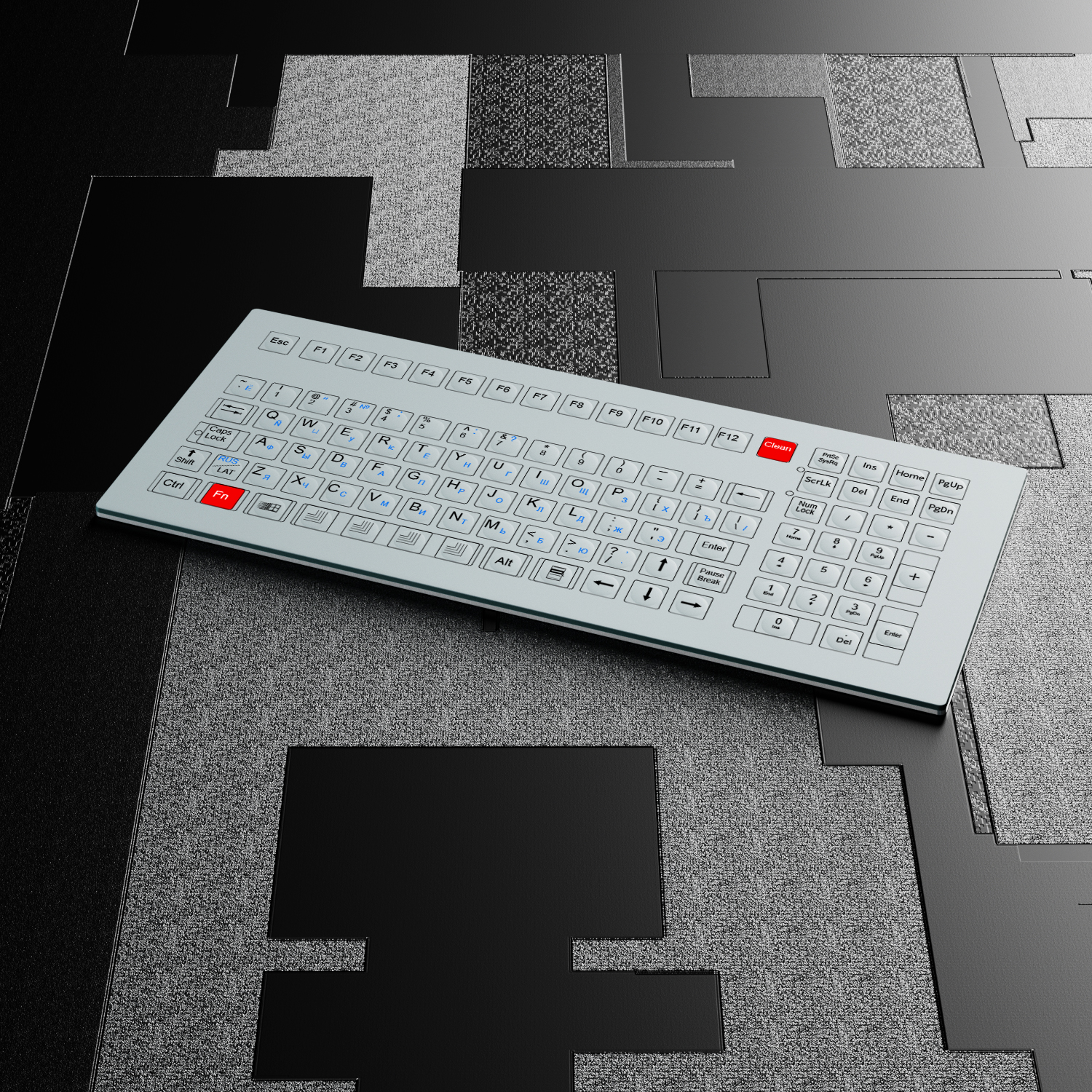

DESCRIPTION:103 keys IP65 dynamic rated industrial membrane keyboard with integrated numeric keypad and function keys on the upper line,
industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with “FN+Clean”
key combination for easy cleaning via lock/disable the entire medical membrane keyboard without needing to take the keyboard from PC, surface
mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest
environments,top panel mounted solution with threaded bolts.
DIMENSIONS: 349.0mm x 152.0mm (top panel)
| MECHANICAL DATA | |
| Number of keys | 103 keys |
| Key switch Technology | OMRON switch technology with short stroke 0.45mm for stable and accurate data input |
| Actuation Force | 2.0N±0.2N(press point) |
| Key Travel | 0.45±0.05mm |
| Mounting Type | Top panel mounting |
| Colors | 2 (white, black) |
| G.W. | 1.20KGs |
| Switch life | more than 1 million of operations |
| Key Dimensions (print area) | 14.0mm x 14.0mm |
| ELECTRICAL DATA | |
| Supply Voltage | DC +5V±5% |
| Current Rating | 30mA |
| EMC Standard | EN 55032:2015 EN 55035:2017 |
| Lifespan | > 5 years |
| Interface | PS2, USB available |
| OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
| ENVIRONMENTAL ADAPTABILITY | |
| Operating temperature | -20℃ to +65℃ |
| Storage temperature | -30℃ to +75℃ |
| Saline mist | 96h, IEC60512-6 |
| Damp heat test at +40℃ | 21 days, IEC 60512-6 |
| Dry heat test at +85℃ | 10 days, IEC 60512-6 |
| Humidity | 100% |
| Atmospheric pressure | 60-106Kpa |
| RELIABILITY | |
| RoHS compliant, CE and FCC certified | |
| Protection Level | IP65 dynamic (front panel) |
| Key Lifespan | >1 million actuations |
| MTBF | >20000H |
| MTTR | <30min |
| APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
