IP67 industrial kiosk waterproof backlit metal keyboard with trackball mouse

K-TEK-B255-25-OTB-FN-DWP

minimum order

1 piece

Supply Ability

3000.0piece / Month

Country of Origin

Shenzhen Port

Quantity

Contact Now

add to cart

Product Description

86 Keys Compact Format IP67 dynamic washable Vandal Proof Stainless Steel industrial Keyboard with

with IP68 dynamic rated washable 25mm stainless steel optical trackball module with 800DPI resolutions for fast and

accurate position with extremely smooth operation, industrial metal PCB with gold-on-gold key switch technology

with short stroke 0.45mm with extremely good tactile feeling for stable and accurate input without any noise,

3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, function keys F1, F2..F10,

F11, F12 are on the top panel for easy operation, stainless steel rear plate with mounting holes for rear panel

mounting solution, one-piece water tight gasket for easy mounting & sealing tightly with cabinet. Which is good for

outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt

mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.

Product Name	IP67 industrial kiosk waterproof backlit metal keyboard with trackball
Certificates	RoHS compliant, CE and FCC certified.
Dimension	255.0mm x 105.0mm (front panel)
Layout	US Standard or Other customized layout
Trackball lifespan	more than 5 million actuations
Key Size	10.0mm x 10.0mm for normal keys, 10.0mm x 28.0mm for enter key, 10.0mm x 70.0mm for space bar.
Vandal Resistant	IK09
Operation Temperature	-20ºC~+ 60º C

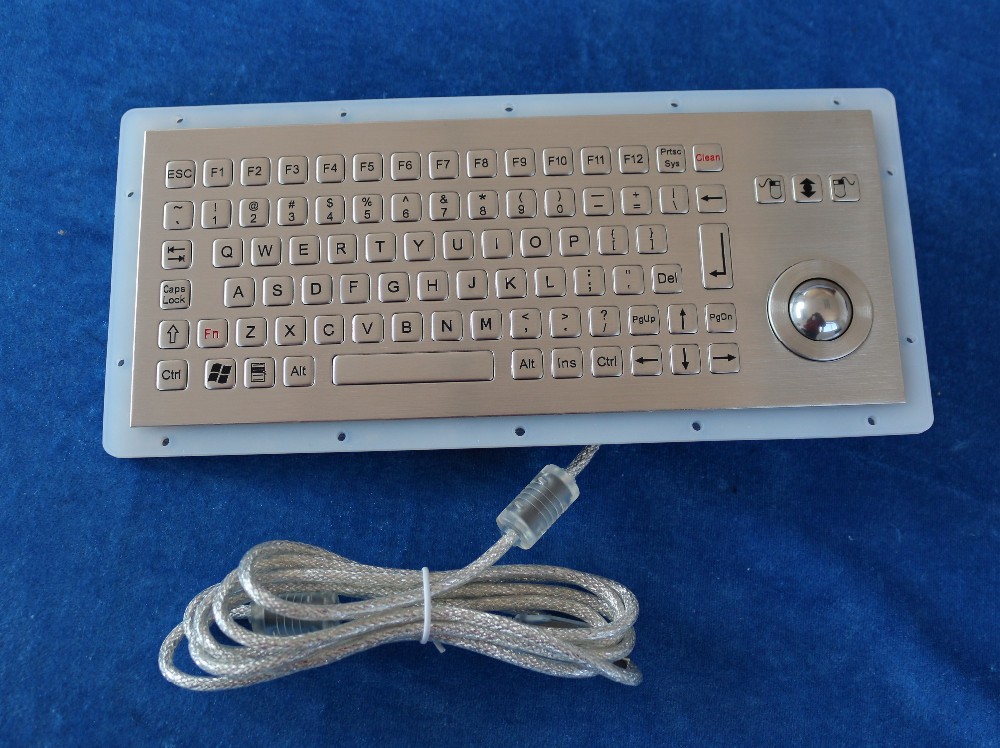

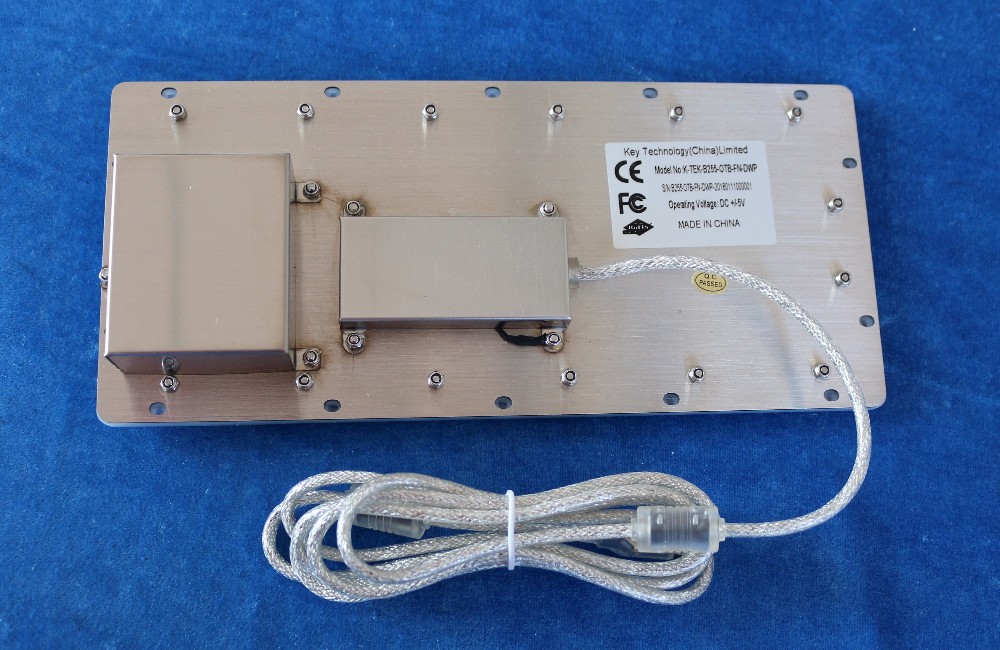

Products Show

Mechanical Drawing

Data and Advantage

ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%
Current Rating: 100mA
EMC Standard: EN 55032:2015 EN 55035:2017
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

MECHANICAL DATA

Actuator/keys: 86 keys, super quality SUS304 brushed stainless steel
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys
available
Key Size: 10.0mm x 10.0mm for normal keys, 10.0mm x 28.0mm for enter key, 10.0mm x 70.0mm for space bar.
Actuation Force: 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Front Plate: 1.2mm thickness super quality brushed stainless steel
Back Plate: 1.5mm thickness brushed & oxidized aluminium
G.W.: 1.60KGs

OUR ADVANTAGES

Key Technology China Limitedserves distributors and end users in several different industries and is constantly developing cutting-edge professional products. In addition, Key Technology China Limited can provide ideal solutions for original equipment manufacturers and can customize any of its products to meet its customers' specific needs. The Indestructible Industrial Metal Keyboards and Pointing Devices are long lasting and stand up in environments where your typical office grade peripherals will not survive.

Advantages Include:
Super quality, Reasonable price, Quick delivery, Comfortable professional daily customer service, reliable and professional technical support and after service etc.
Industrial durability ratings ranging from NEMA 12 to NEMA 4X, which allow for use in extremely dirty, dusty and greasy environments.
