IP67 Industrial metal keyboard with numeric keys and FN keys

K-TEK-A340KP-FN-DWP

minimum order

1 piece

Supply Ability

3000.0piece / Month

Country of Origin

Shenzhen Port

Quantity

Contact Now

add to cart

DECRIPTION:

102 keys compact format IP67 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation. 1.50mmstainless steel back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, rear panel mounting solution.Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.

Application

This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, and railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

Product Name	vandal proof top panel mount stainless steel keyboard with big keys
Certificates	RoHS compliant, CE and FCC certified.
Front Plate	1.5mm thickness super quality brushed stainless steel
Layout	US Standard or Other customized layout
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Vandal Resistant	IK09
Operation Temperature	-20ºC~+ 60º C

MECHANICAL DATA

·Actuator/keys:102 keys, super quality SUS304 brushed stainless steel

·Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

·Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.

·Key travel: 2.0mm

·Actuation Force: 1.2 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2.0 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

·Switch life: more than 5 million of operations.

·Front Plate: 1.5mm thickness super quality brushed stainless steel

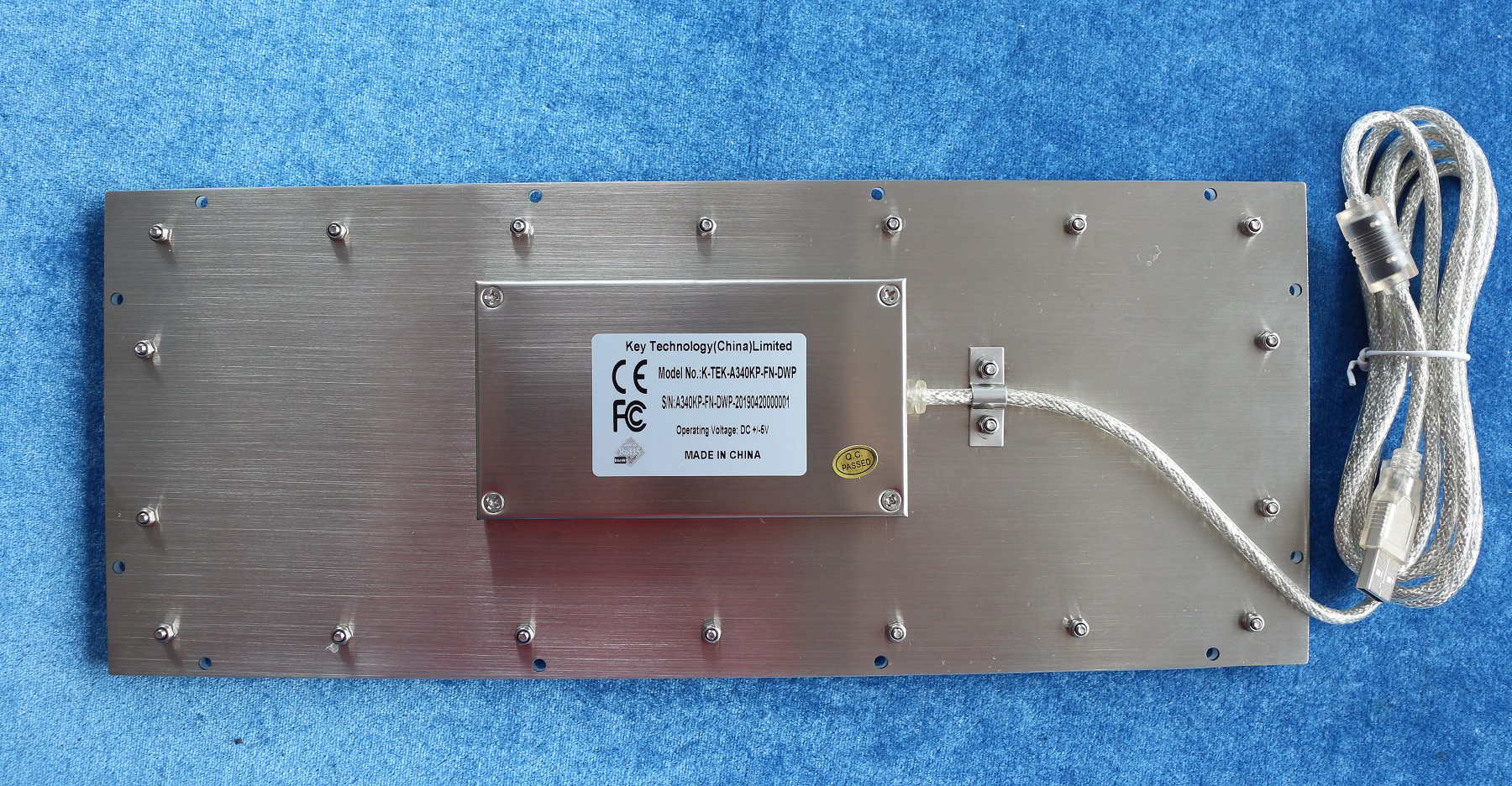

·Back Plate:1.5mm thickness super quality brushed stainless steel

·G.W.:1.80KGs

·Dimensions: 340.0mm x 125.0mm (front panel)

ELECTRICAL DATA

·Supply Voltage: +5V DC +/-5%

·Current Rating: 30mA.

·EMC Standard: EN 55032:2015, EN 55035:2017

·Lifespan > 5 years

·Switch Contact Material: Carbon-on-Gold key switch technology PCB.

·Interface: PS2, USB available

·OS:All Windows, Linux, Unix, Mac OSX, Vxworks, Android,(U-cos--To be confirmed)

ENVIRONMENTAL ADAPTABILITY

·Operating temperature:-20^oC to +60^oC

·Storage temperature: -30^oC to +70^oC

·Operating RH: 30-90%

·Atmospheric pressure: 60-106Kpa.

·Saline mist: 96 hours, IEC 60512-6

·Damp heat test at + 40^oC: 21 days, IEC 60512-6

·Dry heat test at + 85^oC: 10 days, IEC 60512-6

RELIABILITY

·RoHS Compliant, CE and FCC, ESD

·Protection Level: IP67

·Vandal resistant IK08

·Key Lifespan >5 million actuations

·MTBF >20000H

·MTTR<30min
