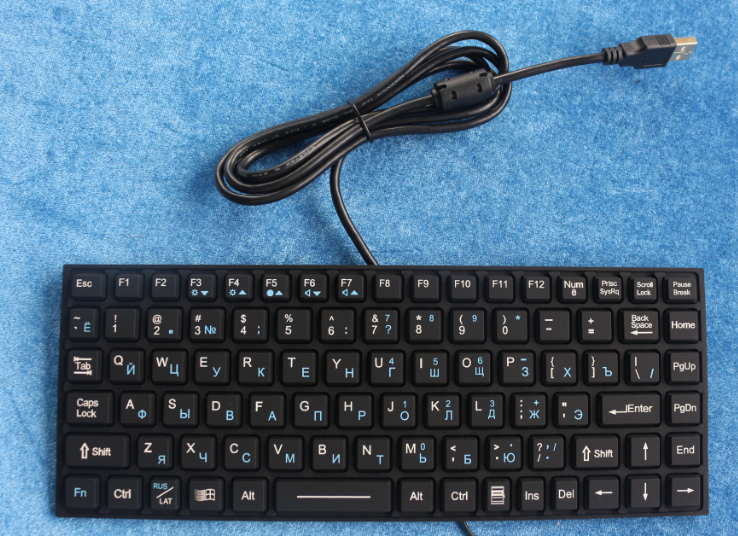

IP67 waterproof usb embedded silicone rubber keyboard for portable computer
IP67 waterproof usb embedded silicone rubber keyboard for portable computer
Model NO: K-TEK-M284-FN-BL-IL-OEM
DESCRIPTION: 89 keys IP67 dynamic waterproof military silicone keyboard , with carbon-on-gold key switch 12 FN keys (F1, F2...F11, F12) on top line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, durable coating & antimicrobial keyboard surface withstand to most chemicals and liquids under harsh environment, top panel mounting, with industrial backlight included. Dimensions: 284.00mm x 109.00mm x 12.6mm (L x W x H )
APPLICATIONS:
Thisruggedized and compact design keyboard can be good for working in low-light areas, it is also available with optional LED backlighting. This keyboard is ideal for below wide applications:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
MAIN FEATURES:
Keyboard providesrugged, compact design, rugged construction for reliable functionality.
The keyboard lacks the crevices found between the keys of a regular keyboard, which is protected against dust, dirt, grease and corrosive liquid, which means it can withstand directed hose water, disinfectants, environmental contaminants and heavy industrial use.
Special durable-coating for excellent mechanical and chemical resistance.
With firm tactile key feel, key travel 1.50mm key travel.
Actuation Force: Square key: 1.2N+/-0.1NRectangular key:2N+/-0.1N
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection cables that plug directly into computer like keyboard operations.
Low-profile keys for easy cleaning
Key life: 5millions
MECHANICAL DATA
Key:89keys
Key top style: Protuberant rectangular keys with tactile feeling.
More than Lifetime 5 million strokes
G.W.:0.80KGs
Dimensions:284.00mm x 109.00mm x 12.6mm (L x W x H)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: 30mA (non-backlight) , 300mA (with backlight on)
Lifespan>5years
Switch Contact Material: Carbon-on-Gold key switch technology.
Interface: PS2, USB available.
Cable length: Standard 2.0m, customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃
Saline mist:96h,IEC60512-6
Damp heat test at +40℃:21days,IEC 60512-6
Dry heat test at +85℃:10days,IEC 60512-6
Operating RH: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3 x 11 ms pulses of 50g on each of 3 axes
PRINTED CIRCUIT BOARD: 94V-0SILICONE OVERLAY: 94 HBINTERFACE CABLE: 94 HB
RELIABILITY
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
