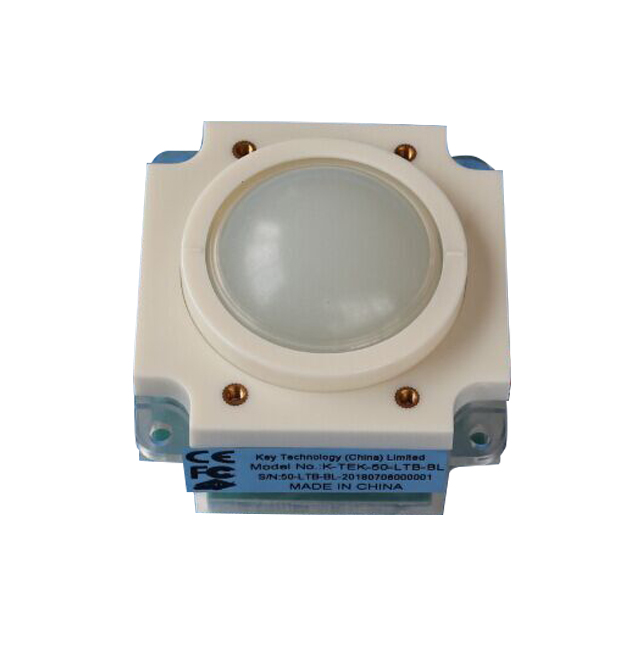

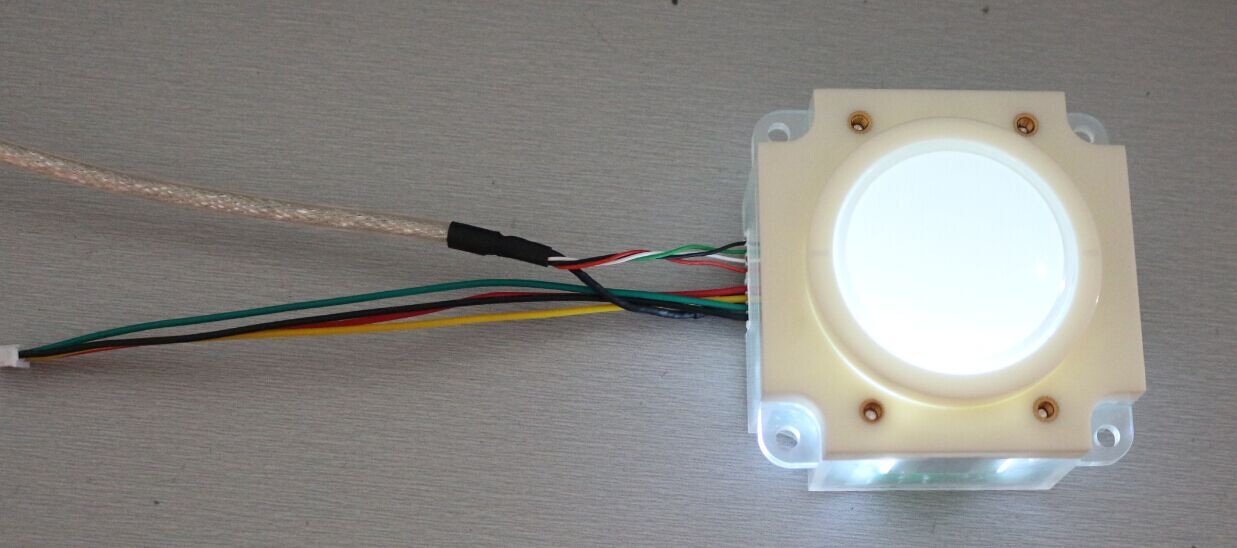

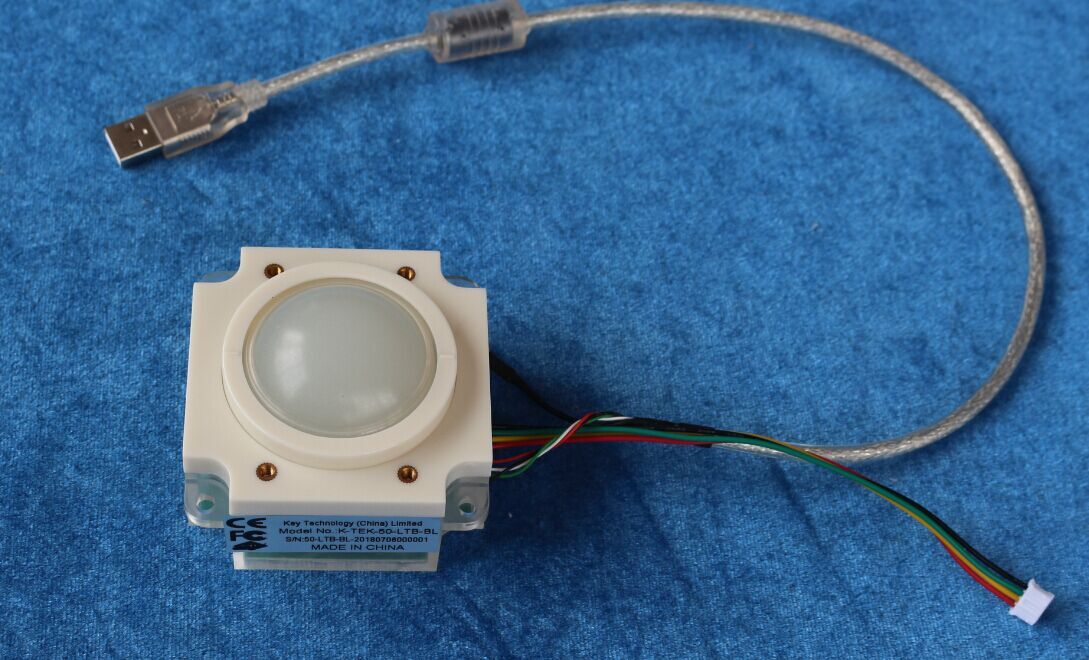

IP68 50mm usb optical wired backlight laser trackball mouse module
IP68 50mm usb optical wired backlight laser trackball mouse module
DESCRIPTION: 50.0mm IP68 dynamic waterproof laser trackball module with backlight, with 1200 DPI resolutions for fast and accurate cursor movement.
DIMENSION: 72.00mm x 72.00mm x 50.80mm(front panel)
Product Name | IP68 50mm usb optical wired backlight laser trackball mouse module |
Certificates | RoHS compliant, CE and FCC certified. |
Dimension | 50.0 mm diameter for ball, 72.00mm x 72.00mm x 50.80mm(front panel) |
Operation Temperature | -20ºC~+ 60º C |
Trackball lifespan | more than 5 million actuations |
Front Plate | Quality brushed stainless steel |
Key Top Style | protuberant rectangular keys, with laser engraved and etched legends and raised dots available. |
Storage Temperature | - 30ºC~+ 70ºC |
Main Feature
Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
Available 50.0mm, 38mm, 25mm, 19mm diameter hard phenolic resin ball for smooth, durable operation and precise cursor positioning.
Rate sensitive dynamic resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly. .
TECHNICAL SPECIFICATION
ITEM SPECIFICATION
Mechanical Data Ball diameter 50mm/2.00' (19mm, 25mm, 38mm also available)
Track ball lifespan > 5 Mio revolutions
Actuation Force 1.0N to 3.0N
Dimension 50.0 mm diameter for ball, 72.00mm x 72.00mm x 50.80mm(front panel)
Interface PS2, USB are available
Electrical Power supply 5V DC+ 10%, keyboard interface
Protection level IP68 (dynamic)
EMC Standard EN55022(B)
Power consuming ≤1.00W(dynamic) ≤0.2W(static)
Environmental Operating temperature -20ºC~+ 60º C
Storage temperature - 30ºC~+ 70ºC
Operating RH 30~90%
Atmospheric pressure 60~106Kpa.
Reliable Certificates RoHS compliant, CE and FCC certified, ESD
MTBF >20000h
MTTR< 30min
OS All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
