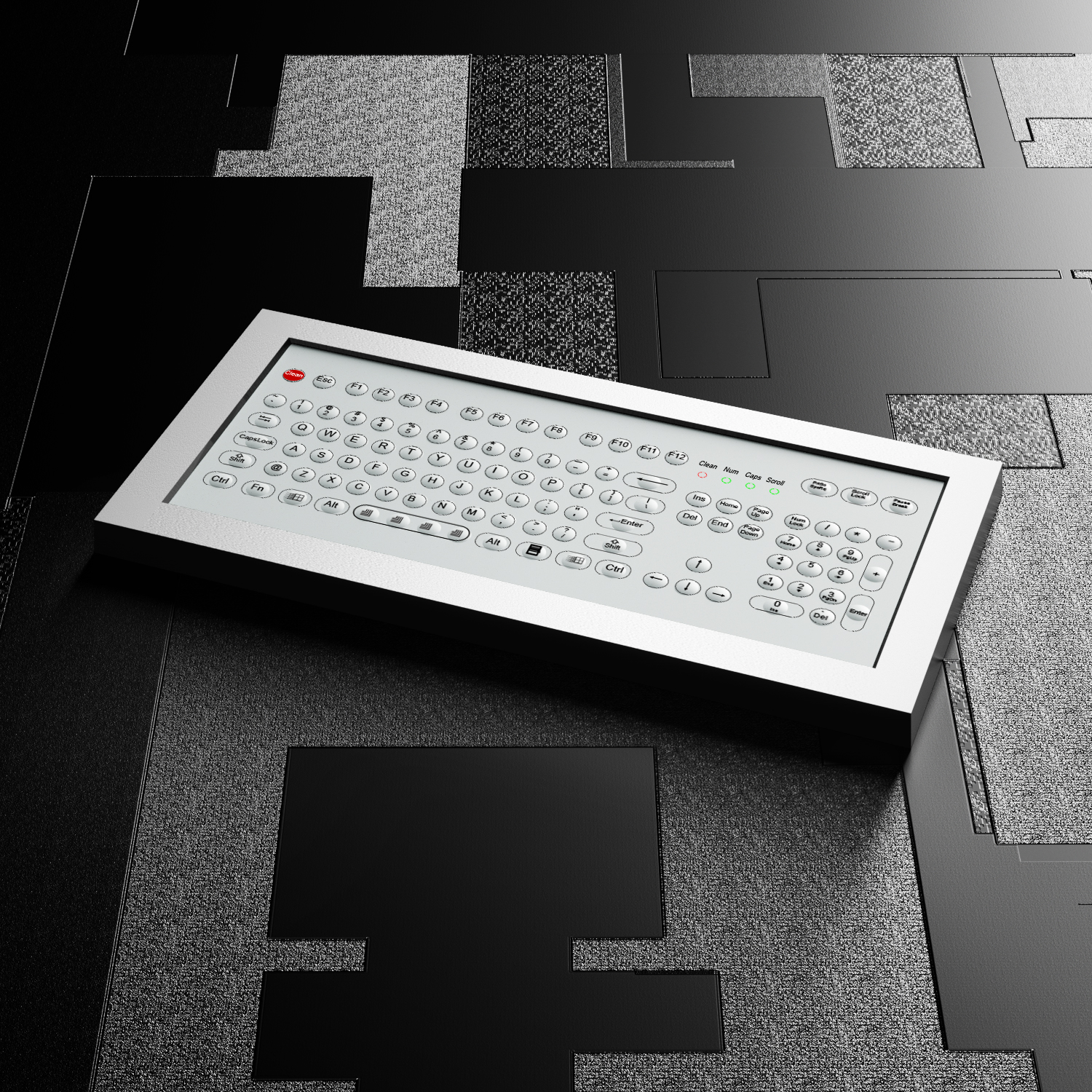

IP68 Durable Anti-Microbial Custom Industrial Desktop Membrane Keyboard
DESCRIPTION: 107 keys compact format IP68 dynamic rated membrane industrial keyboard with integrated numeric keypad and function
keys on the upper line for easy operation, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology
with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with CLEAN key for easy cleaning via lock/disable the
entire keyboard without needing to take away the keyboard from PC, surface mounted extremely flush with anti-microbial, durable and
scratch-proofpolyester withstand to most chemicals and liquids under the harshest environments. Movable stand alone desk top version with
sealed aluminum metal housing with sand blasting & oxygenation surface treatment.
DIMENSIONS:355.0mm x 170.0mm x 19.0mm (L x W x H)
MECHANICAL DATA | |
Number of keys | 107 keys |
Key switch Technology | metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys |
Actuation Force | 3.5N±0.2N(press point) |
Key Travel | 0.45±0.05mm |
Mounting Type | Movable desktop version mount |
Colors | 2 (white, black) |
G.W. | 1.60KGs |
Switch life | more than 1 million of operations |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 30mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Saline mist | 96h, IEC60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
Humidity | 100% |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
RoHS compliant, CE and FCC certified | |
Protection Level | IP68 |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
