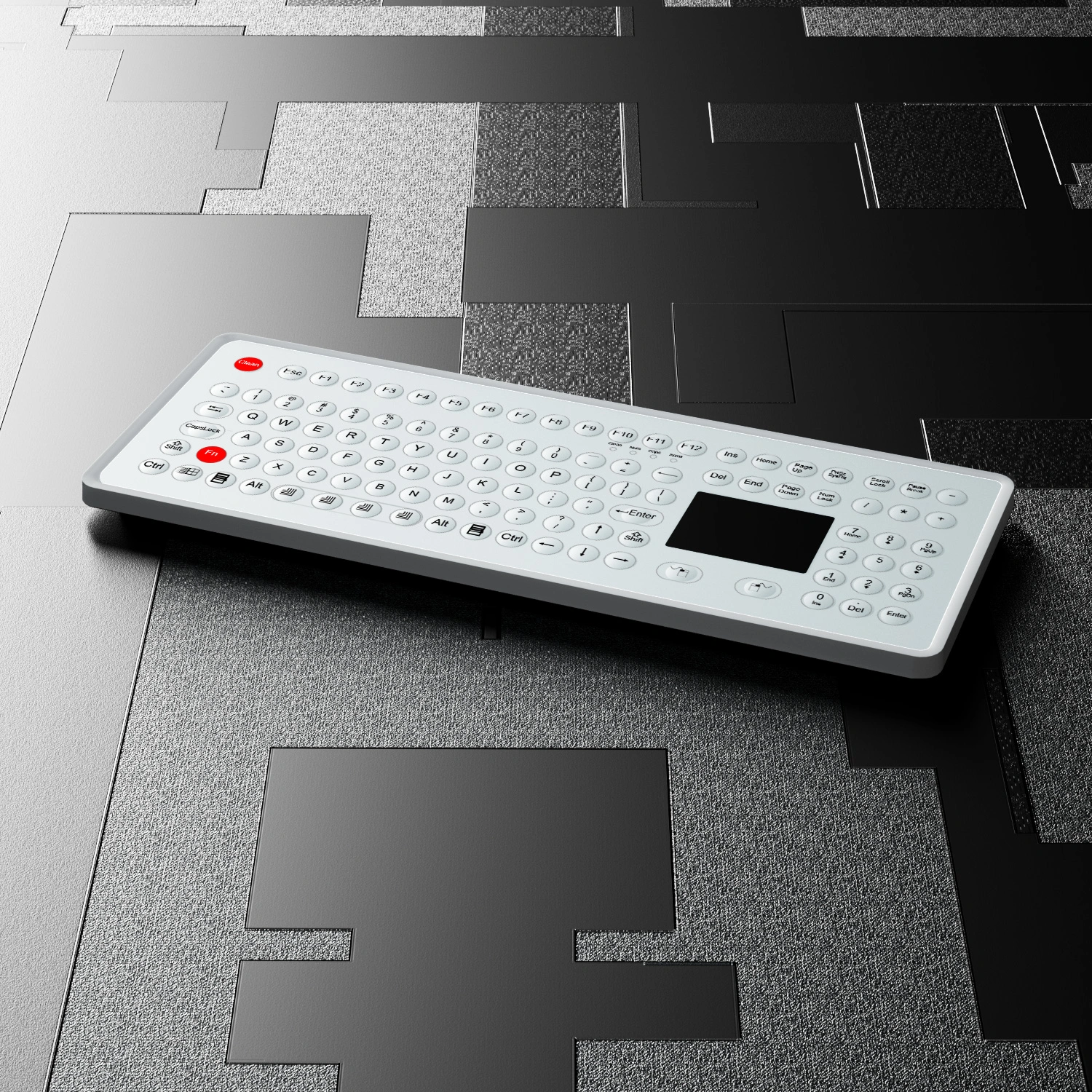

IP68 stand alone industrial membrane keyboard with sealed touchpad
DESCRIPTION:108 keys IP68 dynamic rated washable industrial membrane keyboard with full keyboard functionalities with integrated
numeric keypad and function keys on the upper line, IP65 dynamic sealed and ruggedized tough touchpad for fast and accurate cursor
position, industrial metal dome PCB with gold-on-gold metal dome key switch technology with short stroke 0.45mm with excellent good
tactile feeling for reliable data input, with FN+Clean key for easy cleaning via lock/disable the entire keyboard without needing to take
keyboard from PC, surface mounted extremely flush with anti-microbial, durable and scratch-proof polyester withstand to most chemicals
and liquids under the harshest environments, stand alone movable desk top version with robust polycarbonate case, with optional silicone
gasket around the edges of the whole keyboard to protect the membrane from being torn or peeled off.
DIMENSIONS:399.0mm x 149.0mm x 18.8mm (L x W x H)
MECHANICAL DATA | |
Number of Keys | 108 keys (including 2 mouse buttons) |
Key switch Technology | metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys |
Actuation Force | 3.5N±0.2N (press point) |
Key Travel | 0.45mm |
Key switch Lifetime | 1 mil. operations |
Mounting Type | Flat desktop version |
Colors | 2 (white, black) |
G.W. | 1.50KGs |
Key Dimensions (print area) | 13.0mm x 13.0mm |
Touch pad | sealed and ruggedized tough touchpad |
Touchpad cover | Composite |
Method | capacitive |
More than Lifetime 10 million strokes | |
Mutual capacitance sensing | |
X/Y axis location detection resolution | 40 Counts /mm |
X/Y position report | relative |
Output (self-detectable depending on cable) | PS2 or USB |
Tracking speed | Maximum 1,016 m/sec |
Power supply voltage | 5VDC ± 0.25V |
Current rating (active mode) | < 10 mA |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS, CE, FCC | |
Protection Level | IP68 |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
