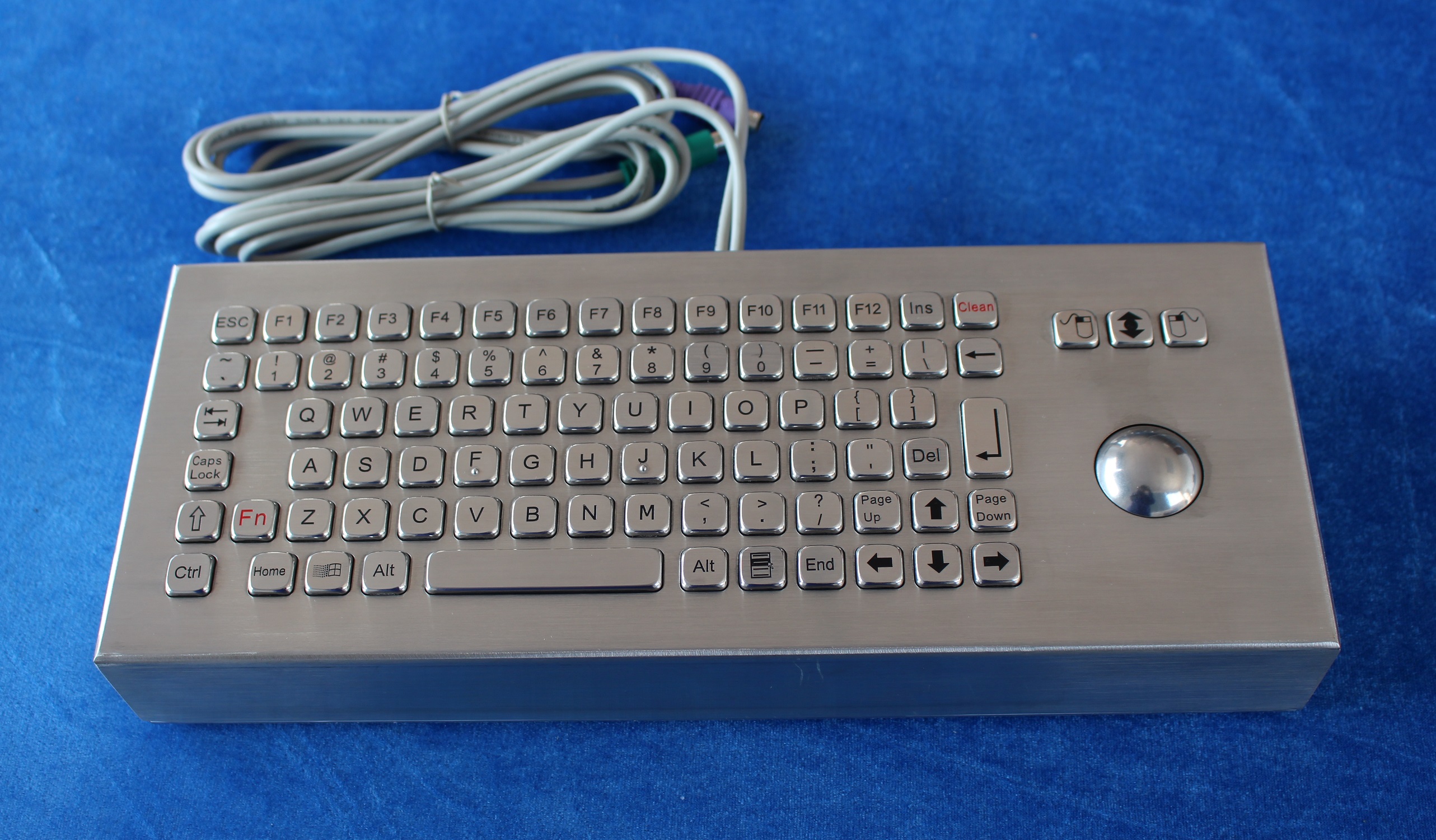

IP68 Waterproof Desktop Stainless Steel Koisk Metal Keyboard with Trackball and FN Keys

IP68 Waterproof Desktop Stainless Steel Koisk Metal Keyboard with Trackball and FN Keys

DESCRIPTION:

86 keys compact format IP68 dynamic vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, functional keys F1, F2, F3…F10, F11, F12 are on the top line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, movable stand alone DESK TOP VERSION, or mountable desktop with mounting holes on the bottoms for fixing. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, IP68 dynamic trackball module with direct drain pipe is optional, without metal parts inside to avoid rust risk and anti-salt spray corrosion.

DIMENSIONS:361.0mm x 145.0mm x 49.0mm (L x W x H)

MECHANICAL DATA

·Actuator/keys: 86 keys, super quality SUS304 brushed stainless steel

·Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised Braille on keys are

·available

·Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for spacebar.

·Key travel: 2.0mm long stroke.

·Actuation Force: 1.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2N+/-0.1Nfor key 14.0mm x 28.0mm (pressure point)

·Switch life: more than 5 million of operations.

·Stainless Steel Housing: 1.20mm thickness super quality brushed stainless steel.

·G.W.: 3.00KGs

·Dimensions:361.0mm x 145.0mm x 49.0mm (L x W x H)

ELECTRICAL DATA

·Supply Voltage: +5V DC +/-5%

·Current Rating: appr. 20mA

·EMC Standard: EN 55032:2015;EN 55035:2017

·Lifespan > 5 years

·Switch Contact Material: Carbon-on-Gold key switch technology PCB.

·Interface: PS2, USB available.

·OS:All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

·Operating temperature:-20℃ to +60℃

·Storage temperature:-30℃ to +70℃

·Operating RH: 30-90%

·Atmospheric pressure: 60-106Kpa.

·Saline mist: 96 hours, IEC 60512-6

·Damp heat test at + 40oC: 21 days, IEC 60512-6

·Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

·RoHS Compliant, CE and FCC, ESD

·Protection Level: IP68(front panel)

·Vandal resistant IK08

·Key Lifespan >5 million actuations

·MTBF >20000H

·MTTR<30min
