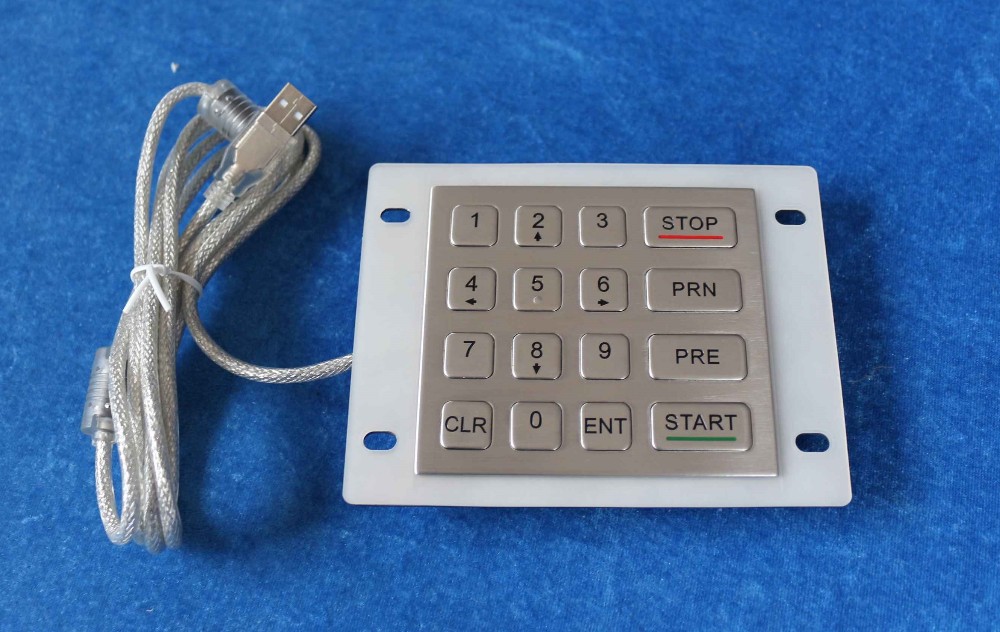

Kiosk ATM backlit rear panel mount custom numeric 16keys metal keypad
16 keys compact format IP67 dynamic water proof and vandal proof Stainless Steel industrial keypad with industrial metal dome PCB electronics controller shielded & protected by stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, rear stainless steel plate with mounting holes for rear panel mounting. Industrial Backlight (red/blue/white/green) optional. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
MECHANICAL DATA
Front plate: Super quality SUS304 brushed stainless steel
Back plate: Super quality SUS304 stainless steel
Actuator/Key: 16 keys, super quality SUS304 brushed stainless steel
Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
Key size: 14.0mm x 14.0mm for normal key, 14.0mm x 28.0mm for function keys
Switching material: Gold-on-Gold.
Actuation Force: 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Key Travel: 0.45mm.
Key life: more than 5 million of operations
Dimensions: 100.0mm x 91.5mm.
G.W. 0.69kg
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024: 2010
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
OUR ADVANTAGES
Key Technology China Limitedserves distributors and end users in several different industries and is constantly developing cutting-edge professional products. In addition, Key Technology China Limited can provide ideal solutions for original equipment manufacturers and can customize any of its products to meet its customers' specific needs. The Indestructible Industrial Metal Keyboards and Pointing Devices are long lasting and stand up in environments where your typical office grade peripherals will not survive.
Advantages Include:
Super quality, Reasonable price, Quick delivery, Comfortable professional daily customer service, reliable and professional technical support and after service etc.
Industrial durability ratings ranging from NEMA 12 to NEMA 4X, which allow for use in extremely dirty, dusty and greasy environments.
