marine keyboard with trackball backlit panel mount rugged keyboard
K-TEK-M500-MTB-KP-FN-BL-BT
Sealing to IP65
With 38mm mechanical trackball on left side
Ideal for marine, military application
top panel mounted solution with sinking holes

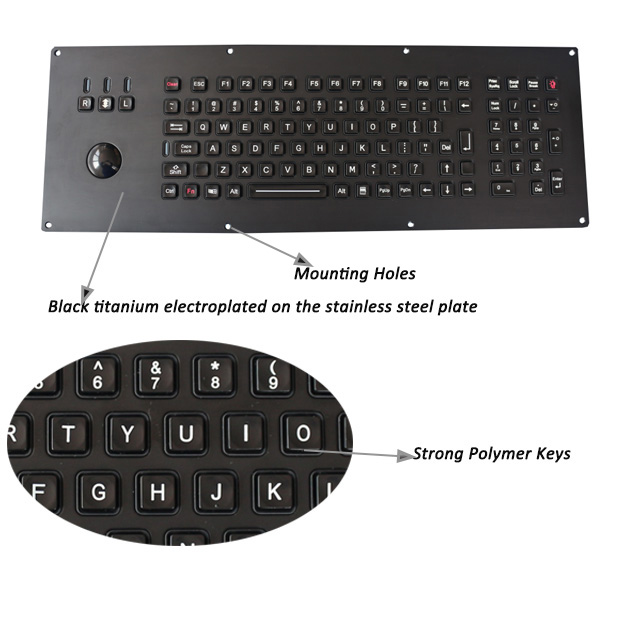

Black titanium electroplated on front SS plate to be scratch proof and anti salt-mist
Customized layout available
With 38mm mechanical trackball on left side
Ideal for marine, military application
top panel mounted solution with sinking holes
Black titanium electroplated on front SS plate to be scratch proof and anti salt-mist
Customized layout available
Delivery
EXW, FOB, CIF, C&
minimum order
1 piece
Supply Ability
1000.0piece / Month
Country of Origin
shenzhen
Quantity
Model NO: K-TEK-M500-MTB-KP-FN-BL-BT
DIMENSIONS:500.0mm x 172.0mm (top panel)
DESCRIPTION:106 keys IP65 dynamic vandal proof industrial & military keyboard with full function keyboard , Integrated
38mm IP65 static mechanical trackball module with 400 DPI resolutions, numeric keypad and function keys (F1, F2…F11, F12)
on the top line, with industrial PCB with carbon-on-gold key switch technology with key stroke 1.50mm with extremely good
tactile feeling for fast and accurate input without any noise, red clean key lock/disable the keyboard for easy cleaning and
washing without needing to take out the keyboard from PC, high quality durable black titanium electroplated on the top
stainless steel plate included, rear panel mounting solution. With adjustable industrial backlight included(Red or Blue).
APPLICATION:
This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened
stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and
impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’
application.
MAIN FEATURE:
NVIS-compliant adjustable red backlighting, while NVIS backlighting makes this keyboard ideal for military, aviation or vehicle
applications where night vision goggles are necessary;
Strong polymer keys ensure the keyboard’s resistance to willful destruction, vandal-proof, against corrosion, weather-proof
under hostile environments.
Waterproof execution according to degree of protection IP65 from the panel, the keyboard is sealed against the ingress or
liquid and dirt, when mounted in a suitable enclosure.
Excellent tactile feel with full travel switches and allow users to achieve fast and accurate data input without any noise. With
firm tactile perception for comfortable operation
Key-tops are laser-etched or high quality ink print in legends and characters for easy readability, long life to prevent lettering
rub-off.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
PS/2, USB connection output cables that plug directly into the host computer for normal keyboard operations.
Operational life of more than 10 million cycles per key.
Resistant to most commonly used cleaning agents.
MECHANICAL DATA:
Key: 106 keys
Key top style: Protuberant rectangular keys.
Actuator/keys materials: polymer
Top SS plate: 1.5mm stainless steel plate with super quality durable Black Titanium Electroplated (optional)

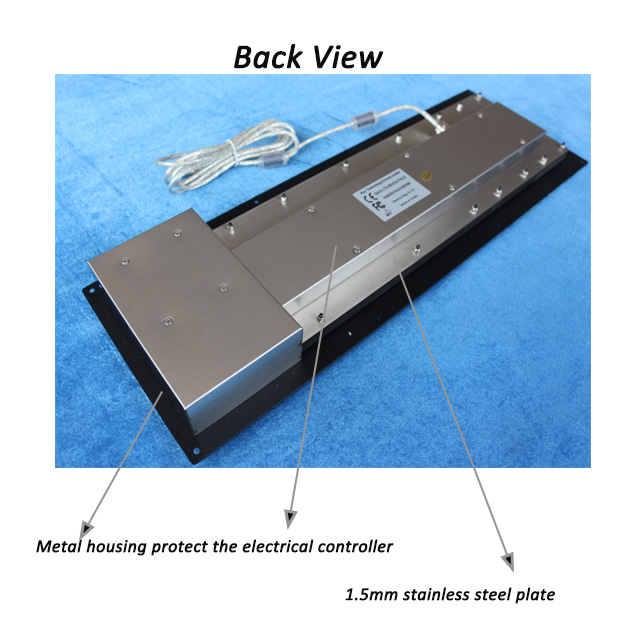

Back SS plate: 1.5mm stainless steel plate
Key Size: 11.4mm x 11.4mm for normal keys, 11.4mm x 24.3mm for enter key, 11.4mm x 71.8mm for space bar.
Key travel: 1.50mm
Tracker ball: 38mm (1.5') diameter, IP65 Mechanical trackball
Switch life: more than 5 million of operations.
Lettering: laser-etched or high quality ink print.
G.W.: 2.50KGs
Dimensions: 500.0mm x 172.0mm (top panel)
ELECTRICAL DATA:
Supply Voltage: +5V DC +/-5%
Current Rating:
50mA for keyboard and trackball without backlight.
300mA for keyboard and trackball with backlight on.
EMC Standard: It is compliance with EN 55032:2015, EN 55035:2017.
Lifespan>5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY :
Operating temperature:-20℃to +60℃
Storage temperature: -30℃to +70℃
Operating RH: 100%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40℃: 21 days, IEC 60512-6
Dry heat test at + 85℃: 10 days, IEC 60512-6
RELIABILITY:
RoHS, CE and FCC, ESD
Protection Level: IP65 (front panel)
Vandal resistant IK09
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
