Marine rugged keyboard with backlit and touchpad IP68 grade
K-TEK-M360-TP-KP-FN-BT-DWP
minimum order
1 piece
Supply Ability
1000.0piece / Month
Country of Origin
shenzhen
Quantity
Product Description

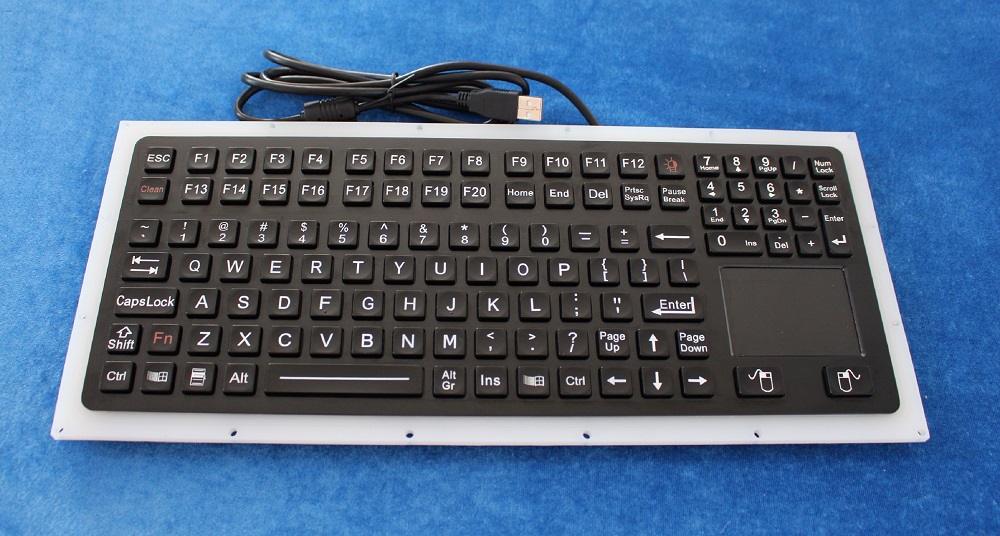

MODEL NO.: K-TEK-M360TP-KP-FN-BL-BT-DWP
DESCRIPTION:116 keys compact format IP67 dynamic water proof vandal proof stainless steel industrial
keyboard with durable polymer keys with full keyboard functionalities, IP65 dynamic sealed & ruggedized
tough touchpad for fast and accurate cursor position, function keys F1, F2, ...F19, F20 are on the top line
for easy operation, sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with
long stroke 1.50mm with extremely good tactile feeling for fast and accurate data input without any noise,
individual numeric keypad integrated, one complete silicone rubber alone the rear stainless steel plate
for easy mounting & sealing tightly with cabinet, rear panel mounted. High quality scratch-proof durable black titanium

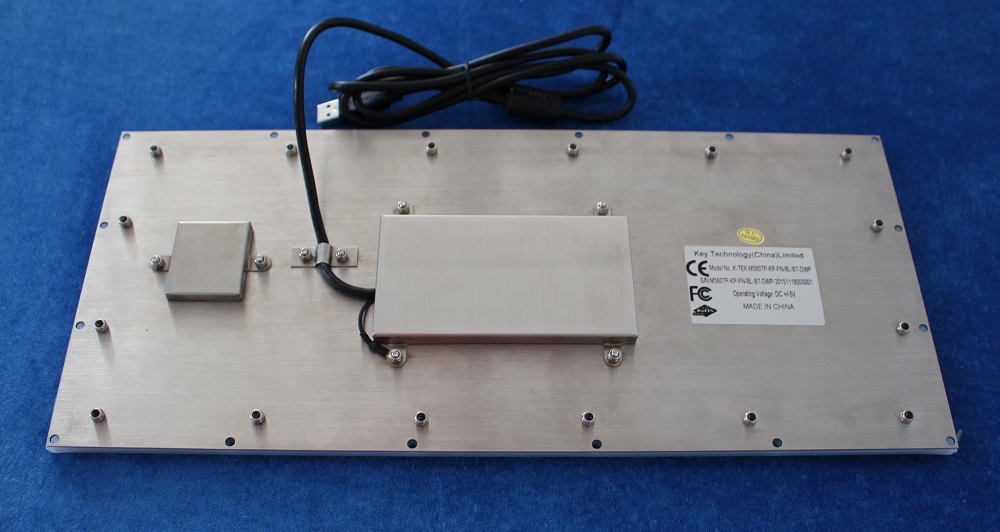

electroplated on the top stainless steel plate, stainless steel back plate with holes for rear

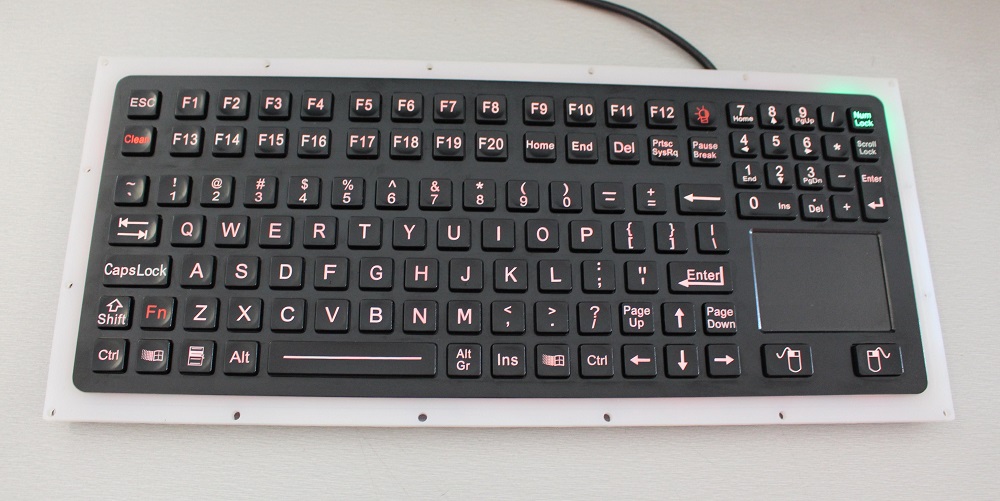

for rear mounting solution. Adjustable backlight included (RED, BLUE, WHITE etc.)
which is good for outdoor application with direct rain and very harsh environments with humidity, much
dynamic water, oil, dirt, salt mist etc.
Dimensions:360.0mm x 144.0mm (front panel)
MAIN FEATURE
- The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring on the keyboard.
- The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC, and avoid mis-operation or mis-typing.
- Imposing stainless steel design with durable and scratch-proof black titanium electroplated, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
- Durable and scratch-proof black titanium electroplated stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
- Waterproof execution according to IP66 protection from top panel and other sides without including the bottom side, rear stainless steel plate and sealing gasket with mounting holes or easy tightly mounting to enclosure or panel.
- An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
- Any keyboard layouts are available, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
- Polymer keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
- Ease of customizing with multiple languages, to accommodate foreign or custom variants.
- Complete electronic modules including controller in close consultation with our customers are available.
- PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
MECHANICAL DATA
- Actuator/keys: 116 keys, durable and robust polymer keys.
- Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
- Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
- Key travel: 1.50mm
- Actuation Force: 0.60 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.20 N+/-0.10N for key 14.0mm x 28.0mm (pressure point)
- Switch life: more than 5 million of operations.
- Front Plate: 1.5mm thickness super quality brushed stainless steel
- Back Plate:1.5mm thickness super quality brushed stainless steel
- Touchpad: sealed and ruggedized tough touchpad.
ELECTRICAL DATA
- Supply Voltage: +5V DC +/-5%
- Current Rating: appr. 30mA
- EMC Standard: It is compliance with the council IEC 61000-4-2:2008;
- IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
- EMI: EN 55022: 2010
- EMS: EN 55024:2010
- Lifespan > 5 years
- Switch Contact Material: Carbon-on-Gold key switch technology PCB.
- Interface: PS2, USB available,
- OS:All windows, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
- Operating temperature:-20oC to +60oC
- Storage temperature: -30oC to +70oC
- Operating RH: 30-90%
- Atmospheric pressure: 60-106Kpa.
- Saline mist: 96 hours, IEC 60512-6
- Damp heat test at + 40oC: 21 days, IEC 60512-6
- Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
- RoHS Compliant, CE and FCC, ESD
- Protection Level: IP67 without including the bottom side
- Vandal resistant IK09
- Key Lifespan >5 million actuation.
- MTBF >20000H
- MTTR<30min
