metal sealed mechanical latest keyboard and mouse with integrated numeric keypad
Description

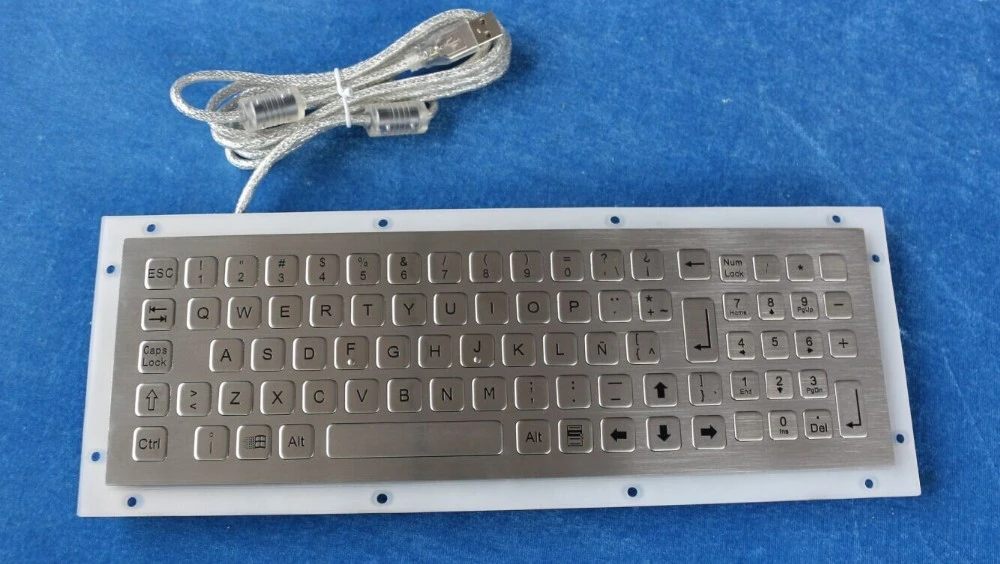

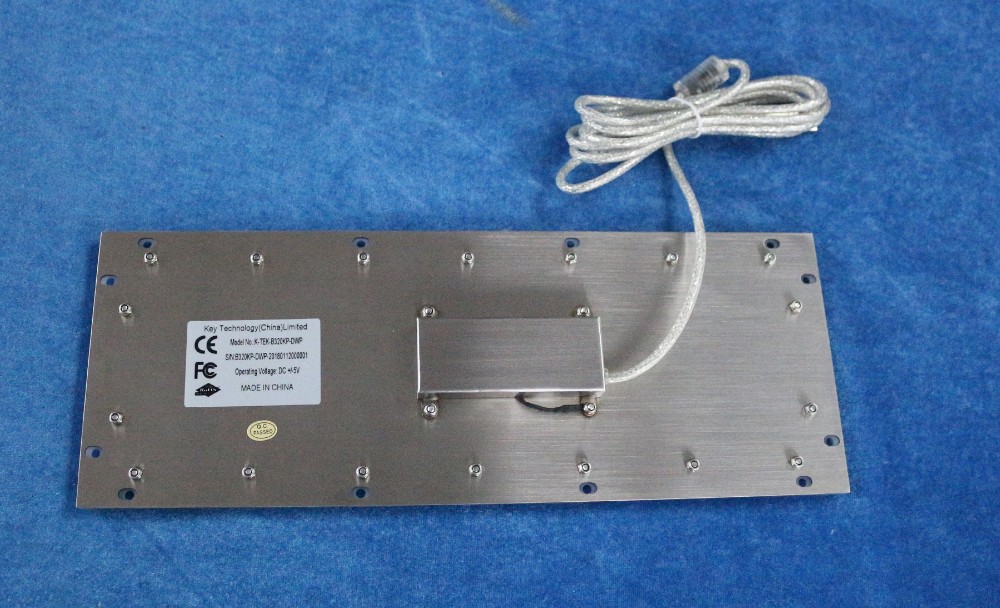

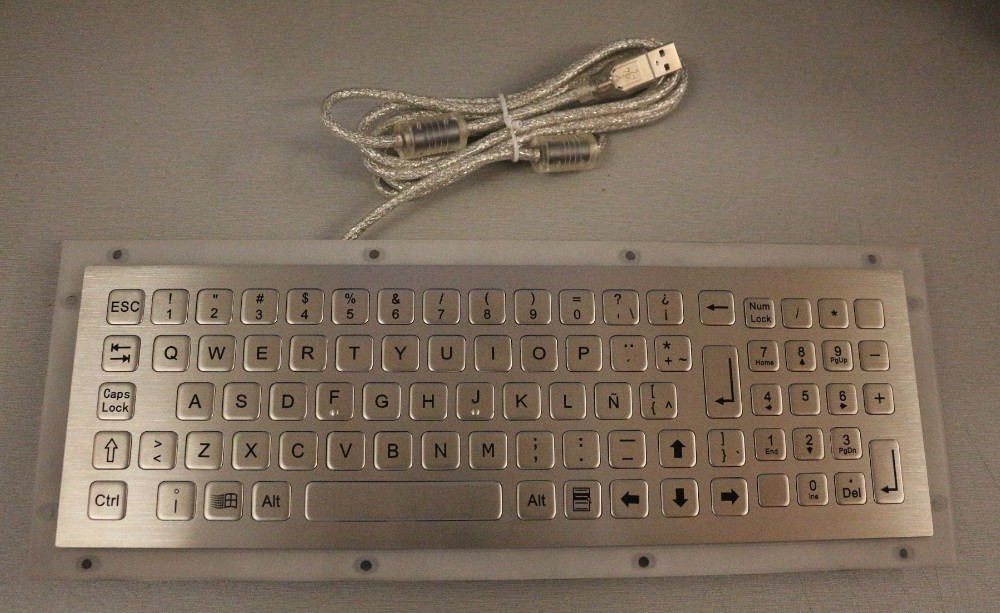

83 keys compact format IP67 dynamic washable vandal proof stainless steel industrial keyboard with industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, with integrated numeric keypad, rear panel mount with mounting holes. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion
DIMENSION:320.0mm x 105.0mm (front panel)
APPLICATION
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
MAIN FEATURE
The keyboard can be dynamic washable with water and other liquids, it can work well even with direct water pouring.
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.
Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP67 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning & threaded bolts for easy tightly mounting to enclosure or panel.
An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
MECHANICAL DATA
Actuator/keys: 83 keys, 2.0mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 0.45mm
Actuation Force: 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point) 4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:3.0mm thickness brushed & oxidized aluminium
G.W.: 1.40KGs
Dimensions: 320.0mm x 105.0mm (L x W )
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;
IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan > 5 years
Switch Contact Material: metal dome PCB with Gold-on-Gold key switch technology
Interface: PS2, USB available, RS232 for EPP
If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES.
OS: All windows, Linux, Unix, Mac OSX
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67(front panel)
Vandal resistant IK10
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
OUR ADVANTAGES
Key Technology China Limitedserves distributors and end users in several different industries and is constantly developing cutting-edge professional products. In addition, Key Technology China Limited can provide ideal solutions for original equipment manufacturers and can customize any of its products to meet its customers' specific needs. The Indestructible Industrial Metal Keyboards and Pointing Devices are long lasting and stand up in environments where your typical office grade peripherals will not survive.
Advantages Include:
Super quality, Reasonable price, Quick delivery, Comfortable professional daily customer service, reliable and professional technical support and after service etc.
Industrial durability ratings ranging from NEMA 12 to NEMA 4X, which allow for use in extremely dirty, dusty and greasy environments.
