NEMA 6P rugged metal industrial keyboard with trackball and numeric keypad

K-TEK-A420-OTB-KP-FN-DWP

minimum order

1 piece

Supply Ability

3000.0piece / Month

Country of Origin

Shenzhen Port

Quantity

Contact Now

add to cart

Product Description

Description

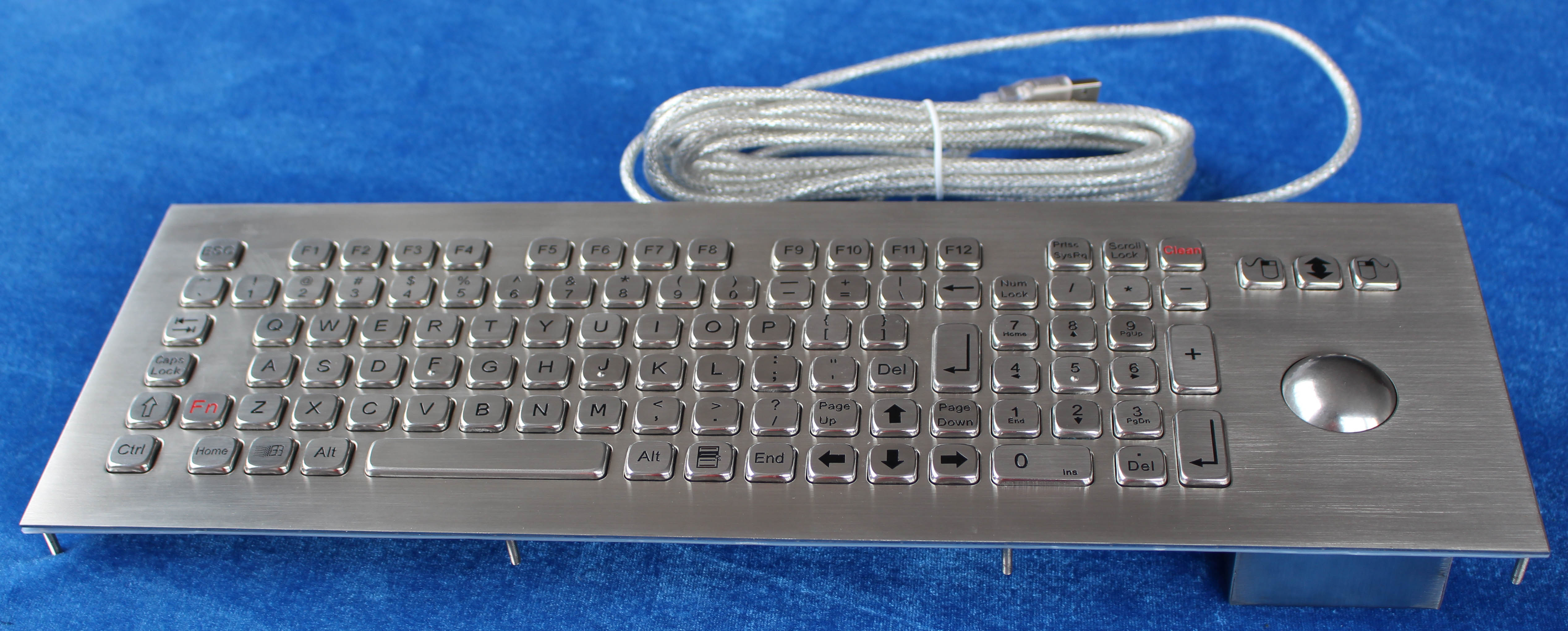

104 keys IP67 dynamic washable vandal proof stainless steel industrial keyboard with IP68 dynamic rated washable 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, function keys F1, F2..F10, F11, F12 are on the top line for easy operation, with numeric keypad, fully sealed and ruggedized industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, and stainless steel top plate with threaded bolts and water-tight gasket for easy & tightened sealing, with top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, IP68 dynamic trackball module with direct drain pipe is optional, without metal parts inside to avoid rust risk and anti-salt spray corrosion.

DIMENSION:420.0mm x 145.0mm (top panel)

Product Name	rugged metallic industrial stainless steel US qwerty keyboard
Front Plate	1.5mm thickness super quality brushed stainless steel
Interface	PS2, USB available
Layout	US Standard or Other customized layout
Trackball lifespan	more than 5 million actuations
Key Size	14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar
Vandal Resistant	IK08
Operation Temperature	-20ºC~+ 60º C

Products Show

Data and Advantage

MAIN FEATURE

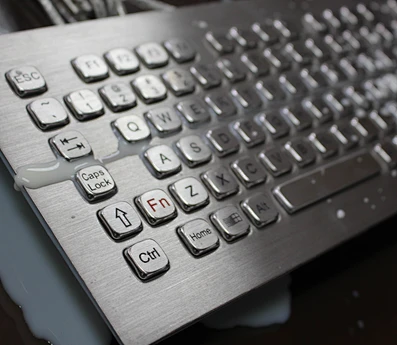

1.The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring On the keyboard.

2.The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.

3.Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.

4.Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

5.Waterproof execution according to IP67 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.

6.An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation

7.Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.

8.Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.

9.Ease of customizing with multiple languages, to accommodate foreign or custom variants.

10.Complete electronic modules including controller in close consultation with our customers are available.

11.PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.

12.The numeric keypad between keyboard and trackball is available with encryption module supporting DES/TDES for bank usage of CDM/ATM.

MECHANICAL DATA

Actuator/keys: 102 keys, super quality SUS304 brushed stainless steel

Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available

Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.

Key travel: 2.0mm

Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)

Switch life: more than 5 million of operations.

Front Plate: 1.5mm thickness super quality brushed stainless steel

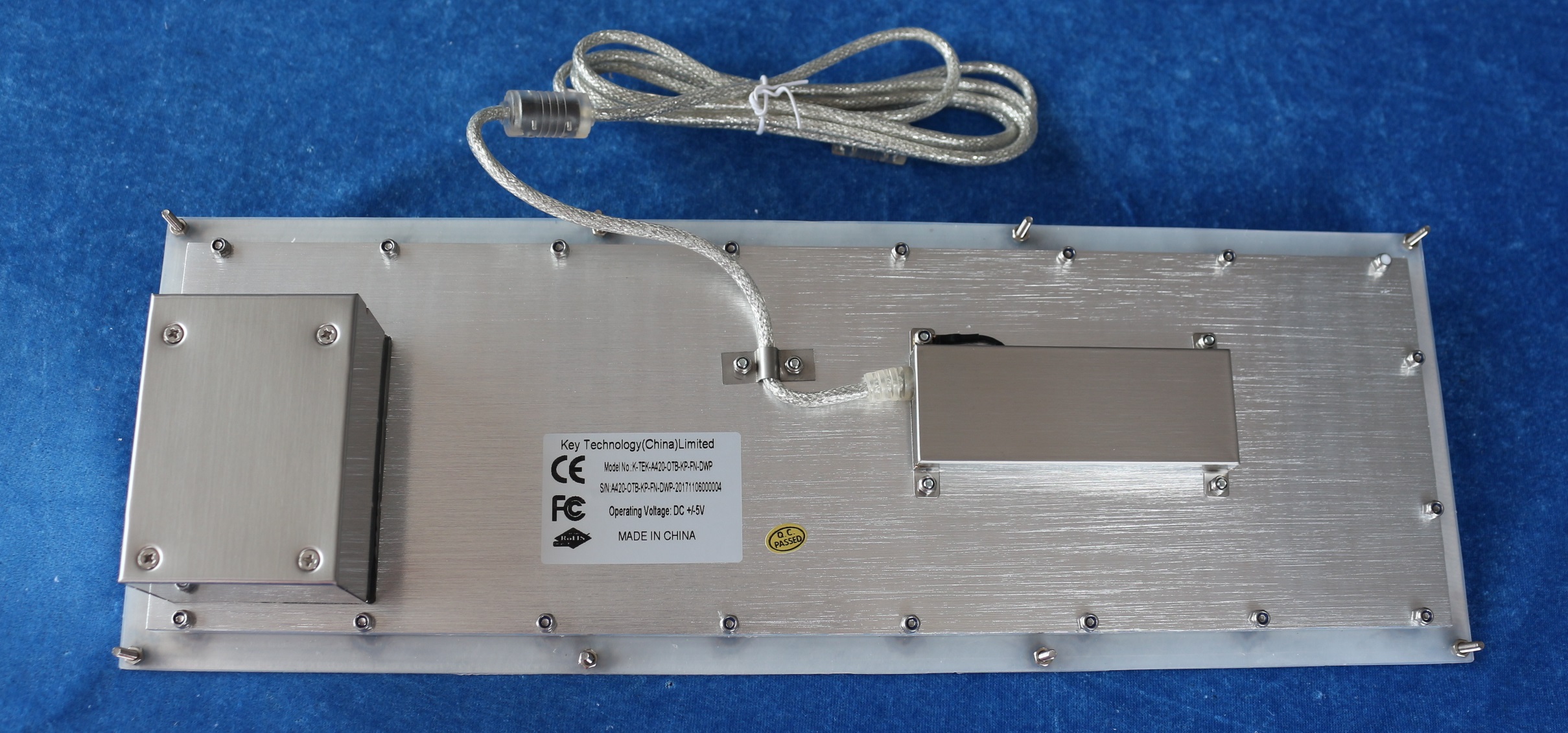

Back Plate:3.0mm thickness brushed & oxidized aluminium

Tracker ball: IP68 dynamic 1200DPI laser trackball are all available.

G.W.: 2.50KGs

Dimensions: 420.0mm x 145.0mm (front panel) , 400.0mm x 125.0mm (back panel)

ELECTRICAL DATA

Supply Voltage: +5V DC +/-5%

Current Rating: appr. 100mA

Lifespan > 5 years

Switch Contact Material: Carbon-on-Gold key switch technology PCB.

Interface: PS2, USB available

OS: All windows, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

Operating temperature:-20oC to +60oC

Storage temperature: -30oC to +70oC

Operating RH: 30-90%

Atmospheric pressure: 60-106Kpa.

Saline mist: 96 hours, IEC 60512-6

Damp heat test at + 40oC: 21 days, IEC 60512-6

Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

RoHS Compliant, CE and FCC, ESD

Protection Level: IP67(front panel)

Vandal resistant IK08

Key Lifespan >5 million actuations

MTBF >20000H

MTTR<30min
