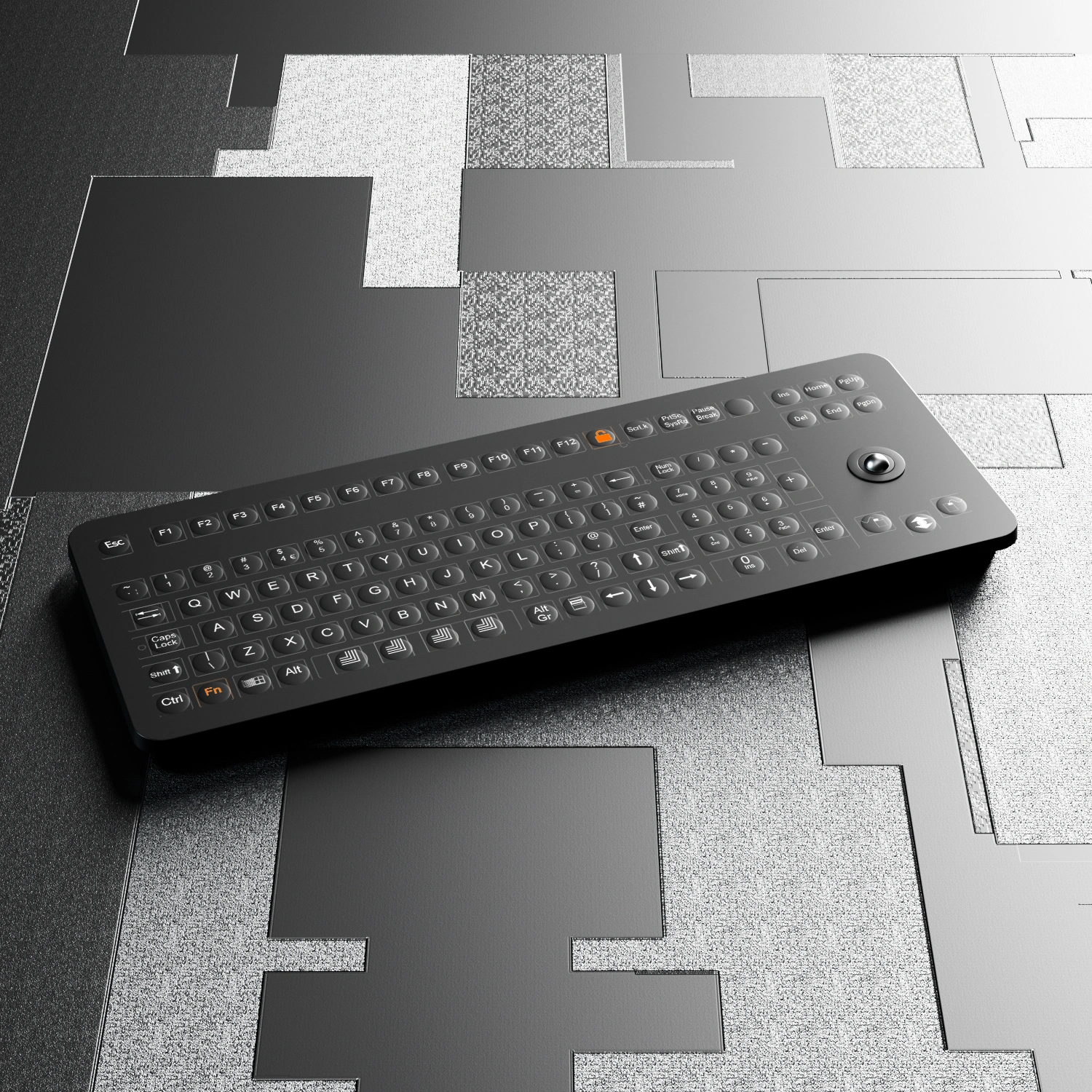

New membrane keyboard with micro switches desk top version
DESCRIPTION:109 keys compact format IP68 rated membrane industrial keyboard with full keyboard functionalities with integrated numeric
keypad and 12 function keys FN (F1,F2...F11, F12) on the upper line, IP68 dynamic sealed and fixed washable 16.0mm MINI optical trackball
module with 800 DPI resolutions for fast and accurate position, totally sealed and ruggedized industrial PCB with super quality OMRON switch
technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, FN+LOCK key for easy cleaning via lock/disable
the entire keyboard without needing to take keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed
on the film underneath will never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments,
VESA mountable desk top version with robust ABS polycarbonate case.
DIMENSIONS:399.0mm x 148.8mm x (20.9-35.6)mm (L x W x H)
MECHANICAL DATA | |
Number of Keys | 109 keys (including 3 mouse buttons) |
Key switch Technology | OMRON switch technology with short stroke 0.45mm for stable and accurate data input |
Actuation Force | 2.0N±0.2N (press point) |
Key Travel | 0.45±0.05mm |
Key switch Lifetime | 1 mil. operations |
Mounting Type | Mountable desktop solution |
Colors | Black |
G.W. | 1.60KGs |
Key Dimensions (print area) | 14.0mm x 14.0mm |
Trackball | IP68 washable 16mm stainless steel optical ball |
Trackball resolutions | 800DPI |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 100mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS, CE, FCC | |
Protection Level | IP68 |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
