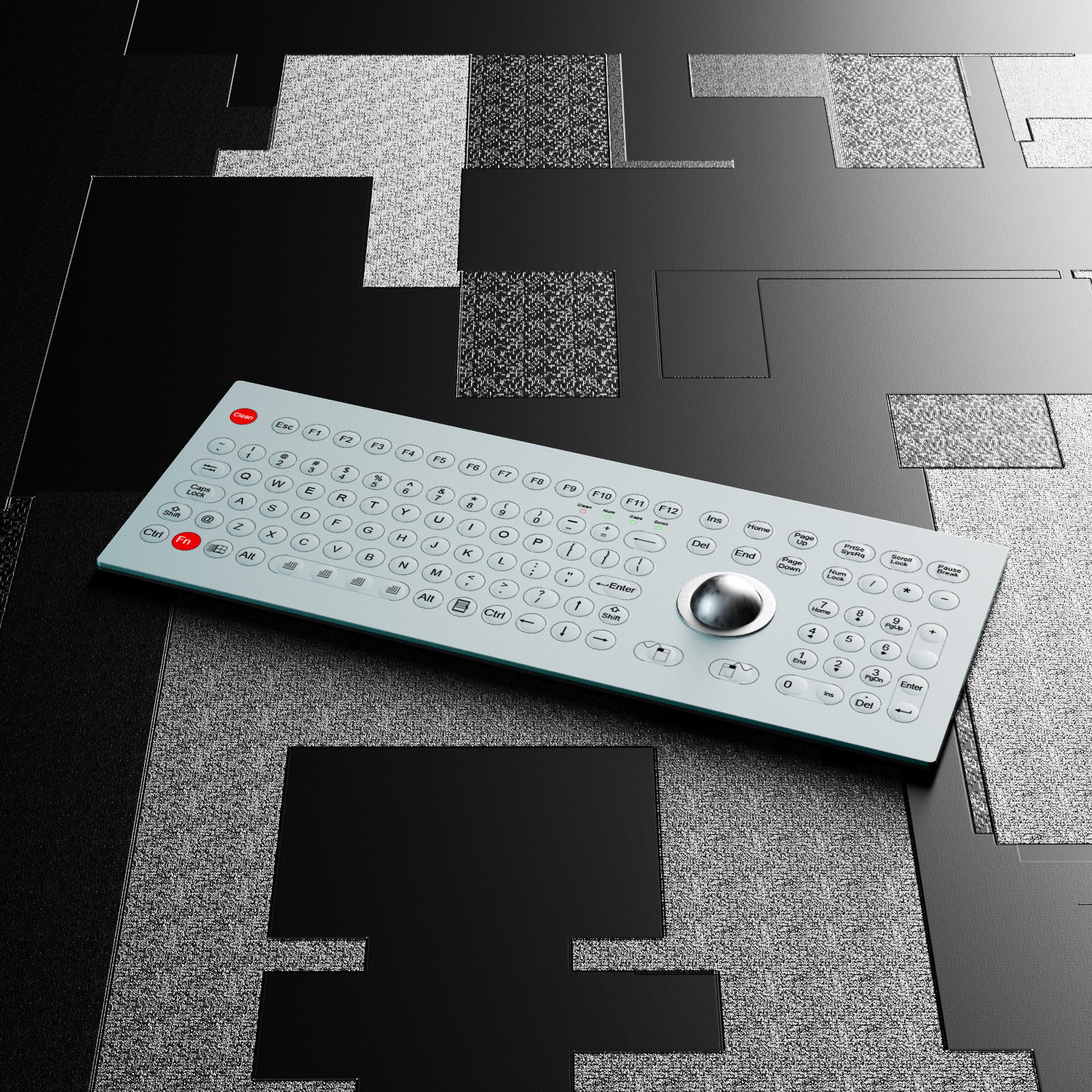

Panel Mount Industrial Membrane touch screen Keyboard
DESCRIPTION:108 keys IP65 dynamic rated industrial membrane keyboard with full keyboard functionalities with integrated numeric
keypad and function keys on the upper line, IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions
for fast and accurate cursor position, 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch technology
with short stroke 0.45mm with extremely good tactile feeling for reliable data input, with Clean key for easy cleaning via lock/disable
the entire keyboard without needing to take the keyboard from PC, surface mounted extremely flush with anti-microbial, durable
and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized aluminum back plate
with sand blasting & oxygenation treatment, top panel mounted.
DIMENSIONS:410.0mm x 160.0mm (top panel)
MECHANICAL DATA | |
Number of Keys | 108 keys (including 2 mouse buttons) |
Key switch Technology | metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys (Omron micro key switch technology optional) |
Actuation Force | 3.5N±0.2N (press point) |
Key Travel | 0.45±0.05mm |
Key switch Lifetime | 1 mil. operations |
Mounting Type | Top panel mounting. |
Colors | 3(white, black, grey) |
G.W. | 1.50KGs |
Key Dimensions (print area) | 13.0mm x 13.0mm |
Trackball | IP68 washable 38mm stainless steel optical ball, or silver hardened resin optical ball |
Trackball resolutions | 800DPI |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 100mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS, CE, FCC | |
Protection Level | IP65 dynamic |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
