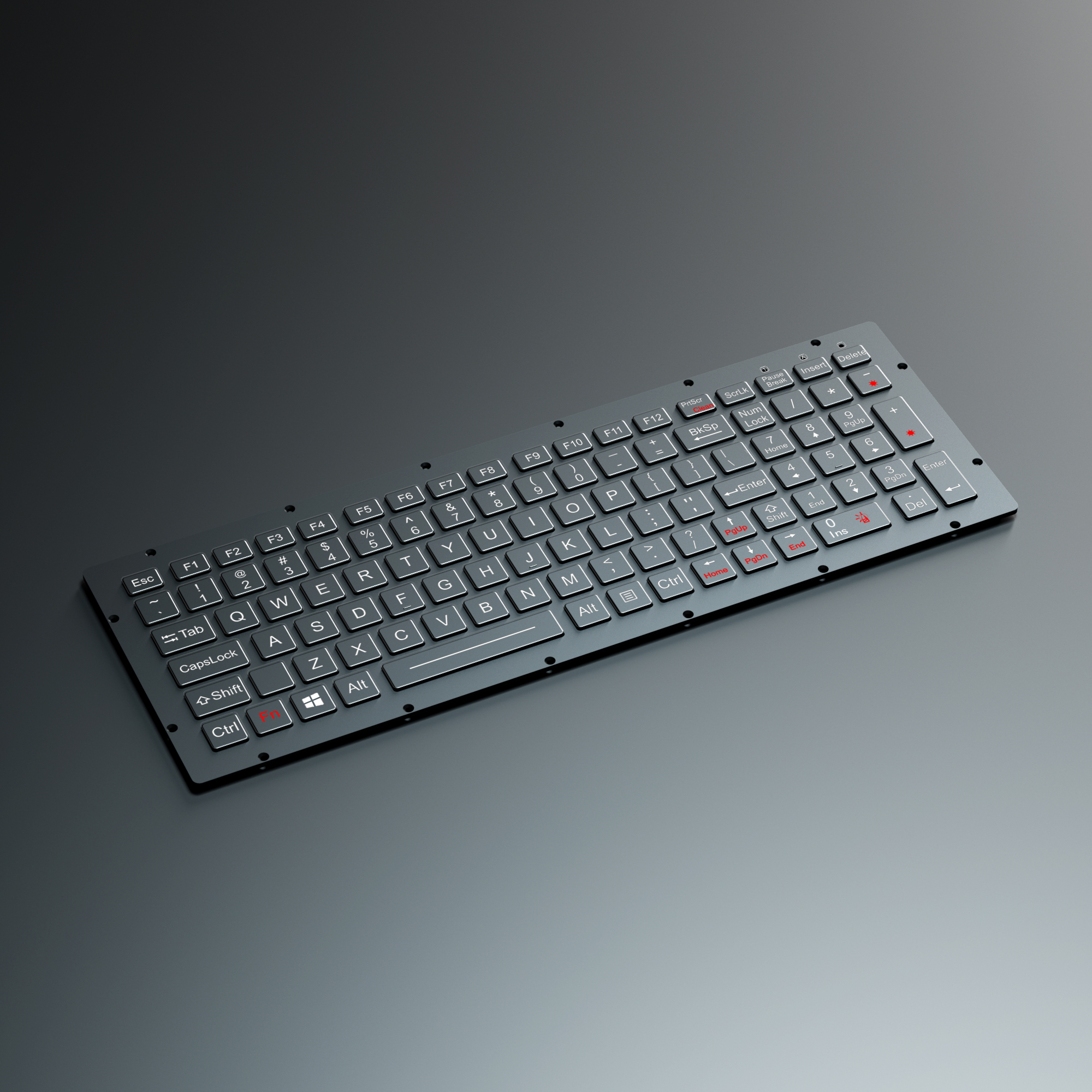

IP65 vandal proof marine keyboard 101 keys aluminum alloy ruggedized military keyboard
-WITH TOUCHPAD OPTIONAL
-FRONT PANEL MOUNTED SOLUTION WITH COUNTERSINL HOLES
-ADJUSTABLE WHITE OR RED BACKLIGHT INCLUDED
DESCRIPTION: 101 keys IP65 dynamic water proof vandal proof ruggedized industrial keyboard with wide temperature, with durable
polymer keys and 12 function keys F1, F2, ... F12 on the top line of keyboard. The high quality ruggedized aluminum alloy top panel is
processed by CNC, industrial sealed and ruggedized PCB with carbon-on-gold key switch technology with stroke 1.20mm with extremely
good tactile feeling for fast and accurate data input without any noise, high quality durable black titanium spray-paint on the aluminum alloy
panel, one complete silicone rubber along the top panel for easy mounting & sealing tightly with cabinet, front panel with countersunk hole
for easy top panel mounting and maintenance. Adjustable backlight included ( White or Red etc). FN + Clean combination keys for easy
cleaning without taking the keyboard away from PC, and avoid mis-operation or mis-typing,USB or matrix output optional.
Dimensions: 334.0mm x 118.0mm (front panel)
MECHANICAL DATA | |
Actuator/keys | 101 keys, durable and robust polymer keys |
Key top style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Actuator/keys materials | polymer |
Plate | High quality ruggedized aluminum alloy top panel processed by CNC |
Key travel | 1.20mm |
Actuation Force | 1.0N±0.2N for key 13.6mm x 13.6mm (pressure point ),1.5N±0.2N for key 13.6mm x 31.6mm (pressure point) |
Switch life | more than 5 million of operations |
Lettering | laser-etched or high quality ink print |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 30mA for keyboard without backlight. |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Switch Contact Material | Carbon-on-Gold key switch technology PCB |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -40℃ to +75℃ |
Storage temperature | -45℃ to +85℃ |
Operating RH | 30-90% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS Compliant, CE and FCC, ESD, MIL-STD-810F (wide temperature, shock, salt mist, vibration, fungus, humidity),MIL-STD-461G (EMC, EMI, EMS, ESD) optional | |
Protection Level | IP65 dynamic (front panel) |
Vandal resistant | IK09 |
Key Lifespan | >5 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Vehicle, aerospace, naval, defense, maritime, Radar, console, portable rugged laptop, UAV ground station etc. |
