IP65 /IP67stainless steel industrial desktop industrial keyboard with touchpad waterproof keyboard backlit keyboard supplier

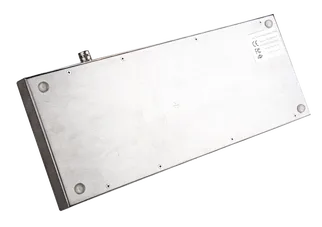

stainless steel industrial military desktop metal keyboard with integrated numeric keypad

Description:

104 keys compact format vandal-proof IP65 (dynamic)desktop blacklight keyboard with integrated numeric keypad (with optional encryption module supporting DES/Tripe DES), with carbon-on-gold key switch technology with long stroke 2.0mm, function keys (F1...F12) are on the top line of the Keyboard for easy operation, Adjustable backlight keyboard is optional.

APPLICATION

• This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air force.
• The KEY-TEK model M405KP-FN series keyboard is an industrial grade keyboard that is environmentally sealed to NEMA 4, 4X, IP65 specifications. This rugged keyboard is housed in a rugged vandal resistant stainless steel enclosure and will stand up to harsh, wet and dirty environments.
• Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A hardened stainless steel front plate and polymer keys ensure the keyboard’s resistance to hard use, abuse and vandalism. A water and impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu based ‘point & click’ application.
• This KEY-TEK keyboard features 104 full-travel keys with silent tactile feedback for fast and accurate data input functionality.The K-TEK model M405KP-FN series keyboard also features NVIS-compliant red adjustable backlighting, which makes this keyboard ideal for military, aviation or vehicle applications where night vision goggles are worn. Ideal applications include in vehicle computing, plant floor, kiosks, control rooms, warehousing and outdoor environments to name a few.

MECHANICAL DATA

• Key: 104 keys
• Key top style: Protuberant rectangular keys.
• Key Size: 11.4mm x 11.4mm for normal keys, 11.4mm x 20.9mm for enter key, 11.4mm x 64.8mm for space bar.
• Key travel: 2.0mm
• Switch life: more than 5 million of operations.
• Lettering: laser-etched or high quality ink print.
• Actuator/keys materials: polymer
• G.W.: 2.8KGs
• Dimensions:404.50mm x 154.5mm x 23.0mm ( L x W x H)

ELECTRICAL DATA

• Supply Voltage: +5V DC +/-5%
• Current Rating: appr. 30mA
• EMC Standard: It is compliance with the council EMC directive 89/336/EEC
  EN55022:1988+A1:2000+A2:2003
  EN55024: 1988+A1:2001+A2:2003
• Emission: EN 50081-1
• Immunity: EN 50082-1
• Lifespan>5 years
• Switch Contact Material: Carbon-on-Gold key switch technology PCB.
• Interface: PS2, USB available.
• OS: DOS/Windows95/98/NT/ME/2000/2003/XP/Vista, Linux, Unix, Mac OSX

ENVIRONMENTAL ADAPTABILITY

• Operating temperature:-20oC to +60oC
• Storage temperature: -30oC to +70oC
• Operating RH: 30-90%
• Atmospheric pressure: 60-106Kpa.
• Saline mist: 96 hours, IEC 60512-6
• Damp heat test at + 40oC: 21 days, IEC 60512-6
• Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

• RoHS Compliant, CE and FCC
• Protection Level: IP65(front panel)
• Vandal resistant IK10
• Key Lifespan >5 million actuations
• MTBF >20000H
• MTTR<30min
