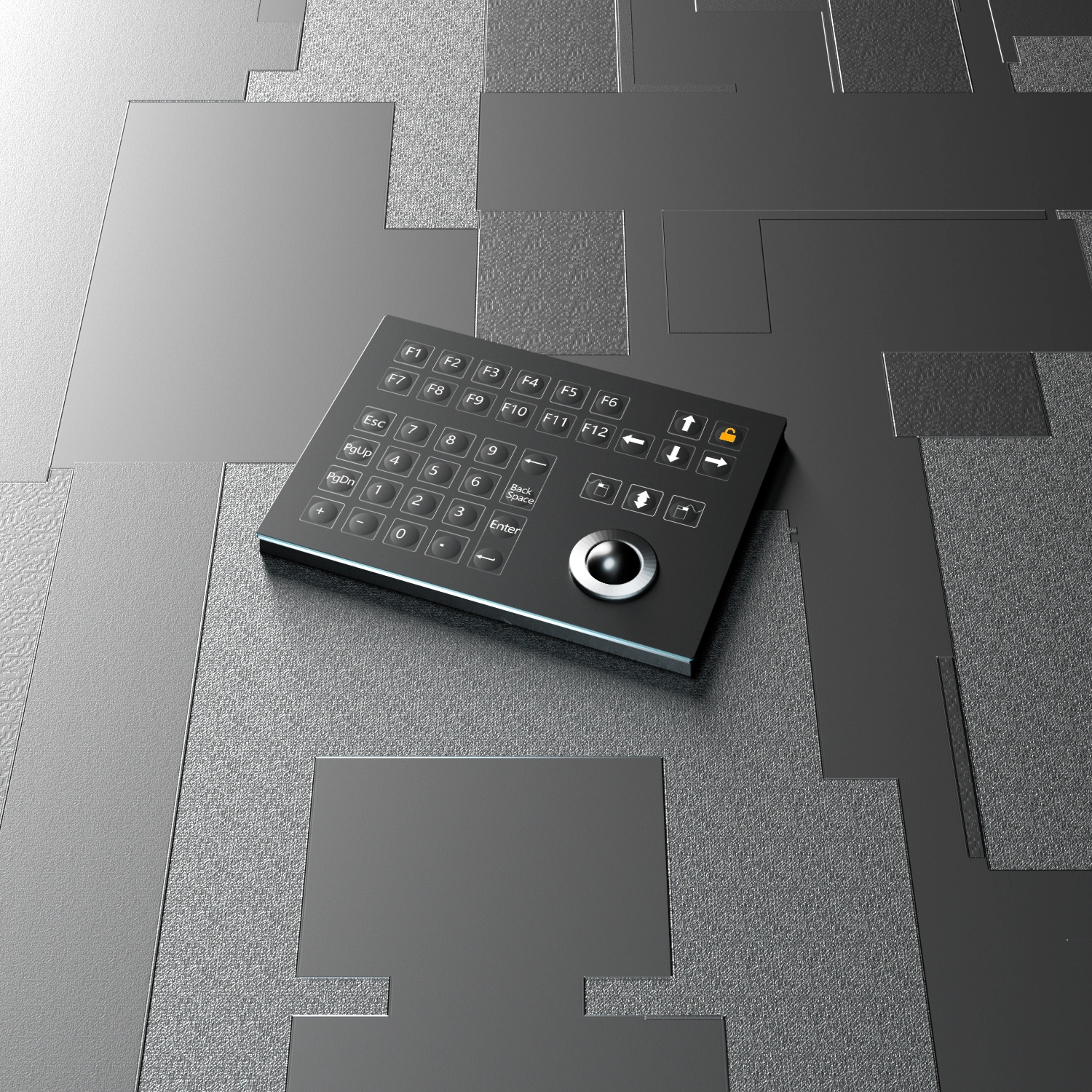

38 Keys Panel Mount Access Control Industrial Fuel Dispenser Membrane Keypad Keyboard with 25mm Trackball
DESCRIPTION:38 keys compact format IP65 dynamic rated membrane industrial keypad, with integrated numeric keypad and function keys
on the upper line, IP65 static rated 25.0mm mechanical trackball module with 400DPI resolutions for fast and accurate cursor position, with 3
mouse buttons for left and right and scrolling function. 2.0mm thickness industrial metal dome PCB with gold-on-gold metal dome key switch
technology with short stroke 0.45mm with extremely good tactile feeling for reliable data input, surface mounted extremely flush with anti-microbial,
durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, ruggedized aluminum plate with
sand blasting & oxygenation treatment, with top panel mounted solution.
DIMENSIONS:182.0mm x 135.0mm(top panel)
MECHANICAL DATA | |
Number of keys | 38 keys (including 3 mouse buttons) |
Key switch Technology | metal dome PCB with gold-on-gold metal dome key switch technology with short stroke keys (Omron micro key switch technology optional) |
Actuation Force | 3.5N±0.2N (press point) |
Key Travel | 0.45±0.05mm |
Mounting Type | Top panel mounting |
Colors | Black |
G.W. | 0.8KGs |
Switch life | more than 1 million of operations |
Trackball | 25mm stainless steel ball or hardened resin ball |
Key Dimensions (print area) | 11.0mm x 11.0mm |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 50mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Saline mist | 96h, IEC60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
Humidity | 100% |
Atmospheric pressure | 60-106Kpa |
RELIABILITY | |
RoHS compliant, CE and FCC certified | |
Protection Level | IP65 dynamic (front panel) |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
