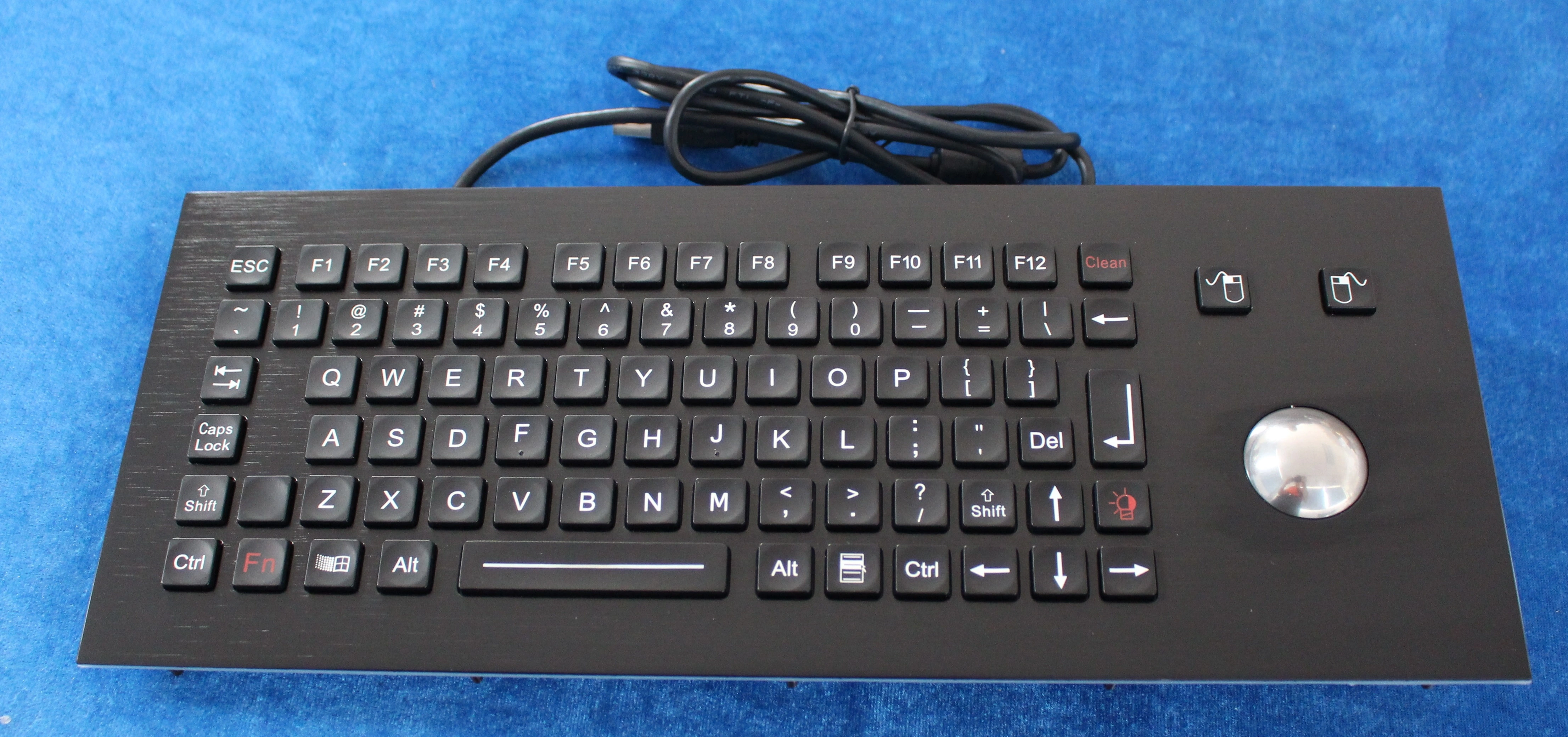

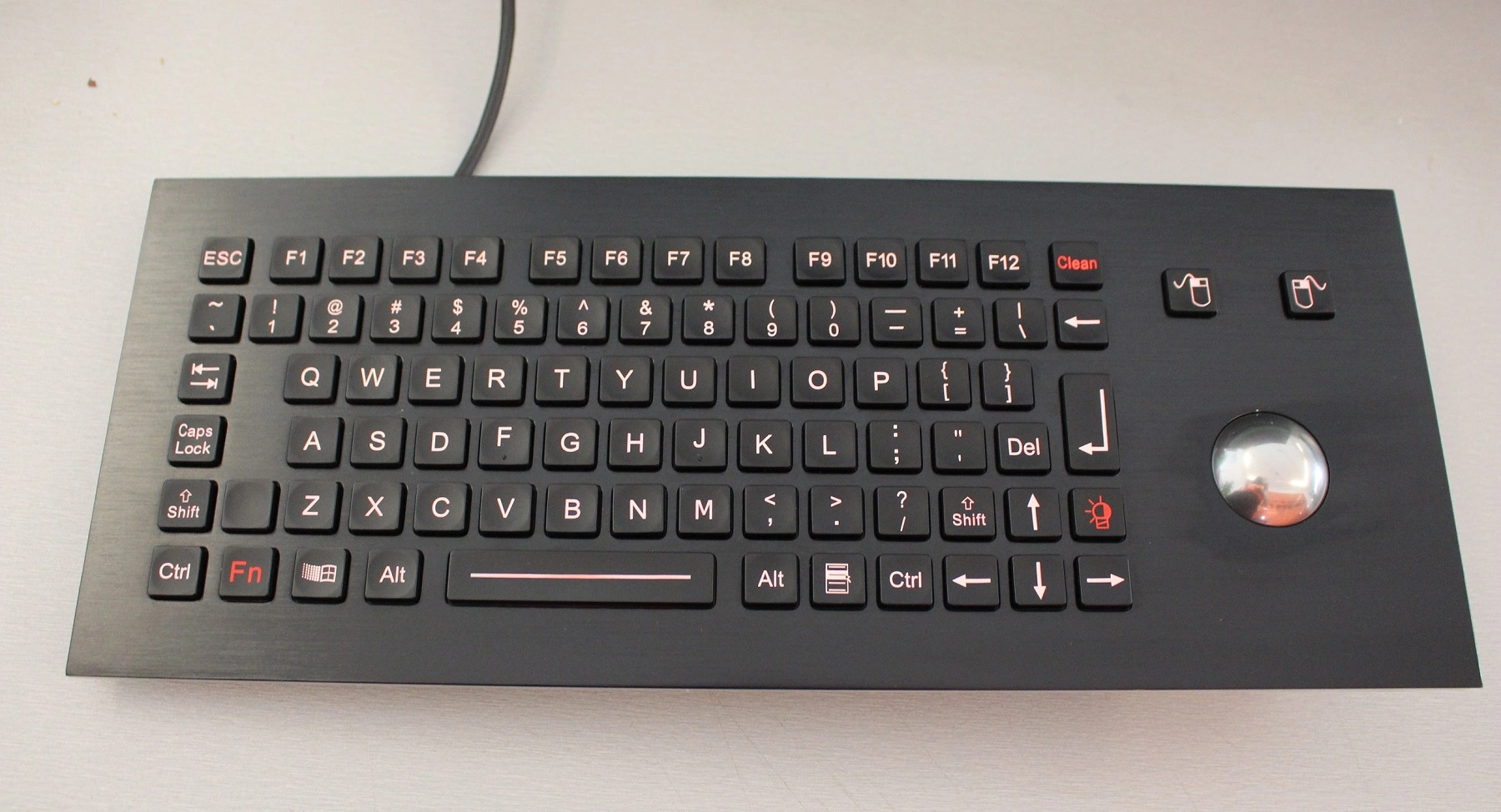

Waterproof marine rugged metal backlight keyboard with 800DPI resolution trackball and polymer keys
DESCRIPTION:85 keys compact format IP67 dynamic water proof vandal proof stainless steel industrial keyboard with
durable polymer keys and IP68 dynamic washable 38.0mm stainless steel optical trackball module with 800 DPI
resolutions for fast and accurate coursor position, with fully sealed and ruggedized industrial PCB with carbon-on-gold key
switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without
any noise, functional keys F1, F2, F3...F10, F11, F12 are on the top line for easy operation. High quality durable black
titanium electroplated on the top stainless steel plate, 3 mouse buttons designed for right & left clicking and scrolling up
and down with ball rolling, strong durable polymer keys caps with laser technology for backlight out, with adjustable
backlight included, stainless steel top plate with sealing gasket and threaded bolts for top panel mounting solution. FN +
CLEAN key to lock/disable the keyboard for easy cleaning without needing to take away the keyboard from PC, which is
good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt,
salt mist etc, direct drain pipe is optional, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 361.0mm x 145.0mm (front panel)
Product Name | waterproof marine rugged metal led backlight keyboard with trackball 800DPI |
Key | 76 keys |
Key Size | 14mm x 14mm for normal keys, 28mm x 14mm for enter key, 68.2mm x 14mm for space bar. |
Layout | US Standard or Other customized layout |
Switch Life | more than 5 million of operations |
Key Travel | 1.5mm |
Actuation Force for buttons | 1.8N+/-0.1N for the normal keys, 2.5N+/-0.1N for the middle keys |
Used | industry, military, marine, and etc. |
APPLICATION
This keyboards is constructed to survive in exposed, unsupervised, public environments, and military as Army, Navy, Air
force.
Their responsive key action ensures rapid, reliable and responsive data entry in tough, wet or hostile conditions. A
hardened stainless steel front plate and polymer keys ensure the keyboard's resistance to hard use, abuse and vandalism.
A water and impact resistant trackball makes this keyboard the complete and ideal solution for PC data entry in menu
based 'point & click' application.
MAIN FEATURES
The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring on
the keyboard.
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the
keyboard away from PC, and avoid mis-operation or mis-typing.
Imposing stainless steel design with durable and scratch-proof black titanium electroplated, specially designed keyboards
meet the highest demands with regard to design, functionality, longevity and high protection level.
Durable and scratch-proof black titanium electroplated stainless steel fascia and key-tops guard willful destruction,
vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof,
operation under hostile environments.
Waterproof execution according to IP67 protection from top panel and other sides without including the bottom side, rear

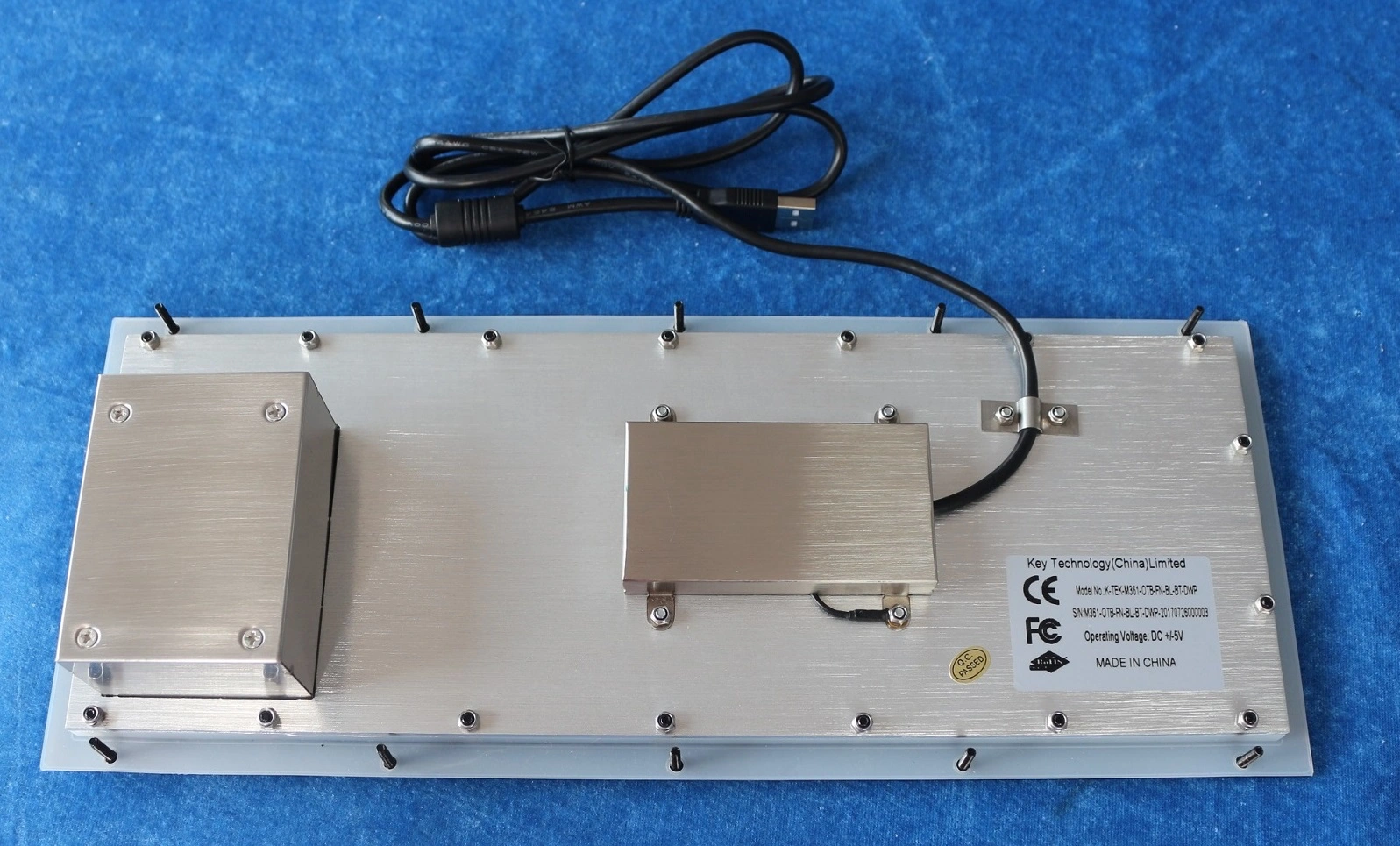

stainless steel plate and sealing gasket with mounting holes or easy tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any
noise. With firm tactile perception for comfortable operation.
Any keyboard layouts are available, key-tops are laser-etched in legends and characters for easy readability, long life to
prevent lettering rub-off.
Polymer keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key
covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug-and-play with PC via PC existing OS driver, no needing of install separate driver.
MECHANICAL DATA
Key: 85 keys
Key top style: Protuberant rectangular keys.
Actuator/keys materials: polymer
Top SS plate: 1.5mm stainless steel plate with super quality durable Black Titanium Electroplated (optional)
Back SS plate: 3.0mm stainless steel plate
Robust polycarbonate frame: Between top SS plate and back SS plate for fixing and mounting keys & gold PCB electronics
controller, with mounting holes along the keyboard mounting edge for fixing keyboard with rear panel mounting.
Key Size: 14mm x 14mm for normal keys, 28mm x 14mm for enter key, 68.2mm x 14mm for space bar.
Key travel: 1.50mm
Actuation Force for buttons: 1.8N+/-0.1N for the normal keys, 2.5N+/-0.1N for the middle keys
Tracker ball: 38mm (1.5') diameter:
IP68 stainless steel optical trackball
Tracking Force for trackball: 228g
Switch life: more than 5 million of operations.
Lettering: laser-etched or high quality ink print.
G.W.: 1.80KGs
Dimensions: 361.0mm x 145mm ( L x W )
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating:
100mA for keyboard and trackball without backlight.
300mA for keyboard and trackball with backlight on.
EMC Standard: EN 55032:2015, EN 55035:2017
Lifespan>5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature: -20℃ to +60℃
Storage temperature: -30℃ to +70℃
Operating RH: 100%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40℃: 21 days, IEC 60512-6
Dry heat test at + 85℃: 10 days, IEC 60512-6
RELIABILITY
RoHS, CE and FCC, ESD
Protection Level: IP67 (front panel)
Vandal resistant IK09
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
