metal kiosk keyboard with trackball
metal kiosk keyboard with trackball
metal kiosk keyboard with trackball

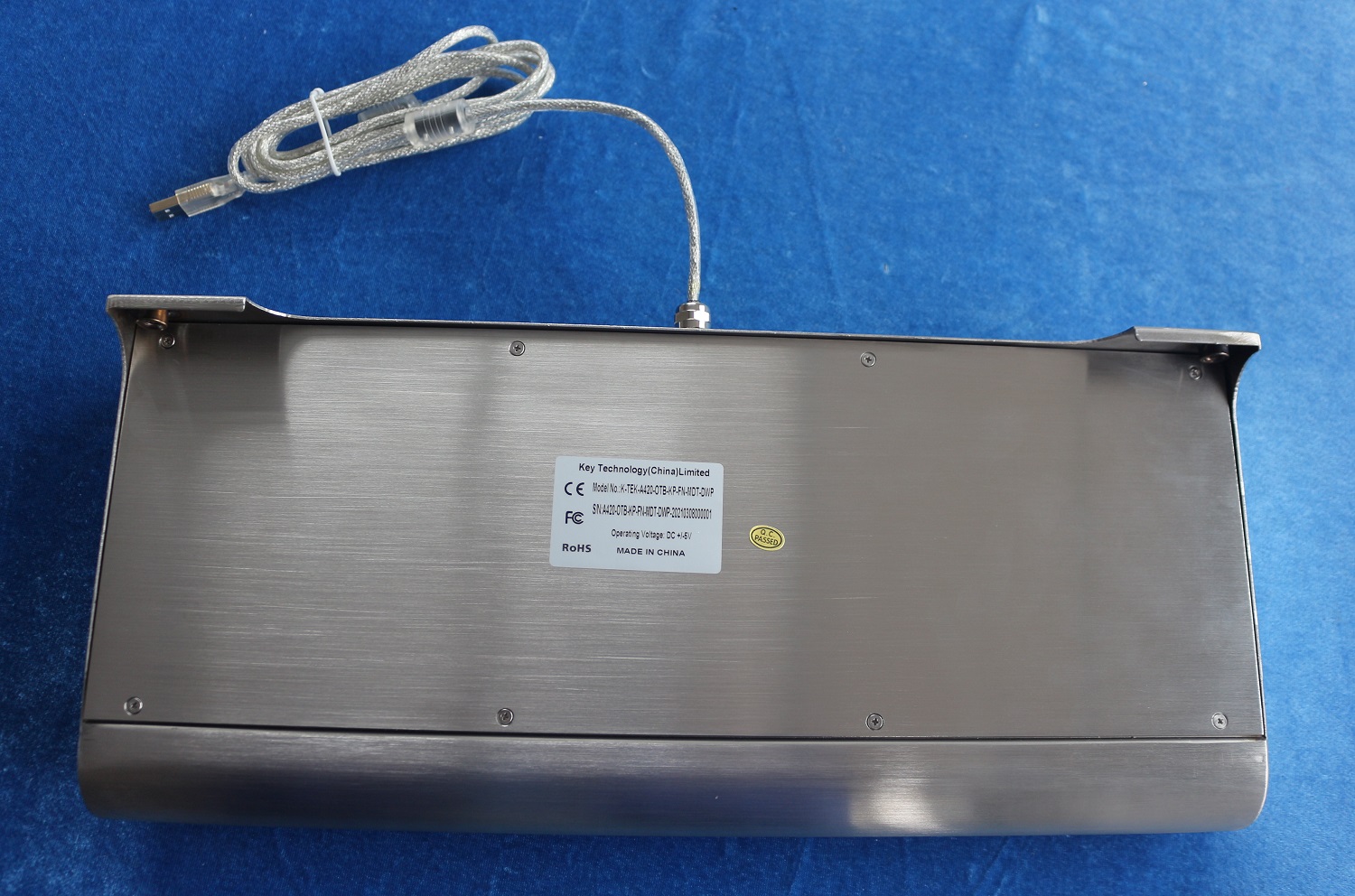

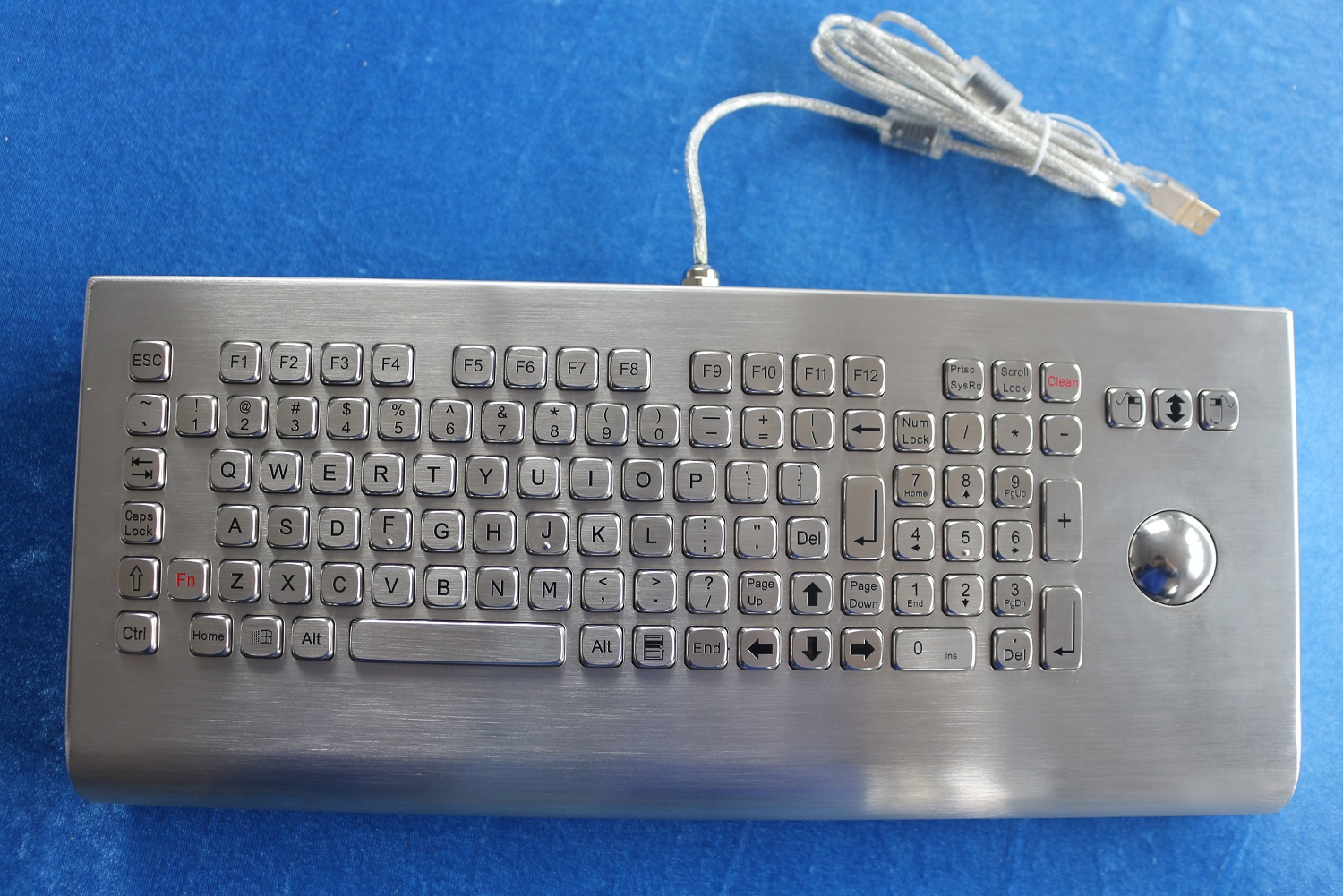

Dirtproof industrial kiosk metal keyboard with optical trackball

K-TEK-A420-OTB-KP-FN-MDT-DWP
minimum order
1 piece
Supply Ability
3000piece / Month
Stock Time
15Day
Quantity
Contact Now
add to cart

MODEL NO.:K-TEK-A420-OTB-KP-FN-MDT-DWP

DESCRIPTION:

102 Keys Compact Format IP68dynamic Vandal Proof Stainless steel industrial keyboard with full keyboard functionalities, with IP68 dynamic rated 38.0mm stainless steel optical trackball module with 800 DPI resolutions for fast and accurate cursor position with extremely smooth operation without any noise, function keys F1, F2..F10, F11, F12 are on the top line for easy operation, numeric keypad, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, wall mounted desktop version. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, IP68 dynamic trackball module with direct drain pipe is optional,without metal parts inside to avoid rust risk and anti-salt spray corrosion.

DIMENSIONS:420.0mm x 181.5mm x 73.0mm (L x W x H)

APPLICATION

  • This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

MAIN FEATURE

  • The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needingto take the keyboard away from PC.

  • Imposing stainless steel design, specially designed keyboards meet the highest demands with regard todesign, functionality, longevity and high protection level.

  • Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proofespecially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.

  • Waterproof execution according to IP68protection from top panel, top stainless steel plate with threadedbolts for easy tightly mounting to enclosure or panel.

  • An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data inputwithout any noise. With firm tactile perception for comfortable operation

  • Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long lifeto prevent lettering rub-off.

  • Metal keys are protected against twisting and levering which can not be dislodged from front, or defacedremoving key covers.

  • Ease of customizing with multiple languages, to accommodate foreign or custom variants.

  • Complete electronic modules including controller in close consultation with our customers are available.

  • PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.

MECHANICAL DATA

  • Actuator/keys:102keys, super quality SUS304 brushed stainless steel

  • Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are

  • available

  • Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for spacebar.

  • Key travel: 2.0mm long stroke.

  • Actuation Force: 1.2N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 2N+/-0.1Nfor key 14.0mm x 28.0mm (pressure point)

  • Switch life: more than 5million of operations.

  • Stainless Steel Housing: super quality brushed stainless steel.

  • G.W.: 3.00KGs

  • Dimensions:420.0mm x 181.5mm x 73.0mm (L x W x H)

ELECTRICAL DATA

  • Supply Voltage: +5V DC +/-5%

  • Current Rating: appr. 100mA

  • EMC Standard: EN 55032:2015EN 55035:2017

  • Lifespan > 5 years

  • Switch Contact Material: Carbon-on-Gold key switch technology PCB.

  • Interface: PS2, USB available

  • OS:All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

ENVIRONMENTAL ADAPTABILITY

  • Operating temperature:-20℃ to +60℃

  • Storage temperature:-30℃ to +70℃

  • Operating RH: 30-90%

  • Atmospheric pressure: 60-106Kpa.

  • Saline mist: 96 hours, IEC 60512-6

  • Damp heat test at + 40oC: 21 days, IEC 60512-6

  • Dry heat test at + 85oC: 10 days, IEC 60512-6

RELIABILITY

  • RoHS Compliant, CE and FCC, ESD

  • Protection Level: IP68(front panel)

  • Vandal resistant IK08

  • Key Lifespan >5 million actuations

  • MTBF >20000H

  • MTTR<30min
