IP65 vandal-proof rugged stainless steel industrial kiosk keyboard with trackball

A343-MTB-FN

minimum order

1 piece

Supply Ability

3000.0piece / Month

Country of Origin

Shenzhen Port

Quantity

Contact Now

add to cart

Product Description

2020 new factory IP65 vandal-proof rugged stainless steel industrial keyboard with trackball

Description
82 keys compact format IP65 static vandal proof stainless steel industrial keyboard with IP65 static rated mechanical trackball module with 400 DPI resolutions with stainless steel 38.0mm ball included, with 12 function keys on the top line for easy operation, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, high quality durable black titanium electroplated on the top stainless steel plate(optional) ,with rear panel mounting.

APPLICATION
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.

Product Name	IP65 vandal-proof rugged stainless steel industrial kiosk keyboard with trackball
Certificates	RoHS compliant, CE and FCC certified, IP65 rated
Dimension	343.0mm x 125.0mm (front panel)

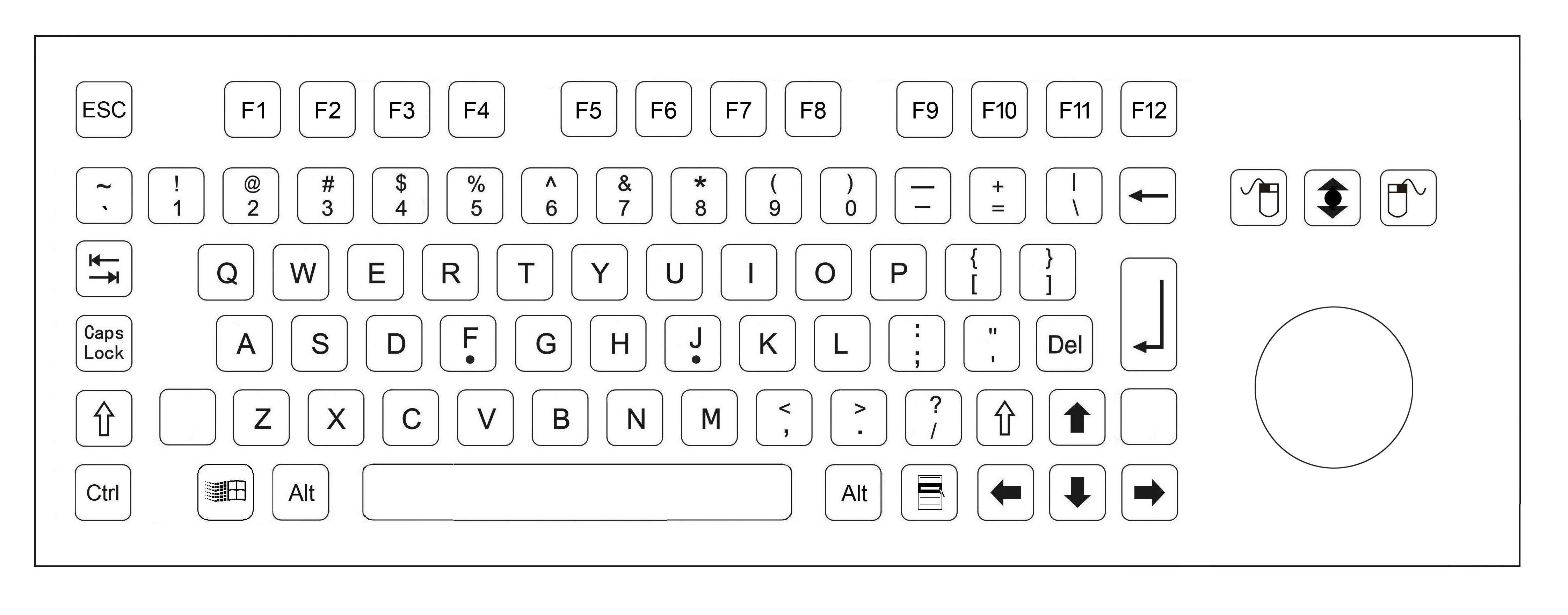

Layout	US Standard or Other customized layout
Trackball lifespan	more than 5 million actuations
Key Size	14.0mm x 14.0mm for normal keys
Vandal Resistant	IK08
Operation Temperature	-20ºC~+ 60º C

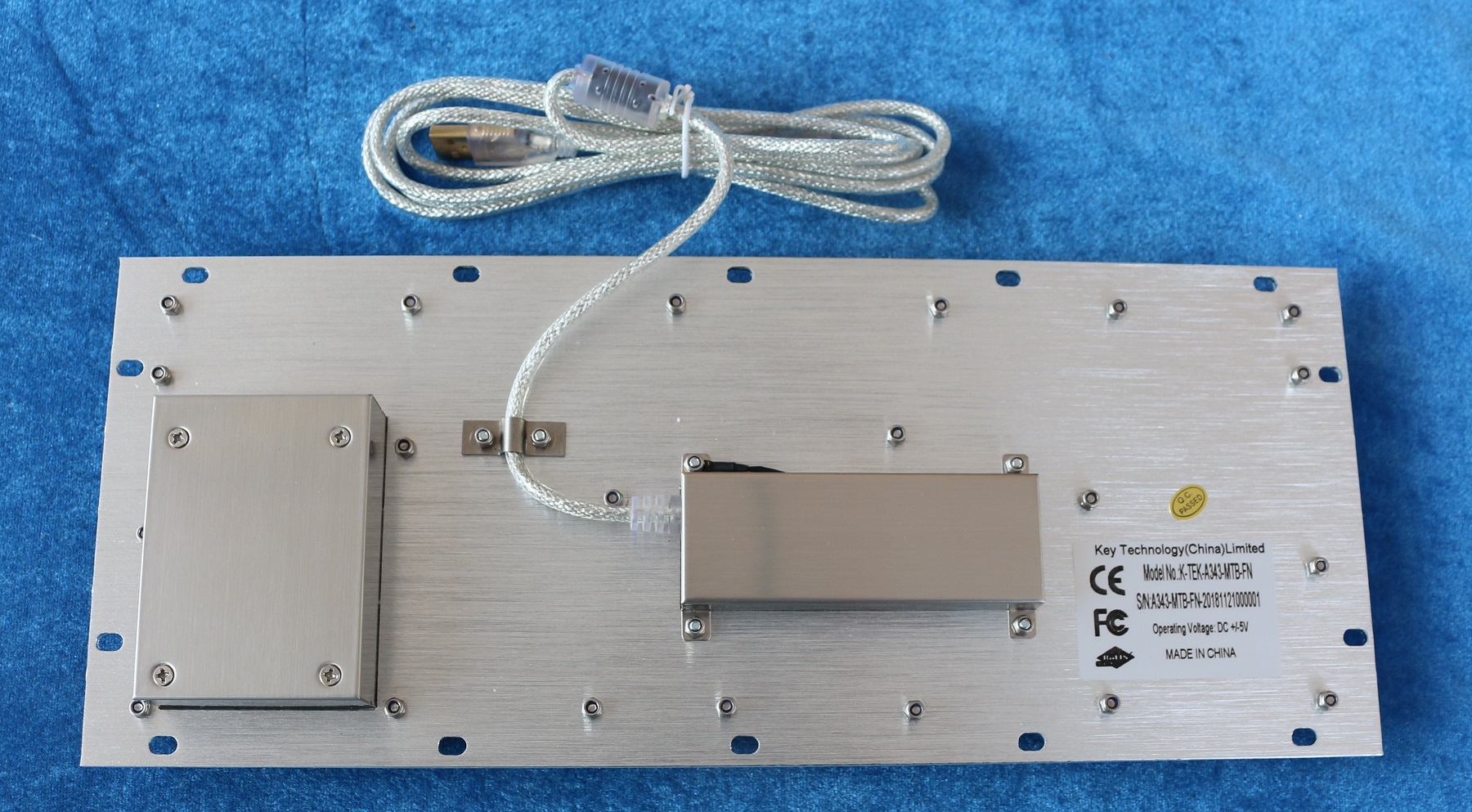

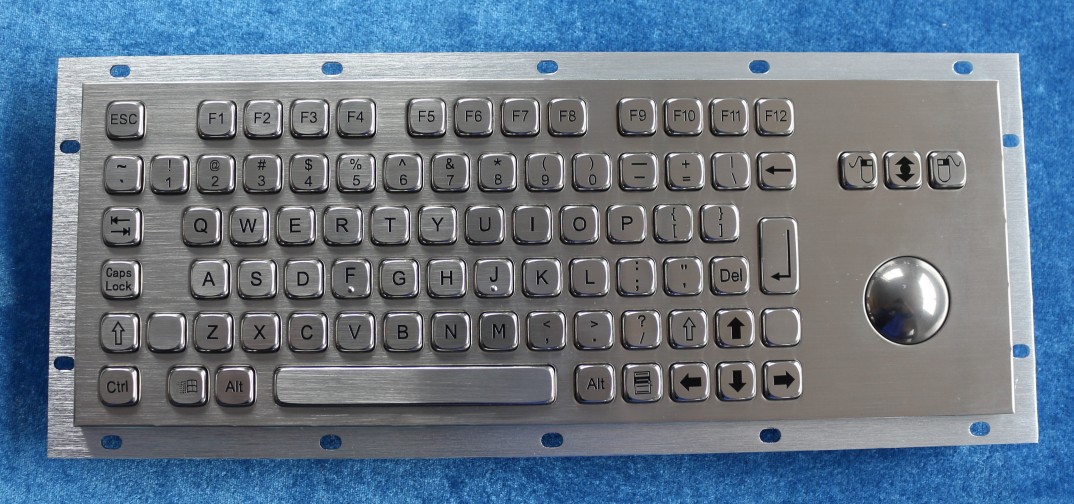

Products Show

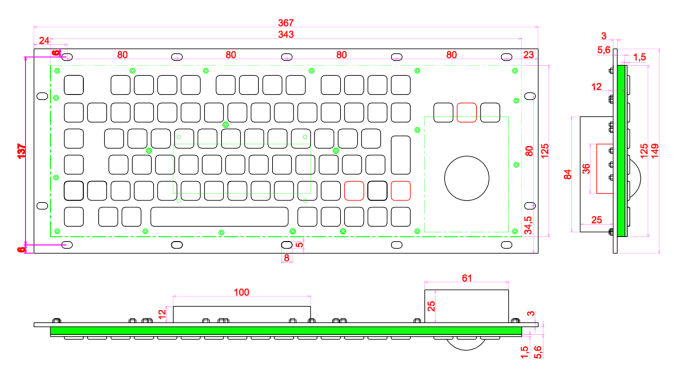

Mechanical Drawing

Data and Advantage

^{MECHANICAL DATA}

Actuator/keys: 82 keys, super quality SUS304 brushed stainless steel Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar. Key travel: 2.0mm Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point) Switch life: more than 5 million of operations. Front Plate: 1.5mm thickness super quality brushed stainless steel Back Plate：3.0mm thickness brushed & oxidized aluminium Tracker ball: 38.1mm (1.5’) diameter, IP65 static 400DPI mechanical trackball, IP68 dynamic washable 800DPI optical trackball, IP68 dynamic 1200DPI laser trackball are all available. G.W.:1.80KGs

ELECTRICAL DATA

Supply Voltage: +5V DC +/-5% Current Rating: appr. 30mA EMC Standard: It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004 EMI: EN 55022: 2010 EMS: EN 55024:2010 Lifespan > 5 years Switch Contact Material: Carbon-on-Gold key switch technology PCB. Interface: PS2, USB available OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).

OUR ADVANTAGES

Key Technology China Limitedserves distributors and end users in several different industries and is constantly developing cutting-edge professional products. In addition, Key Technology China Limited can provide ideal solutions for original equipment manufacturers and can customize any of its products to meet its customers' specific needs. The Indestructible Industrial Metal Keyboards and Pointing Devices are long lasting and stand up in environments where your typical office grade peripherals will not survive.

Advantages Include:
Super quality, Reasonable price, Quick delivery, Comfortable professional daily customer service, reliable and professional technical support and after service etc.
Industrial durability ratings ranging from NEMA 12 to NEMA 4X, which allow for use in extremely dirty, dusty and greasy environments.
