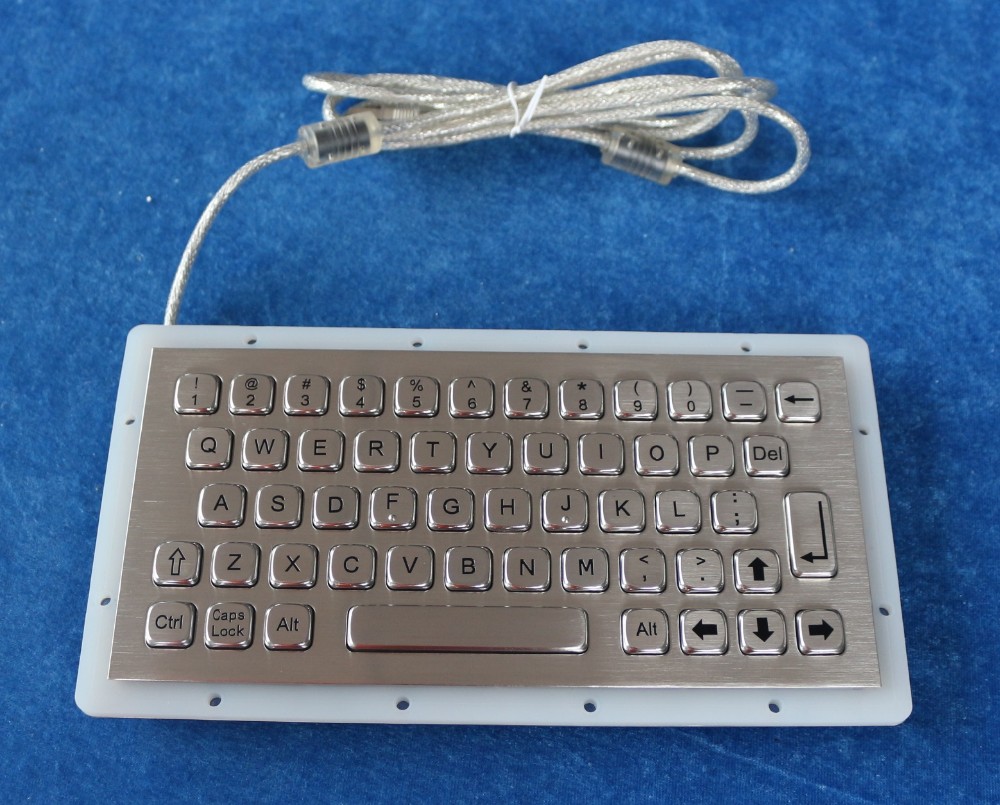

stainless steel mini usb economic mechanical waterproof keyboard

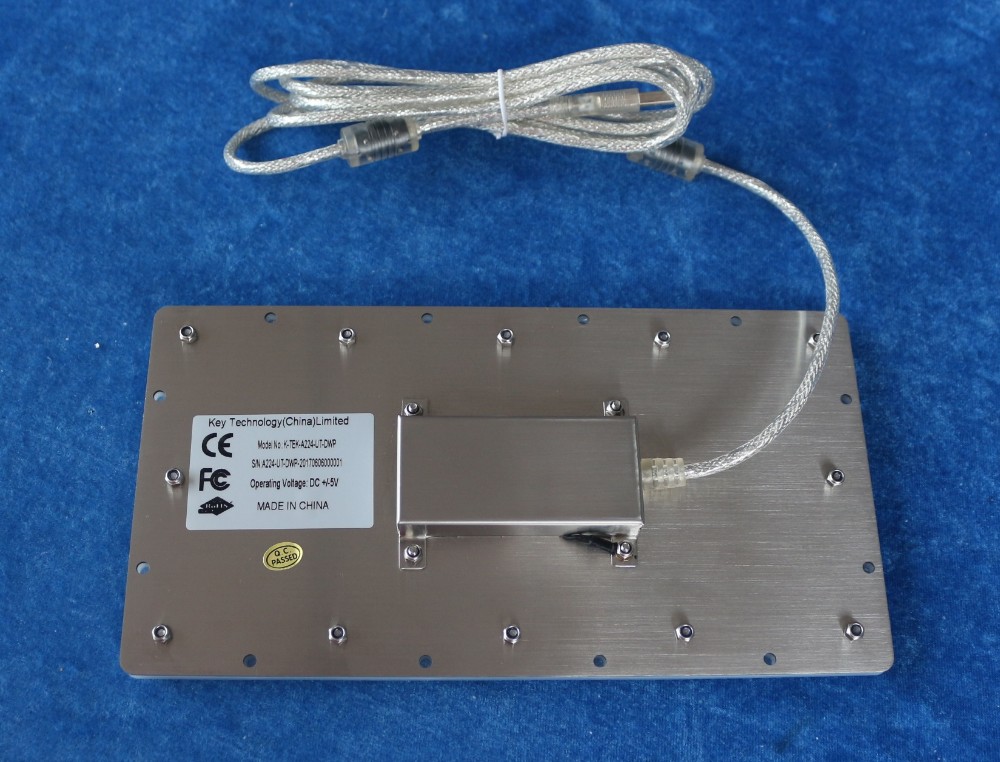

53 keys ultra thin IP67 dynamic water proof rated vandal proof stainless steel industrial keyboard with industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, rear stainless steel plate with mounting holes and water-tight gasket for easy sealing and tightening with cabinet or panel, rear panel mounting. Industrial backlight optional (Red/blue/white/green optional).
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion
Product Name | stainless steel mini usb economic mechanical waterproof keyboard |
Material | stainless steel |
Key Size | 53 keys, super quality SUS304 brushed stainless steel |
Layout | US Standard or Other customized layout |
Switch Life | more than 5 million of operations |
Key Travel | 2.0mm |
Key Top Style | Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available |
Application | industry, marine, and etc. |
MECHANICAL DATA
Actuator/keys: 53 keys, super quality SUS304 brushed stainless steel
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 2.0mm
Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 10 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate：3.0mm thickness brushed & oxidized aluminium
G.W.: 1.0KGs
Dimensions: 224.0mm x 110.0mm (front panel) , 243.0mm x 129.0mm (back panel)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008；IEC 61000-4-3:2006+AI:2007+A2:2010；IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP67
Vandal resistant IK08
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30mi
