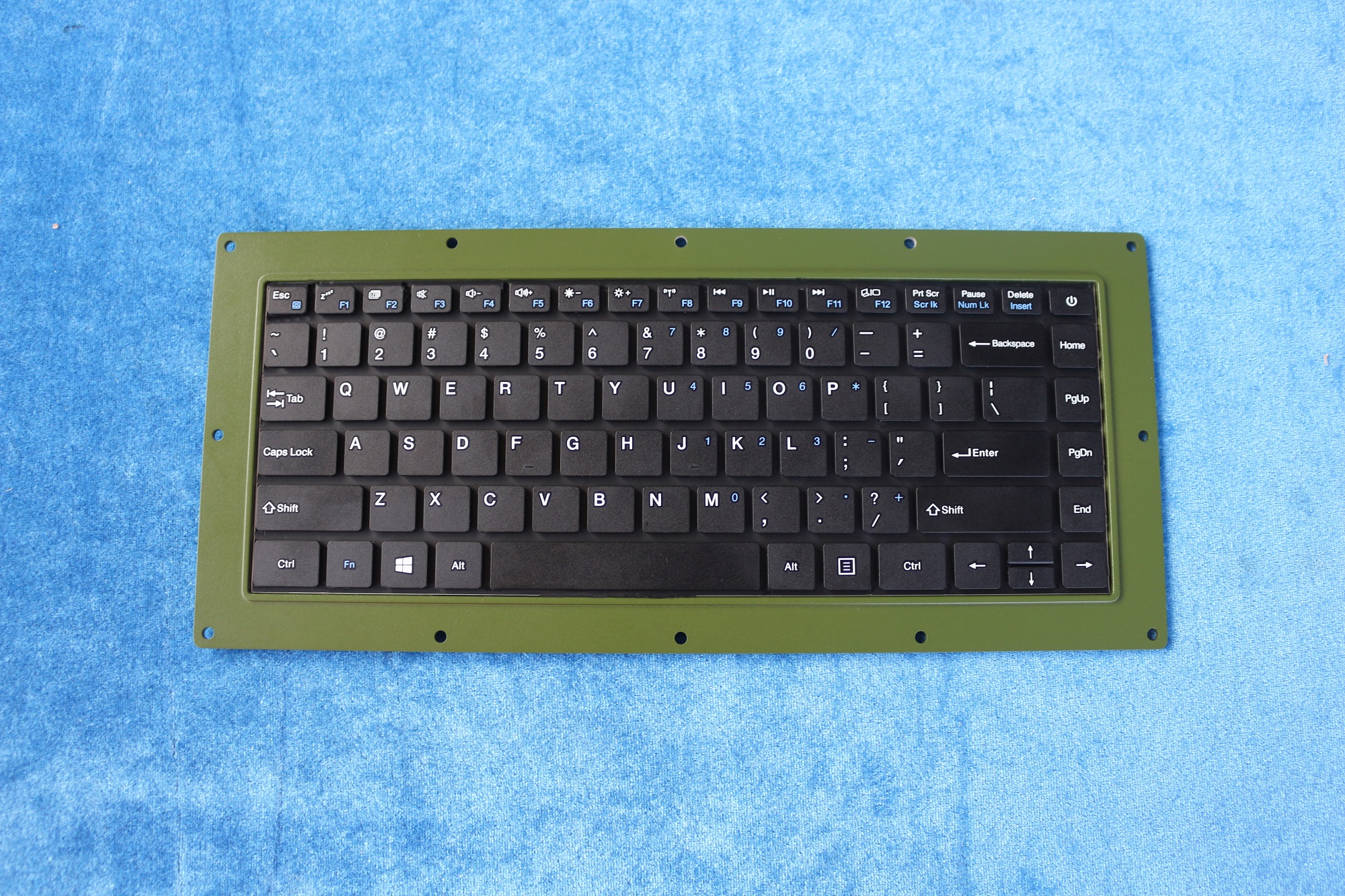

super slim scissors switch types panel mounted laptop keyboard
Product name:super slim scissors switch types panel mounted laptop keyboard
DIMENSIONS : 301.2mm x 117.5mm x 8.6mm
DESCRIPTION: 86 keys IP67 dynamic sealed & ruggedized military keyboard with military electronics PCB included, 12 function keys on top line for easy operation, military PCB with Scissors Angle key switch technology with long stroke (1.50mm) with extremely good tactile feeling for fast and accurate data input without any noise, panel mounted version with mounting holes on the edge for easy mounting, Military Level.
This ruggedized and compact design keyboard can be good for working in low-light areas, it is with LED backlighting. Engineered for NEMA 4X protection from dust, water and corrosive liquids. This keyboard is ideal for below wide applications:
MEDICAL: lab, hospital, clinic, dental, such as carts, diagnostic equipments, operation rooms, dialysis centers etc;
MATERIAL HANDLING: mobile keyboard, data entry, assembly line etc
MILITARY: Army, Navy, Air force
INDUSTRIAL: Industrial automation, pharmaceutical, oil and gas, food and beverage, clean or dirty manufacturing environments, warehouses
Product Name | super slim scissors switch types panel mounted laptop keyboard |
Key | 86 keys |
Key Size | 18.0mm X 18.0mm for normal keys, 27.5mm x 18.0mm for enter key and 37.0mm x 18.0mm for space bar key. |
Layout | US Standard or Other customized layout |
Switch Life | more than 5 million of operations. |
Key Top Style | Protuberant rectangular keys with tactile feeling |
Used | industry, military, marine, and etc. |
MAIN FEATURE:
Keyboard provides full-size versatility in a rugged, compact design, rugged construction for reliable functionality
Special durable-coating for excellent mechanical and chemical resistance
Scissor Angle key switch with firm tactile key feel, key travel 1.5mm key travel.
Actuation Force: Square key: 0.5N+/-0.1N Rectangular key: 0.8N+/-0.1N
Ease of customizing with multiple languages, to accommodate foreign or custom variants.

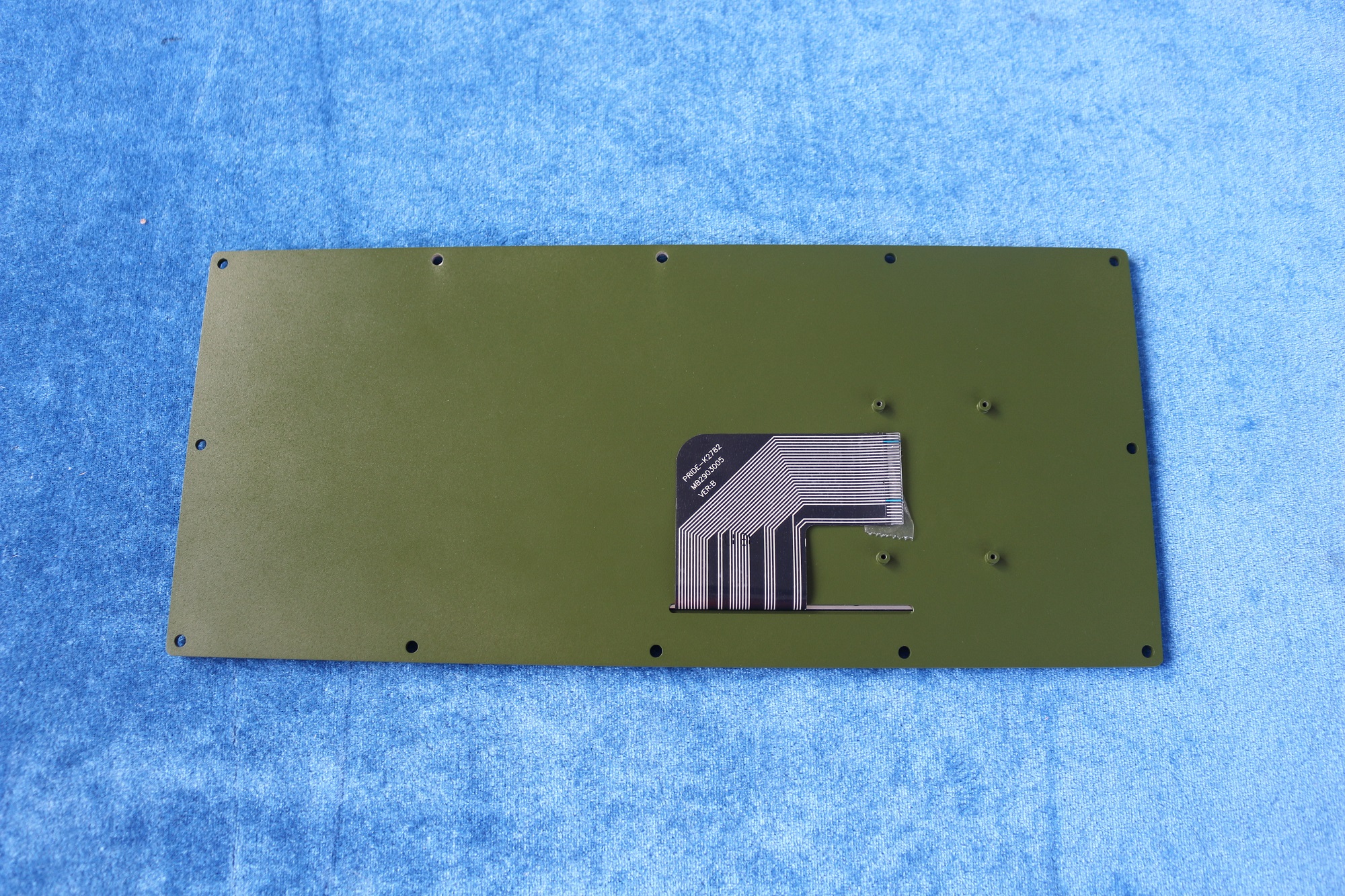

Durable special polymer strong panel with mounting holes.
Key life: 5 millions
MECHANICAL DATA
Key: 86 keys
Key top style: Protuberant rectangular keys with tactile feeling.
Key Size: 18.0mm X 18.0mm for normal keys, 27.5mm x 18.0mm for enter key and 37.0mm x 18.0mm for space bar key.
Switch life: more than 10 million of operations.
G.W.: 0.50KGs
Dimensions: 301.2mm x 117.5mm x 8.6mm
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: EN 55032:2015 EN 55035:2017
MIL-STD-810F (wide temperature, shock, vibration, humidity)
Lifespan> 5 years
Switch Contact Material: Carbon-on-Gold key switch technology with gold PCB.
Interface: matrix interface
Cable lengh: customized length available.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20℃ to +60℃
Storage temperature: :-30℃ to +70℃
Saline mist:96h, IEC60512-6
Damp heat test at +40℃: 21 days, IEC 60512-6
Dry heat test at +85℃: 10 days, IEC 60512-6
Humidity: 100%
Atmospheric pressure: 60-106Kpa
Shock: 3x11 ms pulses of 50g on each of 3 axes
Vibration: POWER SPECTRAL DENSITY: 0.04g/Hz, FREQUENCY RANGE: 20Hz - 2kHz, DURATION OF TEST PER AXIS: 3 hours
Flammability
RELIABILITY
RoHS , CE, FCC
Protection Level: IP67
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
