vandal proof ruggedized industrial oem usb wired touchpad for outdoor application

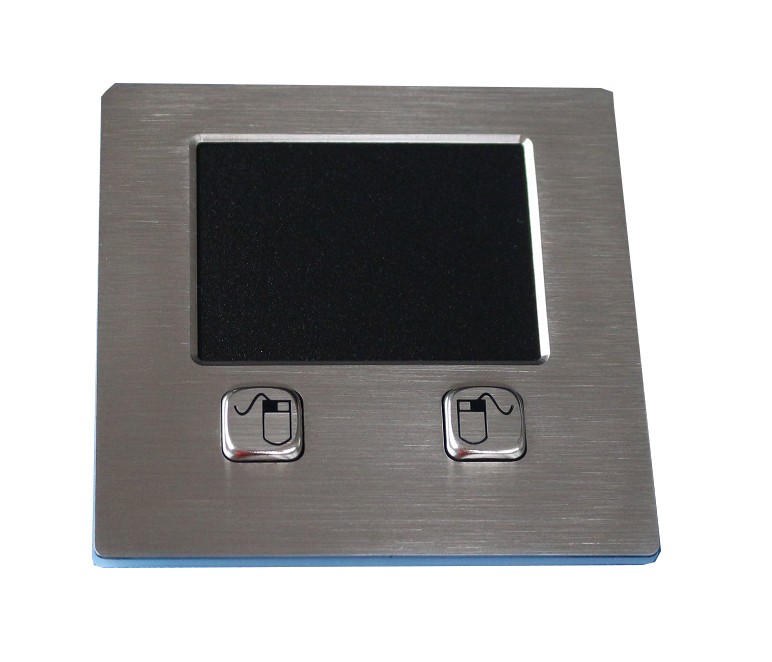

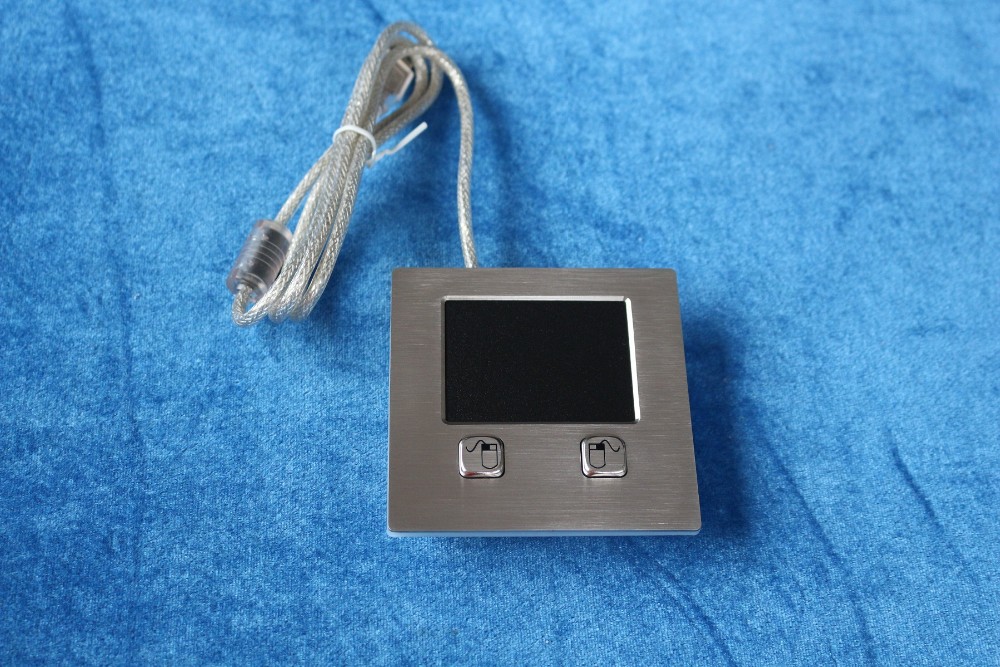

IP67 dynamic Sealed and Ruggedized Tough Touchpad for fast and accurate cursor position, with 2 raised IP65 dynamic sealed stainless steel mouse buttons under touchpad, the electronics controller module shielded and with rubber sealing gasket under top stainless steel plate for easy sealing and tightly mounting with cabinet, stainless steel top plate with threaded bolts for top panel mounting solution. High quality durable black titanium electroplated on the top stainless steel plate with threaded bolts for top panel mounting solution.
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
Dimension: 95.0mm x 95.0mm (front panel)
Mechanical Data
Mechanical Front Plate :Quality brushed stainless steel
Touchpad thickness: 1.5 mm PCB thickness inclusive of mylar layer
Validated touch width: 45.00mm (max)
Validated touch length: 60.00mm (max)
Mounting Rack: Aluminum alloy

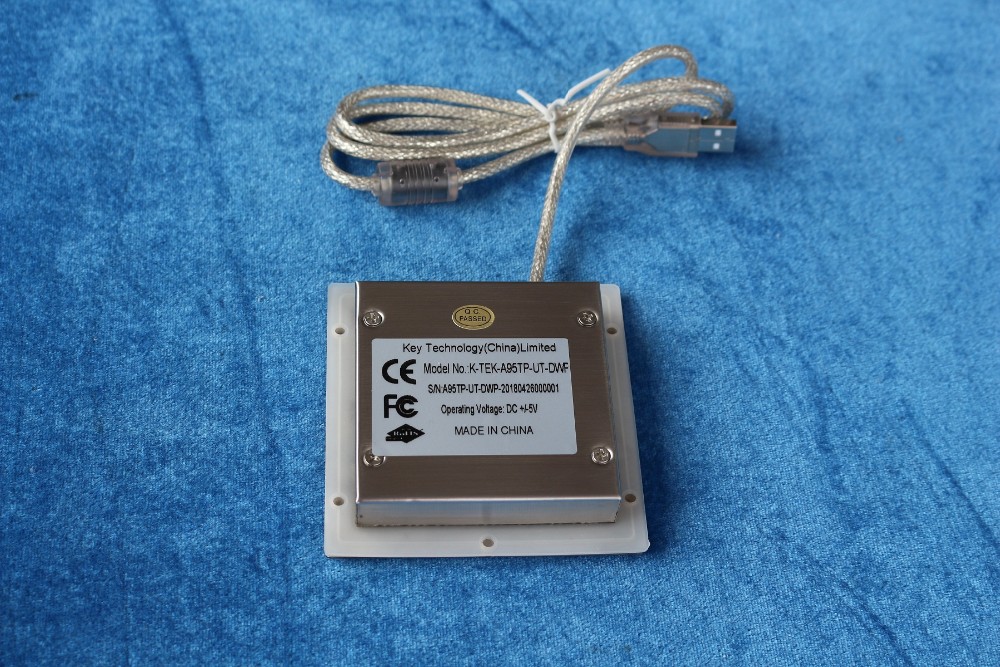

Back Metal Cover : Rear side integrated electronics protected by a metal cover
Touchpad lifespan: > 5 Mio times
Dimensions Touchpad: 60.0mm x 45.0mm;
Front Mounting Panel: 95.0mm x 95.0mm (front panel),
Rear Mounting Panel: 80.0mm x 80.0mm
Interface: PS2 and USB both available
Electrical Power supply: 5V DC+ 10%,
Work current: 4.0 mA (normal)
X/Y position sensing resolution: 1000 points/inch (40 points/mm)
X/Y position reporting: Relative
Tracking speed: Maximum 1,016 m/sec
Protection level: IP67 dynamic (front panel)
Static Release: 15 KV (front panel)
EMC Standard: EN55022(B)
Environmental Operating temperature: -20°C to +60°C
Storage temperature: - 30°C to + 70°C
Operating RH: 10%-95%
Atmospheric pressure: 60-106Kpa
Reliability: MTBF >20000h
MTTR : < 30min
Key switch lifespan: >5 million actuations
OS : All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)
Packing Details Each unit to a suitable brown inner box, suitable brown inner boxes to a standard export carton.
