top panel mount stainless steel keyboard
Description

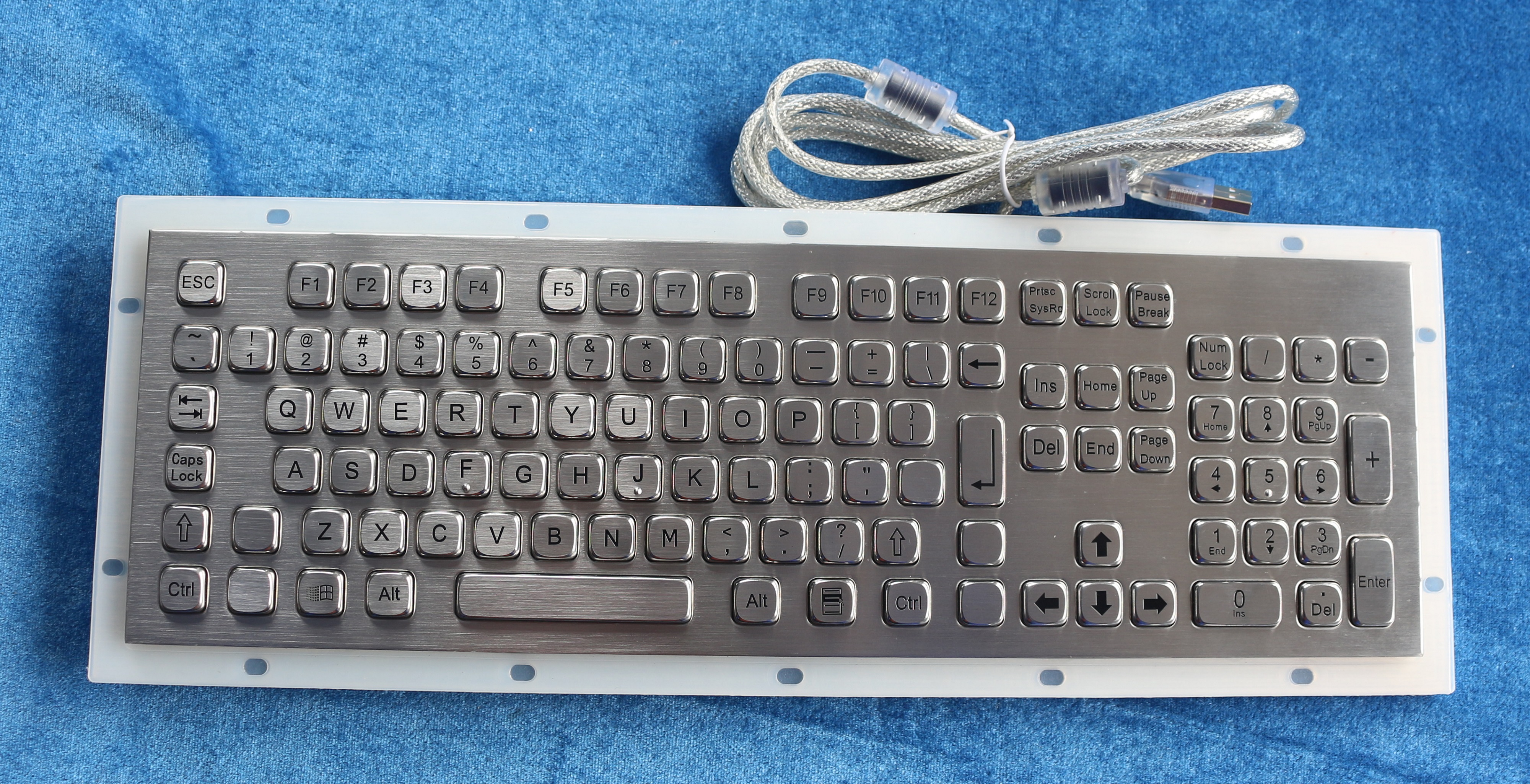

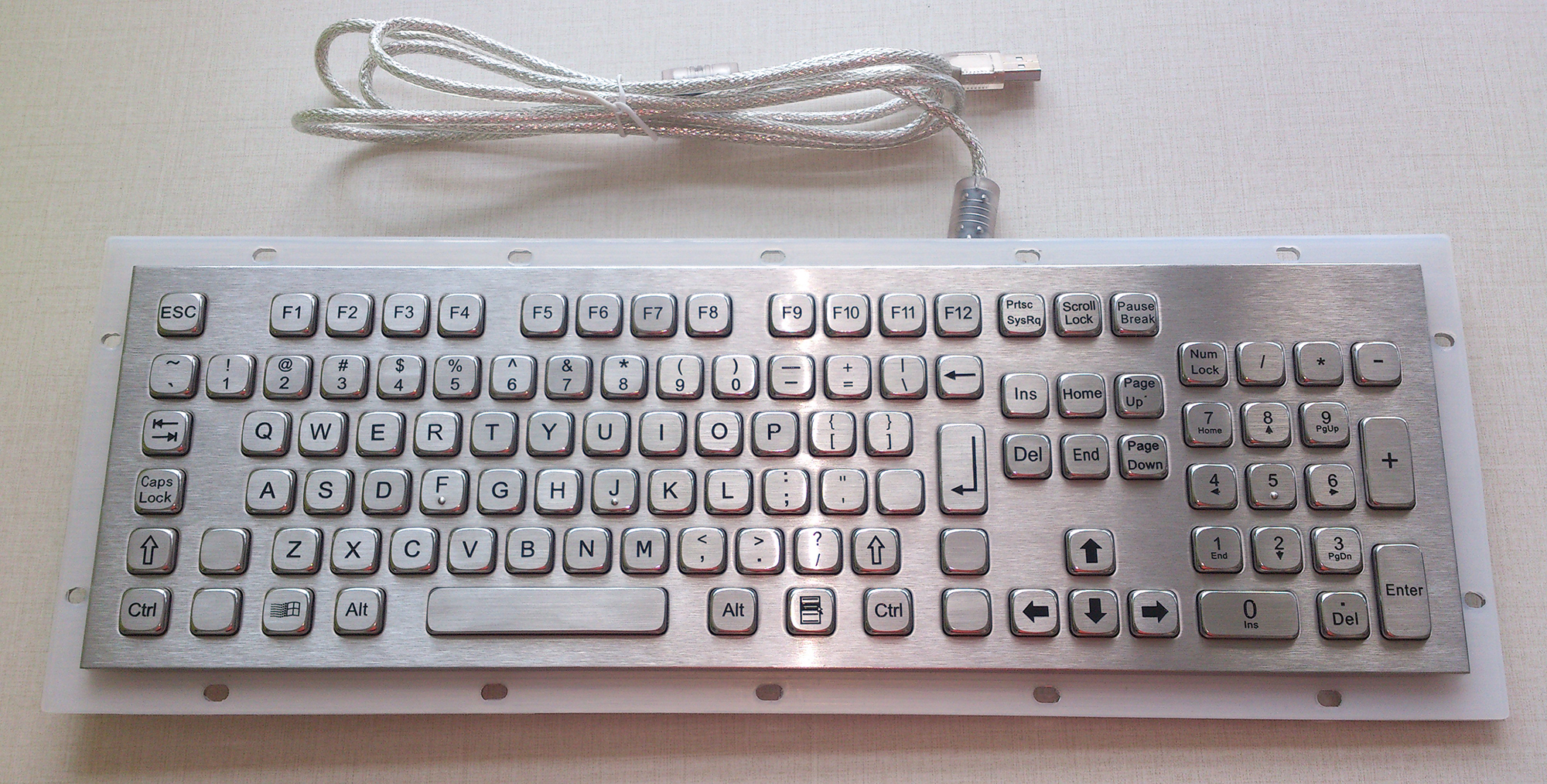

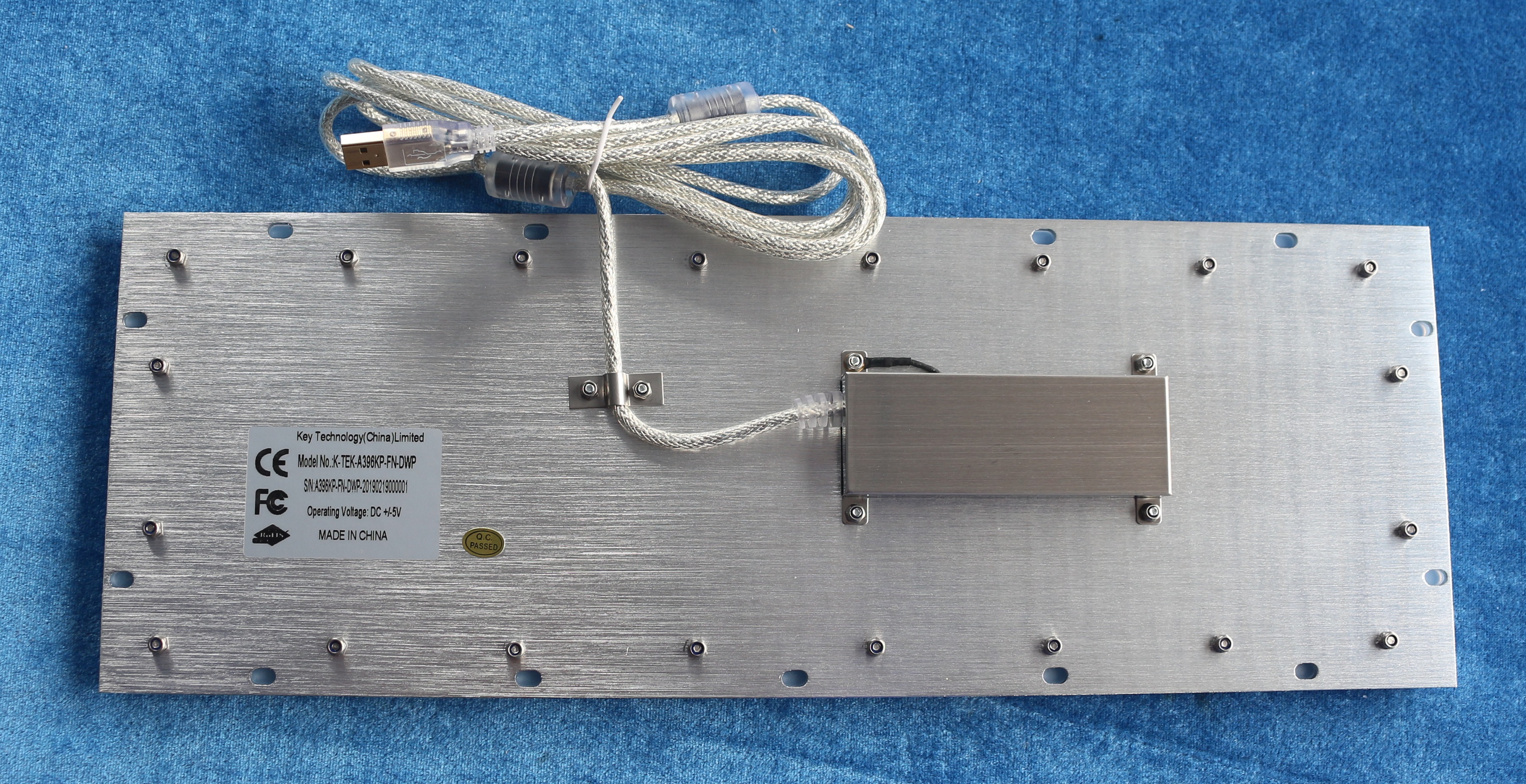

111 keys compact format IP67 dynamic water proof vandal proof stainless steel industrial keyboard with fully sealed and ruggedized industrial PCB electronics controller with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, with integrated numeric keypad, function keys F1, F2..F10, F11, F12 are on the top panel for easy operation. 3.0mm aluminum back plate with water-tight gasket for easy and tightened sealing with cabinet or panel, rear panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
Application
This Keyboard is mainly targeted for use for unsupervised or semi-supervised positions of varied access applications, internet terminals and information kiosks at universities, shopping malls, hotels, banks, airports, and railway-stations and other public areas, ticket vending machines, gas stations, cash machines (ATMs/CDM), Internet public phones etc.
Product Name | vandal proof top panel mount stainless steel keyboard with big keys |
Certificates | RoHS compliant, CE and FCC certified. |
Front Plate | 1.5mm thickness super quality brushed stainless steel |
Layout | US Standard or Other customized layout |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar |
Vandal Resistant | IK08 |
Operation Temperature | -20ºC~+ 60º C |
MAIN FEATURE
The keyboard can be dynamic washable with water and other liquids, it can work well even under direct water pouring On the keyboard.
The full keyboard can be locked/disabled via FN + Clean combination keys for easy cleaning without needing to take the keyboard away from PC.
Imposing stainless steel design, specially designed keyboards meet the highest demands with regard to design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP67 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation.
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.
MECHANICAL DATA
Key top style: Protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 70.0mm for space bar.
Key travel: 2.0mm
Actuation Force: 0.6 N+/-0.1N for key 14.0mm x 14.0mm (pressure point ), 1.2 N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel
Back Plate:3.0mm thickness brushed & oxidized aluminum
G.W.:1.5.0KGs
Dimensions: 396.0mm x 125.0mm (front panel)
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 100mA
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available
OS: All windows, Linux, Unix, Mac OSX
