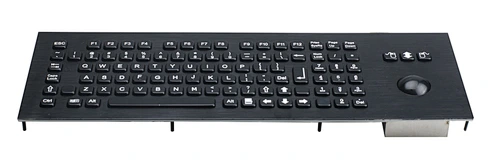

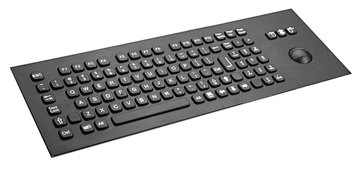

Washable industrial custom black trackball keyboard with numeric keypad
101 Keys Compact Format IP65 static Vandal Proof Stainless Steel industrial Keyboard with full keyboard functionalities, with IP65 static rated mechanical trackball module with 400 DPI resolutions with all black 38.0mm hardened resin ball included, industrial PCB with carbon-on-gold key switch technology with long stroke (2.0mm) with extremely good tactile feeling for fast and accurate data input without any noise, with numeric keypad, function keys F1, F2..F10, F11, F12 are on the top line for easy operation, 3 mouse buttons designed for right & left clicking and scrolling up and down with ball rolling, high quality durable black titanium electroplated on the top stainless steel plate, stainless steel top plate with threaded bolts for top panel mounting solution.
Product Name | industrial pcb custom black trackball keyboard with function keys and number pad |
Certificates | RoHS compliant, CE and FCC certified. |
Dimension | 420.0mm x 145.0mm (front panel) , 400.0mm x 125.0mm (back panel) |
Layout | US Standard or Other customized layout |
Trackball lifespan | more than 5 million actuations |
Key Size | 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for enter key, 14.0mm x 100.0mm for space bar. |
Protection Level | IP65 |
Operation Temperature | -20ºC~+ 60º C |
Main Features
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP65 protection from top panel, top stainless steel plate with threaded bolts for easy tightly mounting to enclosure or panel.
An excellent tactile feel with full-long travel switches and allow users to achieve fast and accurate data input without any noise. With firm tactile perception for comfortable operation
Internet friendly key layout, key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which cannot be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
Complete electronic modules including controller in close consultation with our customers are available.
PS/2, USB connection plug and play with PC via PC existing OS driver, no needing of install separate driver.
The numeric keypad between keyboard and trackball is available with encryption module supporting DES/TDES for bank usage of CDM/ATM.
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 30mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024:2010
Lifespan > 5 years
Switch Contact Material: Carbon-on-Gold key switch technology PCB.
Interface: PS2, USB available
If needed, numeric keypad is available to be with encryption electronics controller supporting DES/Triple DES.
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
ENVIRONMENTAL ADAPTABILITY
Operating temperature:-20oC to +60oC
Storage temperature: -30oC to +70oC
Operating RH: 30-90%
Atmospheric pressure: 60-106Kpa.
Saline mist: 96 hours, IEC 60512-6
Damp heat test at + 40oC: 21 days, IEC 60512-6
Dry heat test at + 85oC: 10 days, IEC 60512-6
RELIABILITY
RoHS Compliant, CE and FCC, ESD
Protection Level: IP65(front panel)
Vandal resistant IK09
Key Lifespan >5 million actuations
MTBF >20000H
MTTR<30min
