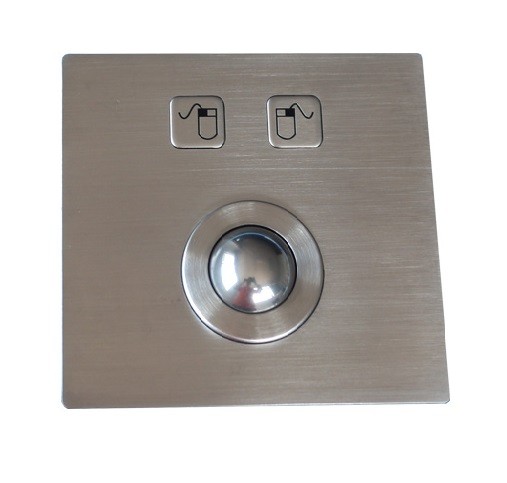

waterproof industrial micro wired stainless steel optical trackball mouse
MODEL NO.: K-TEK-B95-25-OTB-UT-DWP
DESCRIPTION: IP67 dynamic rated vandal proof stainless steel optical trackball with IP65 dynamic sealed & ruggedized stainless mouse buttons and IP68 dynamic rated washable 25.0mm stainless steel optical trackball module with +800 DPI resolutions for fast and accurate fixing cursor position with extreme smooth operation without any noise, optical trackball module protected and shielded by stainless steel housing, 2 sealed stainless steel mouse buttons designed for right & left clicking, with top panel mounting solution. one complete silicone rubber alone the rear stainless steel plate for easy mounting & sealing tightly with cabinet. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water,oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSIONS: 95.0mm x 90.0mm (top panel)
MAIN FEATURE
Emulates most popular mice - uses existing mouse driver and mouse software Interfaces for most workstations and computers.
All Metal Mechanical provide for rugged, smooth, long lasting and no noisy operation.
Optical Encoders provide high resolution more than +800 DPI, fast and reliable positioning data.
Available 25mm diameter Stainless steel for smooth, quick and durable operation and precise cursor positioning.
Rate Sensitive Dynamic Resolution provides for accelerated movement of the cursor when the ball is moved fast, while retaining one-pixel positioning accuracy when the ball is moved slowly.
Can be mounted horizontally, and vertically or any other directions.
No metal bearings inside, operation is very smooth, and easy without any noise.
Mechanical: Key 2 keys, quality brushed stainless steel
Key top style: Non-protuberant rectangular Keys
Front Plate: Quality brushed stainless steel
Key Travel: 0.45mm
Ball diameter: 25.4mm/1.0'' (19mm, 25mm, 36mm 40mm also available)
Key switch lifespan: more than 1 Mio actuations
Track ball lifespan: > 5 years

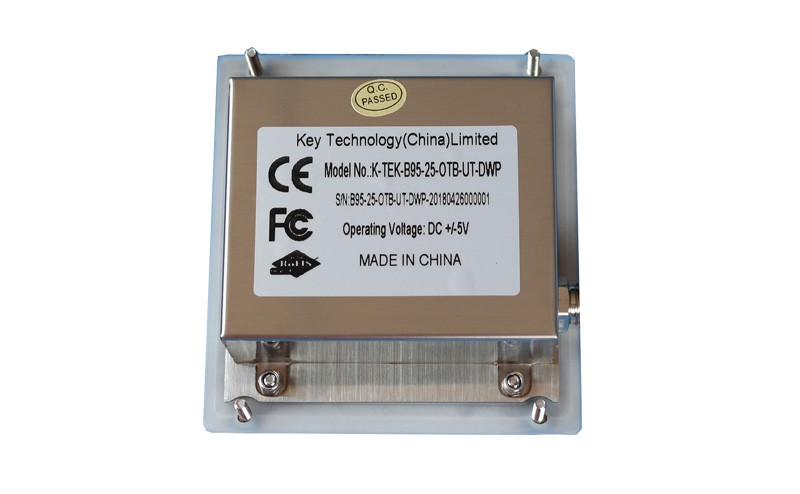

Back Metal Cover: Rear side integrated electronics protected by a metal cover
Actuation Force: 3.2N+/-0.1N
Mounting Rack: Stainless steel
Dimension Dimensions: with 25mm track ball,
Front plate (W x H): 95.0mm x 90.0mm
Interface: PS2, USB are available, Y type cable with ports of PS2 and USB
Power supply: +5V DC +/-5%
Protection level: IP67 (dynamic), IK09
EMC Standard: EN 55032:2015, EN 55035:2017
Power consuming ≤1.00W(dynamic) ≤0.2W(static)
Contact Material: Gold-on-Gold
Environmental Operating temperature: -20ºC~+ 60º C
Storage temperature: - 30ºC~+ 70ºC
Operating RH: 30~90%
Atmospheric pressure: 60~106Kpa.
Certificates: RoHS compliant, CE and FCC certified. ESD
MTBF >20000h
MTTR< 30min
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed).
Packing Details: Each unit to a suitable brown box, suitable brown boxes to a standard export carton.
