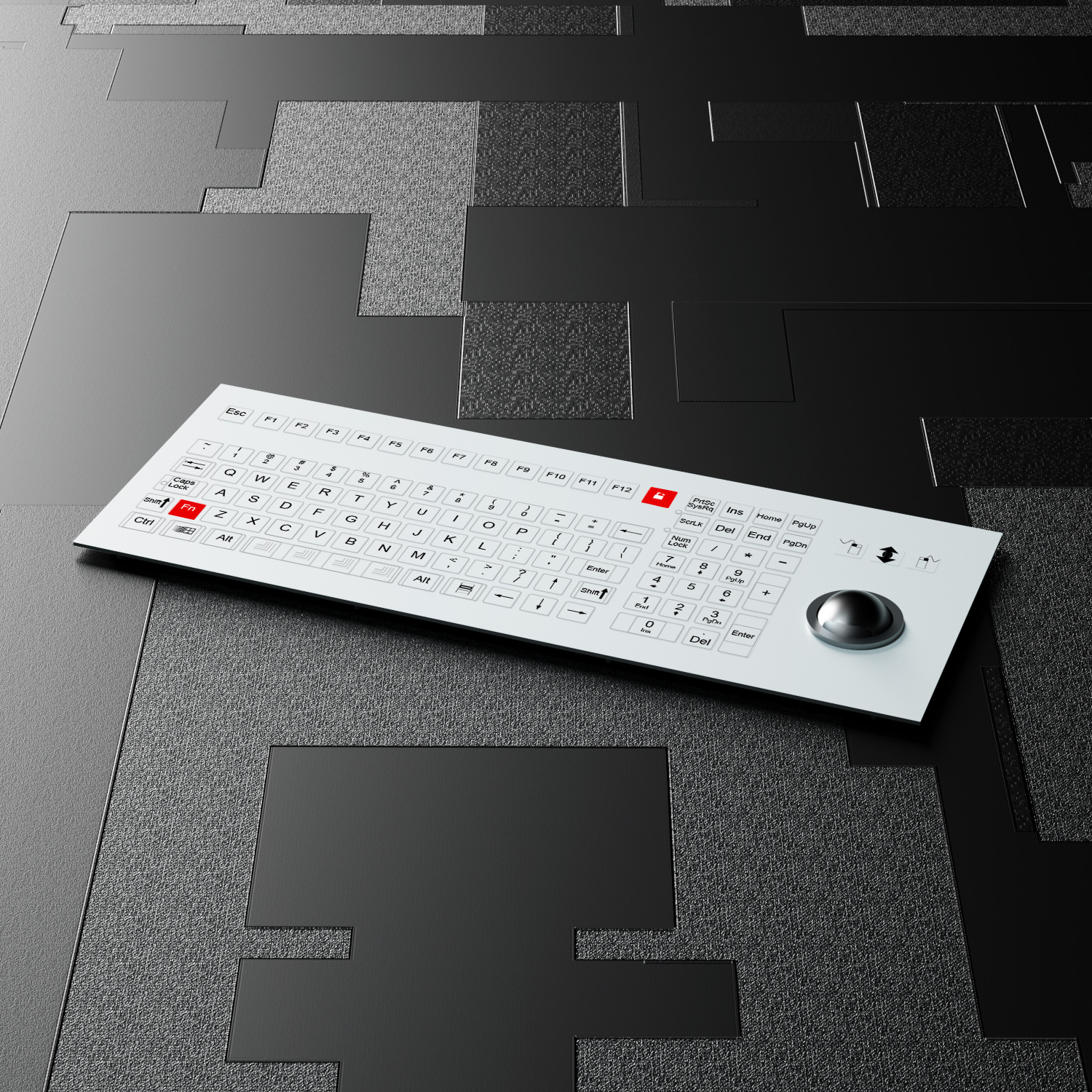

waterproof membrane medical grade flat keys keyboard with trackball
Description:106 keys IP65 dynamic rated membrane industrial keyboard with full keyboard functionalities with integrated numeric keypad
and function keys on the upper line, IP68 dynamic rated washable 38.0mm optical trackball module with 800 DPI resolutions for fast and
accurate cursor position,totally sealed and ruggedized industrial PCB with OMRON switch technology with short stroke 0.45mm with extremely
good tactile feeling for reliable data input, with FN+LOCK combination key for easy cleaning via lock/disable the entire keyboard without needing
to take the keyboard from PC, surface mounted extremely flush with anti-microbial functionalities, the fonts printed on the film underneath will
never fade, durable and scratch-proof polyester withstand to most chemicals and liquids under the harshest environments, with ruggedized
brushed stainless steel back plate with mounting studs, top panel mounted.
Dimensions: 410.0 mm x 160.0 mm (front panel)
MECHANICAL DATA | |
Number of Keys | 106 keys (including 3 mouse buttons) |
Key switch Technology | OMRON switch technology with short stroke 0.45mm for stable and accurate data input |
Actuation Force | 2.0N±0.2N (press point) |
Key Travel | 0.45±0.05mm |
Key switch Lifetime | 1 mil. operations |
Mounting Type | Top panel mounting. |
Colors | 3 (white, black, grey) |
G.W. | 1.60KGs |
Key Dimensions (print area) | 14.0mm x 14.0mm |
Trackball | IP68 washable 38mm stainless steel optical ball, or silver hardened resin optical ball |
Trackball resolutions | 800DPI |
ELECTRICAL DATA | |
Supply Voltage | DC +5V±5% |
Current Rating | 100mA |
EMC Standard | EN 55032:2015 EN 55035:2017 |
Lifespan | > 5 years |
Interface | PS2, USB available |
OS | All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed). |
ENVIRONMENTAL ADAPTABILITY | |
Operating temperature | -20℃ to +65℃ |
Storage temperature | -30℃ to +75℃ |
Operating RH | 100% |
Atmospheric pressure | 60-106Kpa |
Saline mist | 96 hours, IEC 60512-6 |
Damp heat test at +40℃ | 21 days, IEC 60512-6 |
Dry heat test at +85℃ | 10 days, IEC 60512-6 |
RELIABILITY | |
RoHS, CE, FCC | |
Protection Level | IP65 dynamic |
Key Lifespan | >1 million actuations |
MTBF | >20000H |
MTTR | <30min |
APPLICATIONS | Industrial, marine, food and beverage, processing factory, medical and pharmaceutical, numerical control machine etc. |
