waterproof stainless steel metal usb numeric led backlit LCD keypad

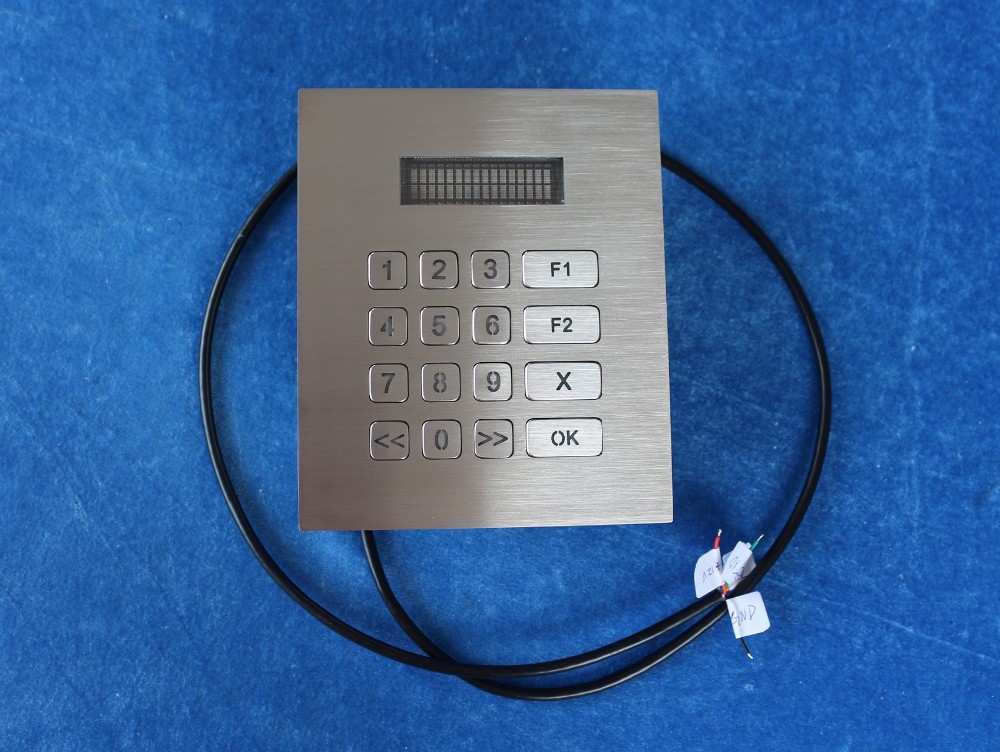

DESCRIPTION: 16 keys IP67 dynamic waterproof vandal proof Stainless Steel industrial keypad with RS232 interface, VFD display integrated, industrial electronics controller shielded and protected via stainless steel housing , industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, stainless steel key caps etched out via special professional way and filled with transparent epoxy for backlight out, with industrial backlight included,(red/blue/white/green) optional. Top stainless steel plate with 4 mounting holes for top panel mounting solution.
Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
DIMENSION: 134.0mm x 160.0mm (front panel)
MAIN FEATURE
Imposing stainless steel design, specially designed keypads meet the highest demands with regard to design, functionality, longevity and high protection level.
Stainless steel fascia and key-tops guard willful destruction, vandal-proof, against corrosion, weather-proof especially under extreme climatic conditions, water proof/dirt proof, operation under hostile environments.
Waterproof execution according to IP67 protection from top panel, top stainless steel plate with flat keyboard surface for easy cleaning.
An excellent tactile feel with short stroke switches and allow users to achieve stable and accurate data input, with firm tactile perception for comfortable operation
key-tops are laser-etched in legends and characters for easy readability, long life to prevent lettering rub-off.
Metal keys are protected against twisting and levering which can not be dislodged from front, or defaced removing key covers.
Ease of customizing with multiple languages, to accommodate foreign or custom variants.
MECHANICAL DATA
Actuator/keys: 16 keys, 1.50mm thickness super quality SUS304 brushed stainless steel flat key.
Key top style: Non-protuberant rectangular keys, laser engraved & etched legends & raised braille on keys are available
Key Size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for function keys
Key travel: 0.45mm
Actuation Force: 2.0N+/-0.1N for key 14.0mm x 14.0mm (pressure point)
4.0N+/-0.1N for key 14.0mm x 28.0mm (pressure point)
Switch life: more than 5 million of operations.
Front Plate: 1.5mm thickness super quality brushed stainless steel

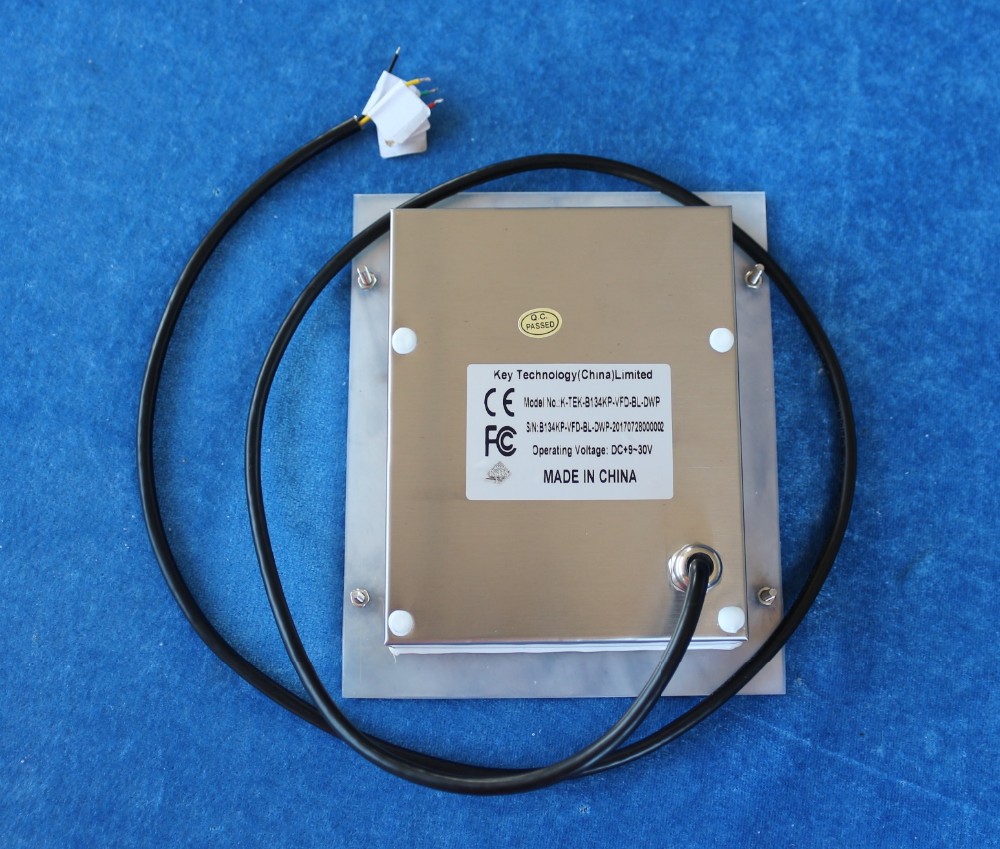

Back Plate: 1.5mm thickness super quality stainless steel
G.W.: 0.80KGs
Dimensions: 134.0mm x 160.0mm (front panel)

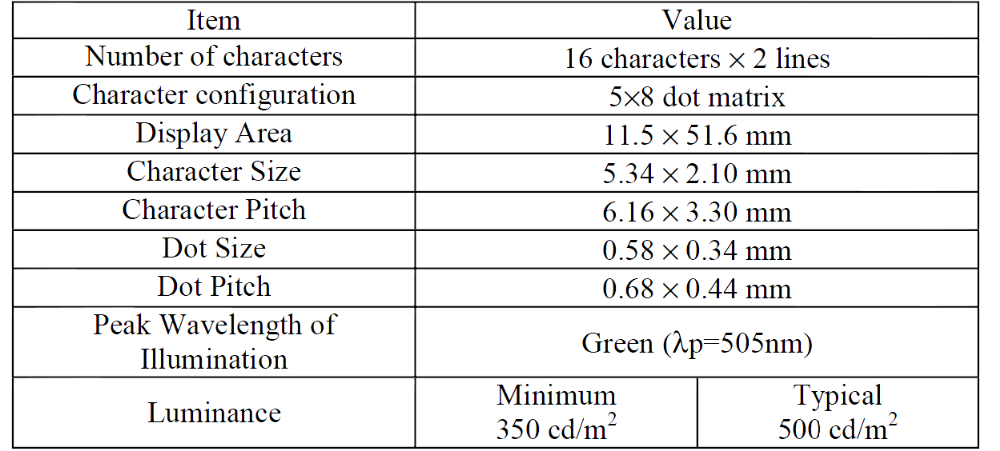

VFD SPECIFICATION
