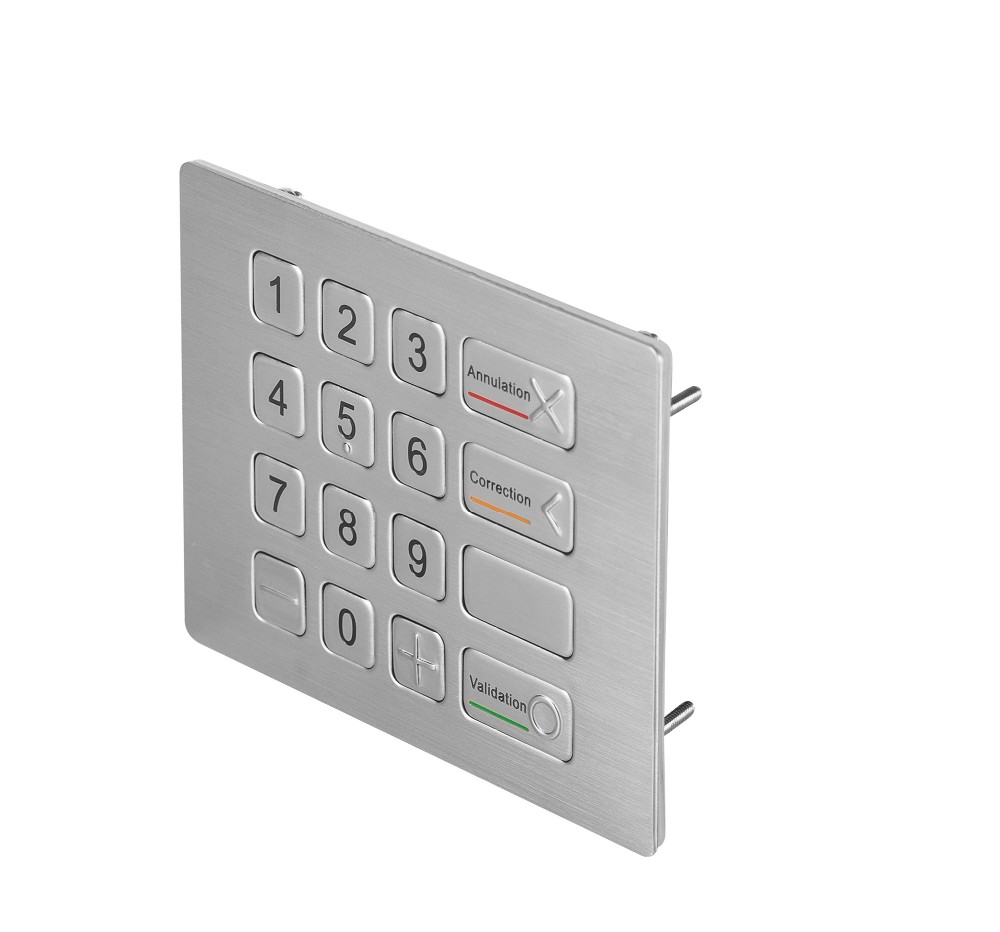

waterproof usb metal stainless steel atm kiosk numeric keypad 4x4
16 keys compact format IP67 dynamic water proof and vandal proof Stainless Steel industrial keypad with industrial electronics controller shielded and protected via stainless steel housing, industrial metal dome PCB with gold-on-gold key switch technology with short stroke 0.45mm with excellent tactile feeling for stable and accurate data input, Slim ultra thin design. With industrial backlight include (Red/blue/white/green optional), top stainless steel plate with welded studs and water-tigth gasket for easy mounting and tightening to enclosure or panel with top panel mounting solution. Which is good for outdoor application with direct rain and very harsh environments with humidity, much dynamic water, oil, dirt, salt mist etc, no rust risk and anti-salt spray corrosion.
Waterproof usb metal stainless steel atm kiosk numeric keypad 4x4 is one of our latest products, which is fully sealed keypads with excellent waterproof performance.
ELECTRICAL DATA
Supply Voltage: +5V DC +/-5%
Current Rating: appr. 20mA
EMC Standard: It is compliance with the council IEC 61000-4-2:2008;IEC 61000-4-3:2006+AI:2007+A2:2010;IEC 61000-4-4:2004
EMI: EN 55022: 2010
EMS: EN 55024: 2010
Lifespan > 5 years
Switch Contact Material: Gold-on-Gold key switch technology PCB.
Interface: PS2, USB, RS232, RS485 available
OS: All Windows, Linux, Unix, Mac OSX, Vxworks, Android, (U-cos--To be confirmed)

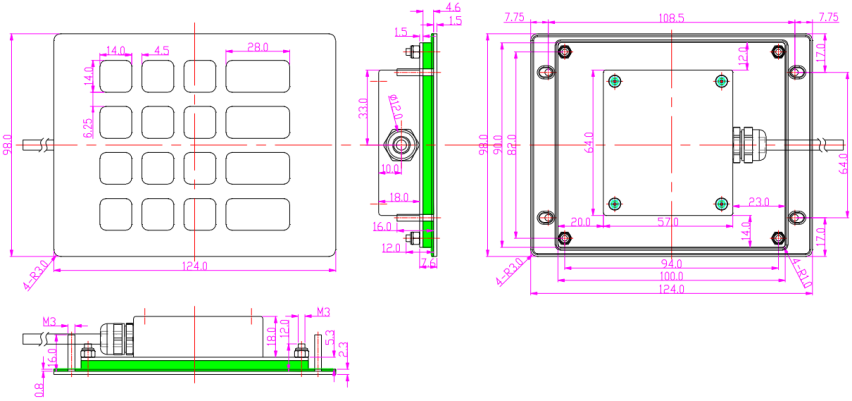

MECHANICAL DATA
Front plate: Super quality SUS304 brushed stainless steel
Back plate: Super quality SUS304 stainless steel
Actuator/Key: 16 keys, super quality SUS304 brushed stainless steel
Key top style: protuberant rectangular keys, with laser engraved and etched legends and raised dots available.
Key size: 14.0mm x 14.0mm for normal keys, 14.0mm x 28.0mm for rectangle keys.
Switching material: Gold-on-Gold.
Actuation Force: 2.0N+/-0.1N for key 14.0mm x 21.0mm (pressure point)
Key Travel: 0.45mm.
Key life: more than 5 million of operations
